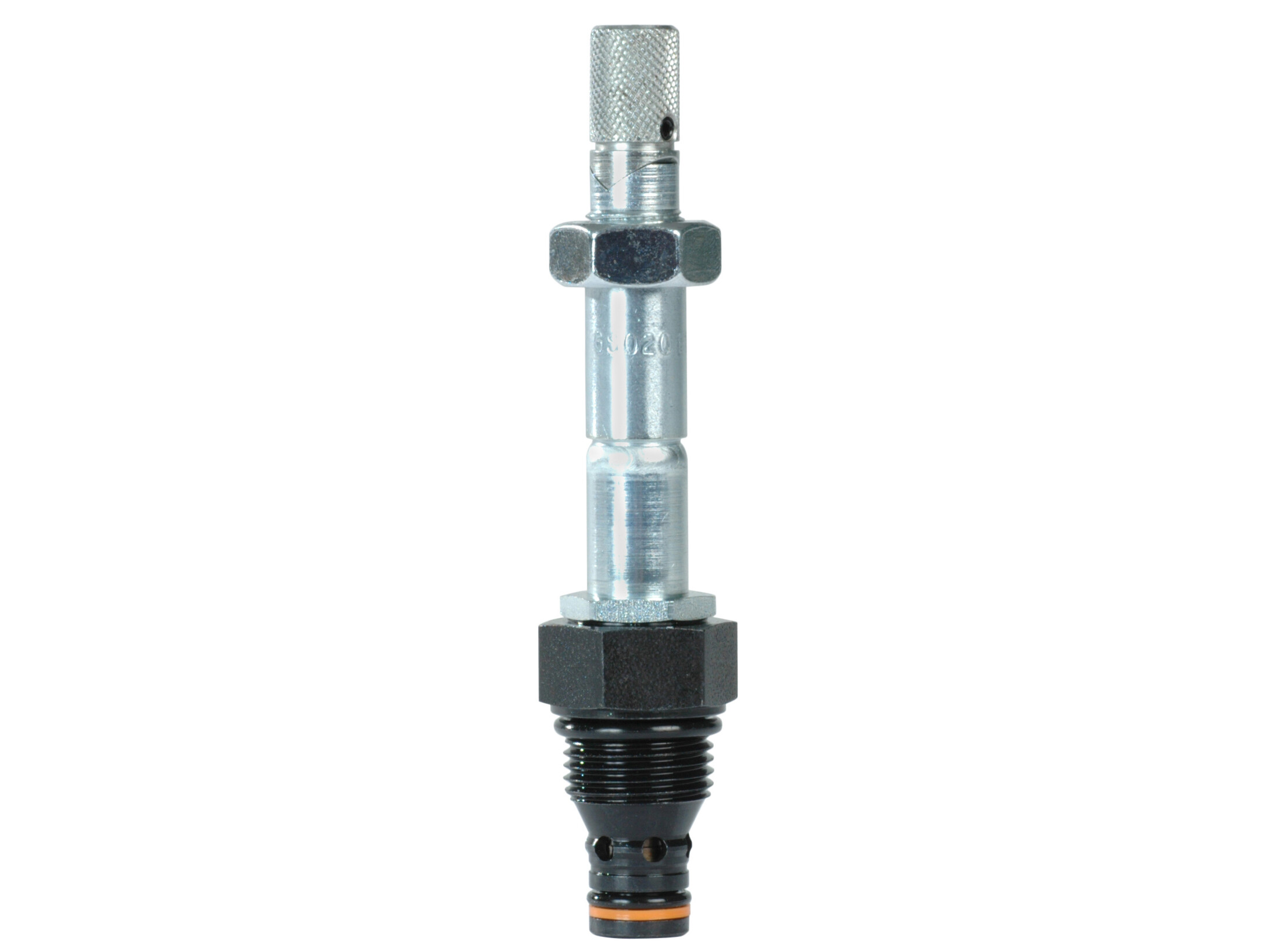

Solenoid cartridge valve NC.19 With manual override
2-way 2 position, normally closed. Free flow from 1 to 2 and restricted flow from 2 to 1 when solenoid is energized.
De-energized the spring holds the pilot against its seat. Pressure on the side port behind the poppet holds it firmly closed. Pressure on the nose port lifts and opens the poppet.
Energized the pilot is pulled by the armature lifting it off its seat. Side port pressure creates pilot flow across the poppet and a pressure imbalance which allows it to lift. Nose port pressure seats the poppet but allows restricted oil flow.
Features
- High flow capacity with reduced space requirements
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O-rings;Symmetrical coil can be reversed without affecting performance.
- Interchangeable with 04 and 06 series poppet valves;
Symmetrical coil can be reversed without affecting performance.
Partnumber:
GS02-01-10N
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Manual override, Solenoid
Brand Name
Hydraspecma
Cavity
CAV02-2
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
19 lpm
Manual operated
Yes
Number of ways/positions
2/2
Oil viscocity recommended
15 - 50 cSt
Pressure max.
210 bar
Sealing material
NBR
Solenoidtype
CCS
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
30 Nm
Valve type
NC - Normally closed
Förpackningsstorlek
0 pcs
Streckkod
5704295031637
Bruttovikt
0,14 Kg
Nettovikt
0,14 Kg
Ursprungsland
USA
Intrastat artikelkod
84812010
2-way 2 position, normally closed. Free flow from 1 to 2 and restricted flow from 2 to 1 when solenoid is energized.
De-energized the spring holds the pilot against its seat. Pressure on the side port behind the poppet holds it firmly closed. Pressure on the nose port lifts and opens the poppet.
Energized the pilot is pulled by the armature lifting it off its seat. Side port pressure creates pilot flow across the poppet and a pressure imbalance which allows it to lift. Nose port pressure seats the poppet but allows restricted oil flow.
Features
- High flow capacity with reduced space requirements
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O-rings;Symmetrical coil can be reversed without affecting performance.
- Interchangeable with 04 and 06 series poppet valves;
Symmetrical coil can be reversed without affecting performance.
