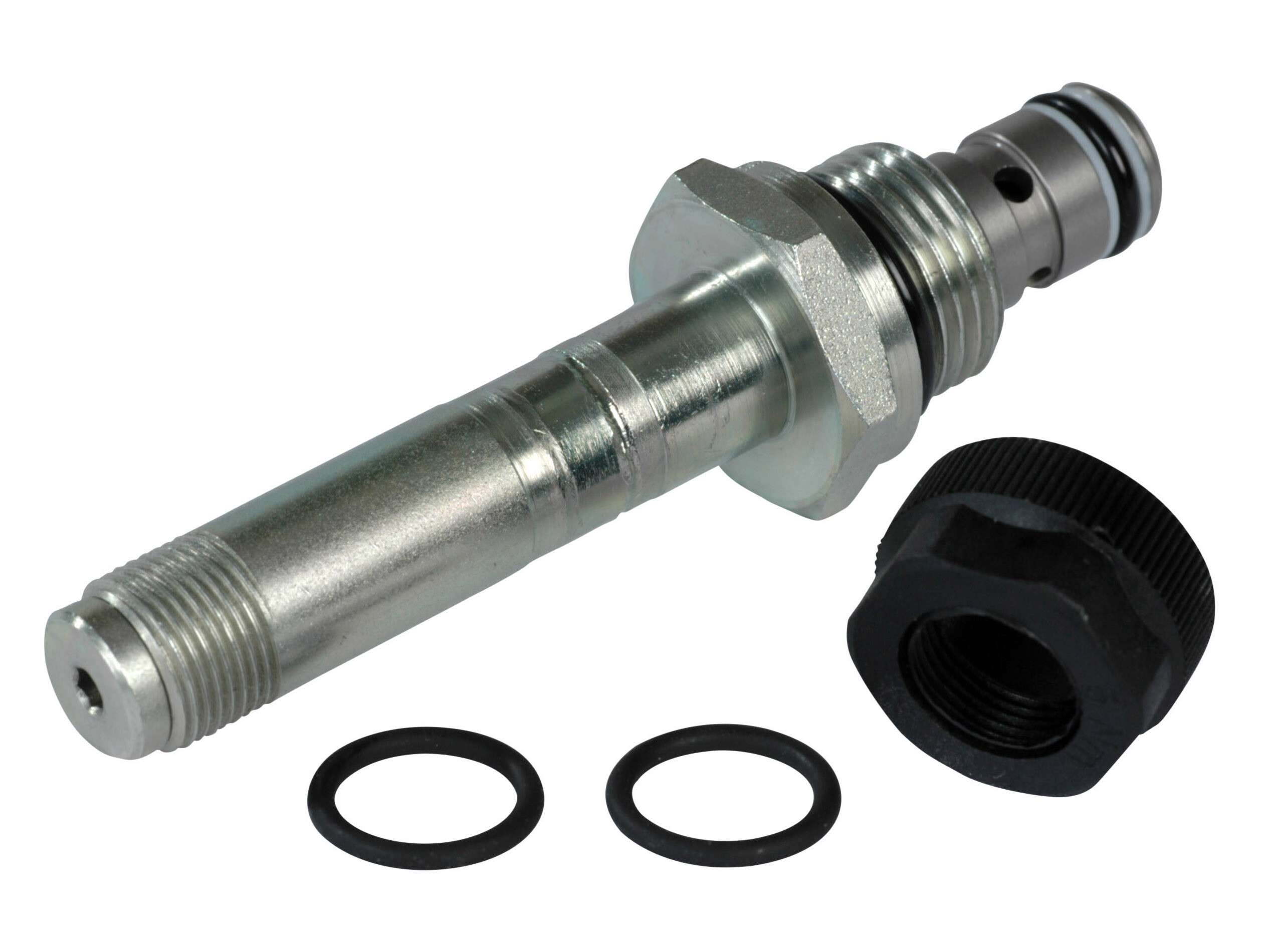

Solenoid Valve 2/2 16l/m NC SVP08-CDB-00-00-B-00
This is a 2-way, 2-position, poppet type, direct acting, normally closed, bi-directional solenoid valve. In its de-energized condition, flow is blocked in both directions. Leakage in either direction is kept to a minimum due to the poppet design. When energized, flow can take place from port 2 to 1 and from 1 to 2. These valves come standard with a push pin manual override.
These valves can be used to hold loads in position or interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition. They do not suffer from momentary opening due to shock pressures.
Varenummer:
805343619
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Activation
Solenoid
Brand Name
Danfoss
Cavity
SDC08-2
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
25 lpm
Manual operated
No
Model code
SVP08-CDB-00-00-B-00
Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
230 bar
Sealing material
NBR
Solenoidtype
M13 - R13
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
35 - 40 Nm
Valve type
NC - Normally closed
Pakke str.
0 pcs
Stregkode
5704334392859
Brutto vægt
0,95 Kg
Netto vægt
0,95 Kg
Oprindelsesland
Intrastat varekode
84812010
This is a 2-way, 2-position, poppet type, direct acting, normally closed, bi-directional solenoid valve. In its de-energized condition, flow is blocked in both directions. Leakage in either direction is kept to a minimum due to the poppet design. When energized, flow can take place from port 2 to 1 and from 1 to 2. These valves come standard with a push pin manual override.
These valves can be used to hold loads in position or interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition. They do not suffer from momentary opening due to shock pressures.
