Solenoid valve 50LPM NO HSVP10-ODB-00-00-P-00

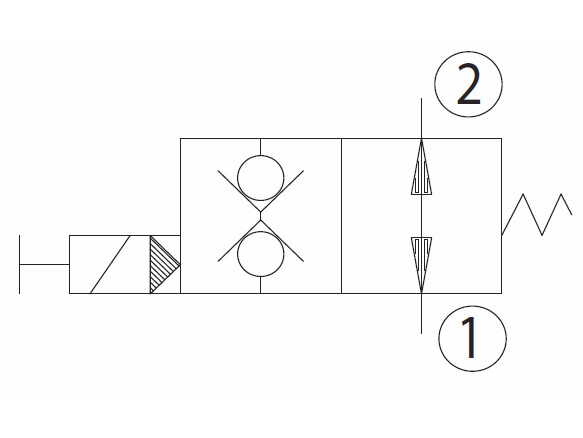

This is a normally open, poppet-style 10-size solenoid valve. When de-energized, the valve allows free flow from 2 to 1 or 1 to 2. When energized, the valve’s poppet is seated, and flow is blocked in both directions.



Applications:

The HSVP10-ODB is designed for high pressure, low leakage applications and can be used to control the advance and retract of single acting and double acting cylinders. The valve can also be used to lock pressure in a group of cylinders.

Artikelnummer:
11158119

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Coil H16-24D-29W-FL-DB
Artikelnummer: 11039515
Coil H16-12D-29W-DE
Artikelnummer: 11039516
Coil H16-24D-29W-DE
Artikelnummer: 11039517
Coil H16-12D-29W-DE-DB
Artikelnummer: 11039518
Coil H16-24D-29W-DE-DB
Artikelnummer: 11039519
Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
Artikelnummer: 11135684
Mix-N-Match Dual Parallel Body 1/2"DPL10-2-4B
Artikelnummer: 11137221
Housing SDC10-2-S3B steel 3/8
Artikelnummer: 11143048
Housing SDC10-2-S4B steel 1/2 port
Artikelnummer: 11143049
Housing SDC10-2--LG14B (1/2)
Artikelnummer: 922514110
Housing SDC10-2--LG24B (1/2)
Artikelnummer: 922514210
HOUSING, SDC10-2-DG3B (3/8) SDC10-2-DG3B (3/8)
Artikelnummer: 922516910
HOUSING, SDC10-2-DG4B (1/2) SDC10-2-DG4B (1/2)
Artikelnummer: 922517010
Activation
Solenoid

Brand Name
Danfoss

Cavity
SDC10-2

Contamination level max.
20/18/14 - ISO 4406

Filter built-in
No

Flow rate nominal LMin
50 lpm

Manual operated
No

Model code
HSVP10-ODB-00-00-P-00

Number of ways/positions
2/2

Oil viscocity recommended
12 - 54 cSt

Pressure max.
350 bar

Sealing material
Polyurethane

Solenoidtype
H16

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
70 Nm

Valve type
NO - Normally open
Förpackningsstorlek
0 pcs

Streckkod
5704334536413

Bruttovikt
0,30 Kg

Nettovikt
0,30 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

This is a normally open, poppet-style 10-size solenoid valve. When de-energized, the valve allows free flow from 2 to 1 or 1 to 2. When energized, the valve’s poppet is seated, and flow is blocked in both directions.



Applications:

The HSVP10-ODB is designed for high pressure, low leakage applications and can be used to control the advance and retract of single acting and double acting cylinders. The valve can also be used to lock pressure in a group of cylinders.
