    • Press. relief valve 40l/m 7-69bar (28) CP200-3-B-0-E-A-XXX

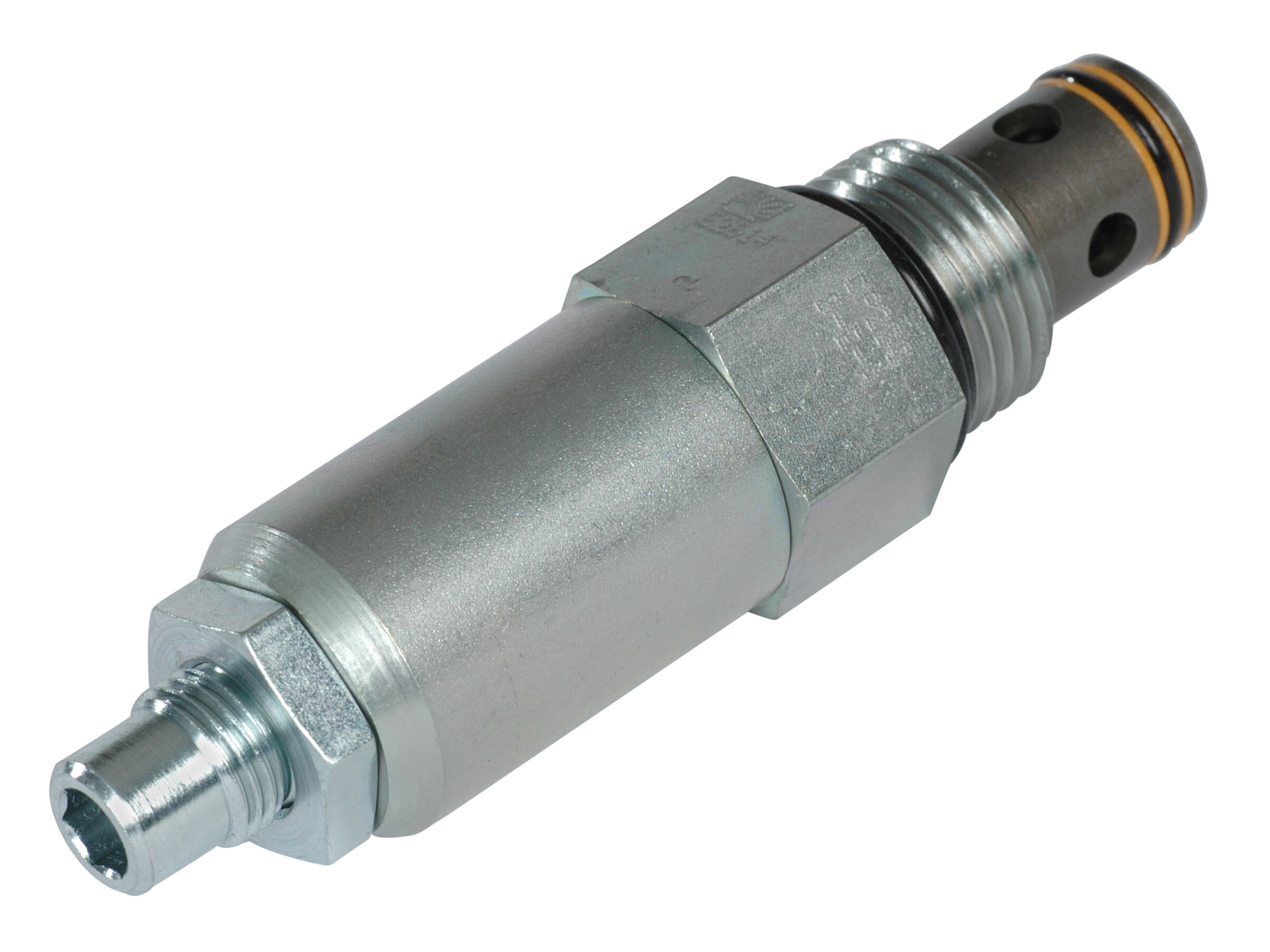

    Press. relief valve 40l/m 7-69bar (28) CP200-3-B-0-E-A-XXX

    This is a direct-acting poppet type relief valve that relieves from 1 to 2

    Artikelnummer:
    131834.000
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
    Artikelnummer: 11135684
    Mix-N-Match Dual Parallel Body 1/2"DPL10-2-4B
    Artikelnummer: 11137221
    Housing SDC10-2-S3B steel 3/8
    Artikelnummer: 11143048
    Ventilhus Comatrol SDC10-2-S4B steel 1/2 port
    Artikelnummer: 11143049
    Housing SDC10-2--LG14B (1/2)
    Artikelnummer: 922514110
    Ventilhus Comatrol SDC10-2--LG24B (1/2)
    Artikelnummer: 922514210
    Ventilhus Comatrol SDC10-2-DG3B (3/8)
    Artikelnummer: 922516910
    Ventilhus Comatrol SDC10-2-DG4B (1/2)
    Artikelnummer: 922517010
    KIT SEAL - BUNA-N #
    Artikelnummer: 120015
    Brand Name
    Danfoss
    Cavity
    SDC10-2
    Contamination level max.
    20/18/14 - ISO 4406
    Flow rate nominal LMin
    40 lpm
    Key size
    25.4 mm
    Model code
    CP200-3-B-0-E-A-XXX
    Oil viscocity recommended
    12 - 54 cSt
    Pressure max.
    250 bar
    Pressure setting max.
    69 bar
    Pressure setting min.
    7 bar
    Sealing material
    NBR
    Torque tightening
    41 - 47 Nm
    Förpackningsstorlek
    0 pcs
    Streckkod
    5704334468509
    Bruttovikt
    0,21 Kg
    Nettovikt
    0,21 Kg
    Ursprungsland
    ITA
    Intrastat artikelkod
    84812010

    This is a direct-acting poppet type relief valve that relieves from 1 to 2

    Product datasheet
