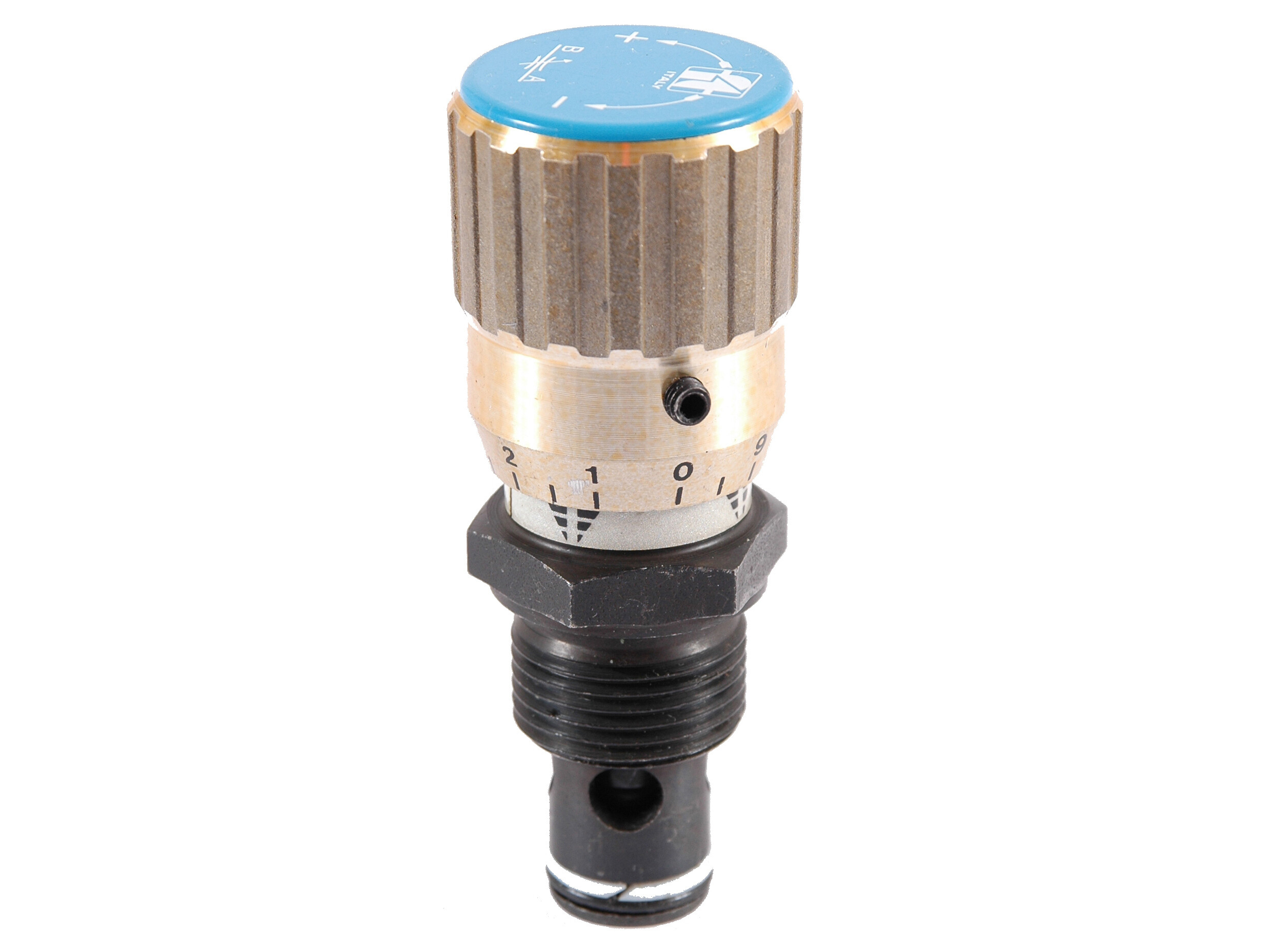

1/4 needle valve cartridge
FT267/2 is a double-acting flow control valve that allow for regulation of flow in both directions.
Artikelnummer:
FT267/2-14
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs

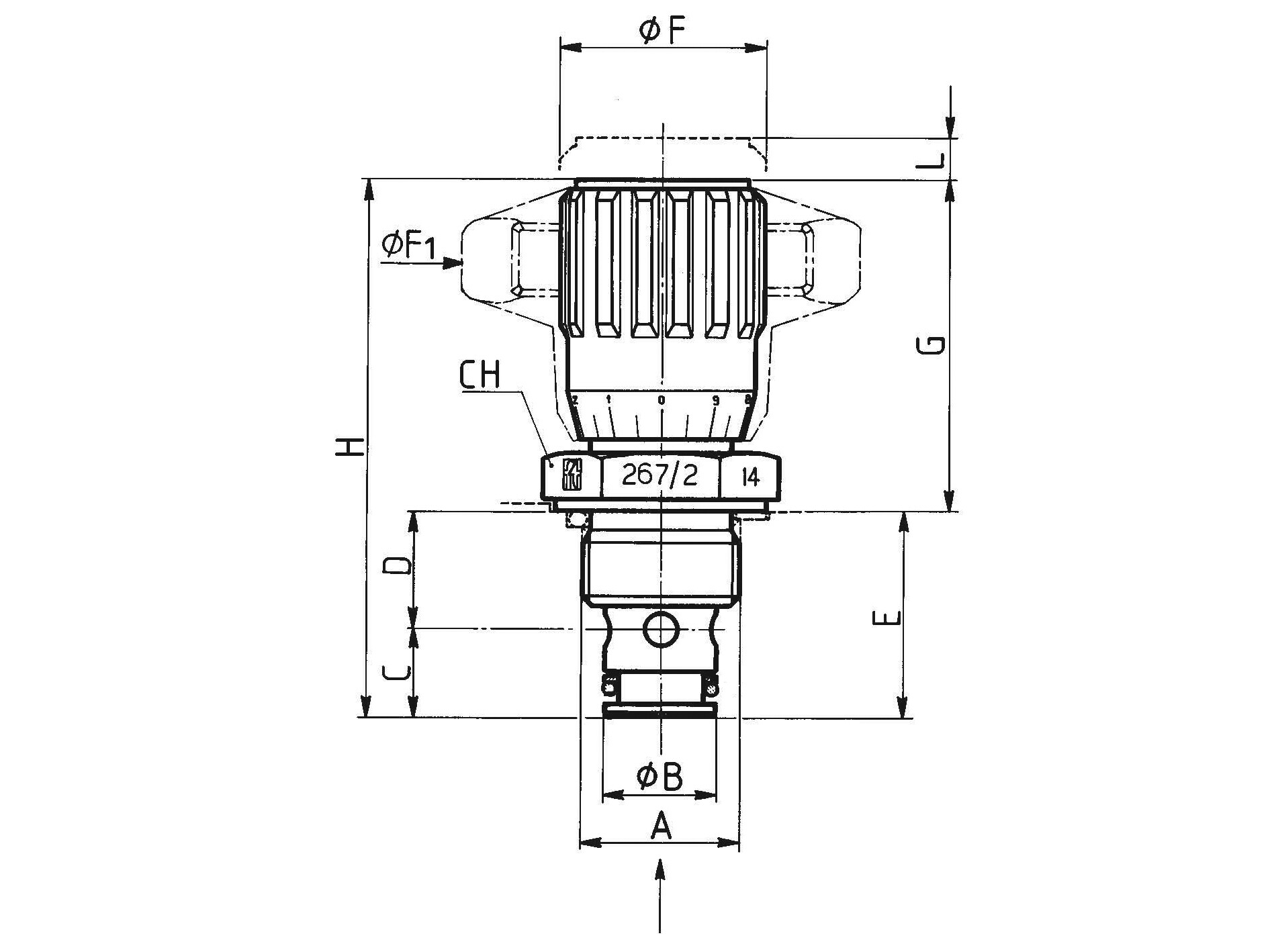

A
M20x1,5
B
14 mm
Brand Name
Tognella
C
11 mm
CH
27 mm
D
15,5 mm
E
26,5 mm

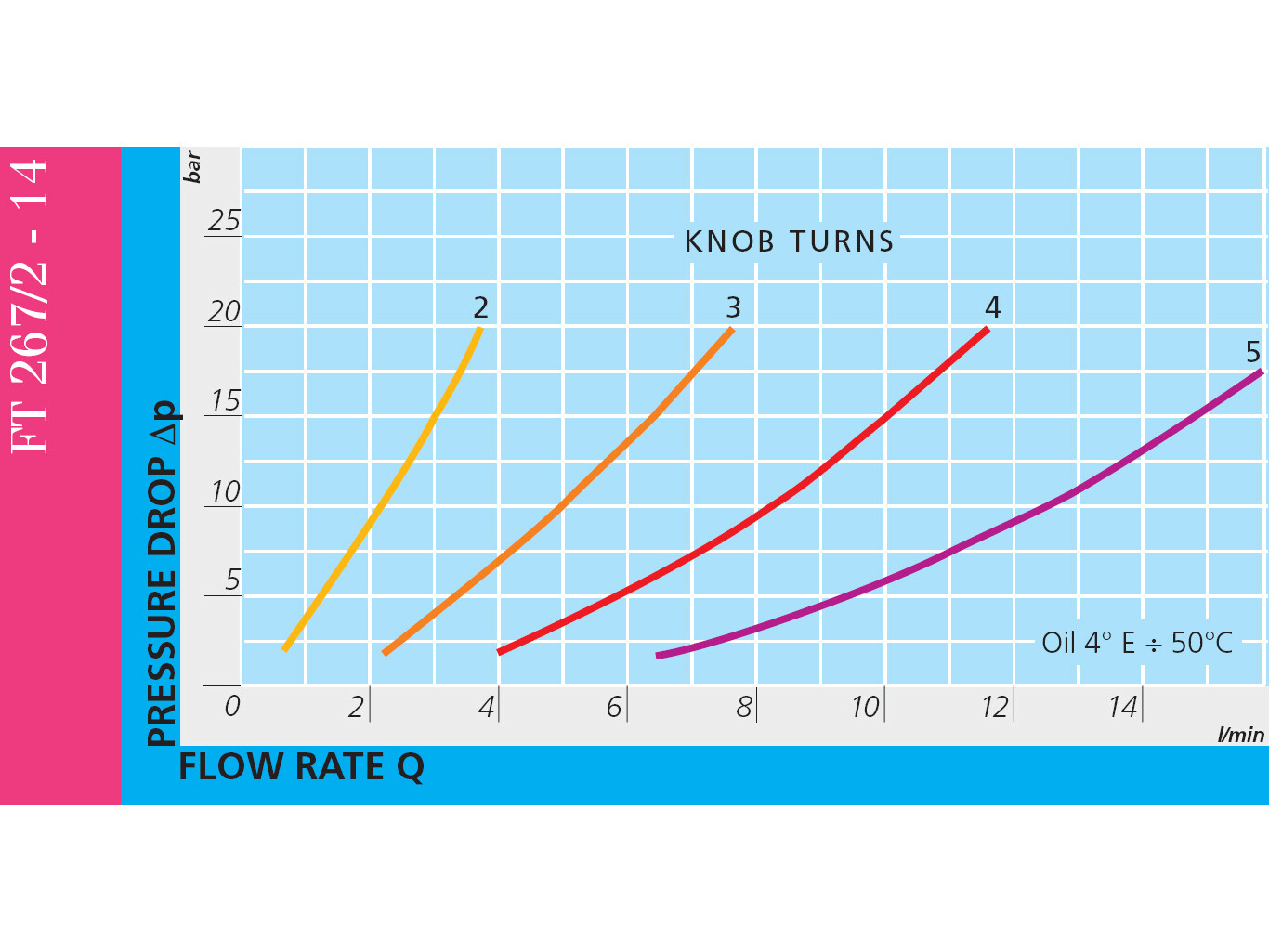

Flowrate nominal LMin
15 lpm
G
42,5 mm
H
68,5 mm
L
7 mm
Pressure compensated
No
Pressure max.
320 bar
Temperature max.
+100 °C
Temperature min.
-20 °C
Valve type
Throttlevalve
Förpackningsstorlek
0 pcs
Streckkod
5704295026657
Bruttovikt
0,13 Kg
Nettovikt
0,13 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
FT267/2 is a double-acting flow control valve that allow for regulation of flow in both directions.
