Press.comp Flow Cont. valve 50l/m (6-20l/m) VRC 06-E-3.00-00

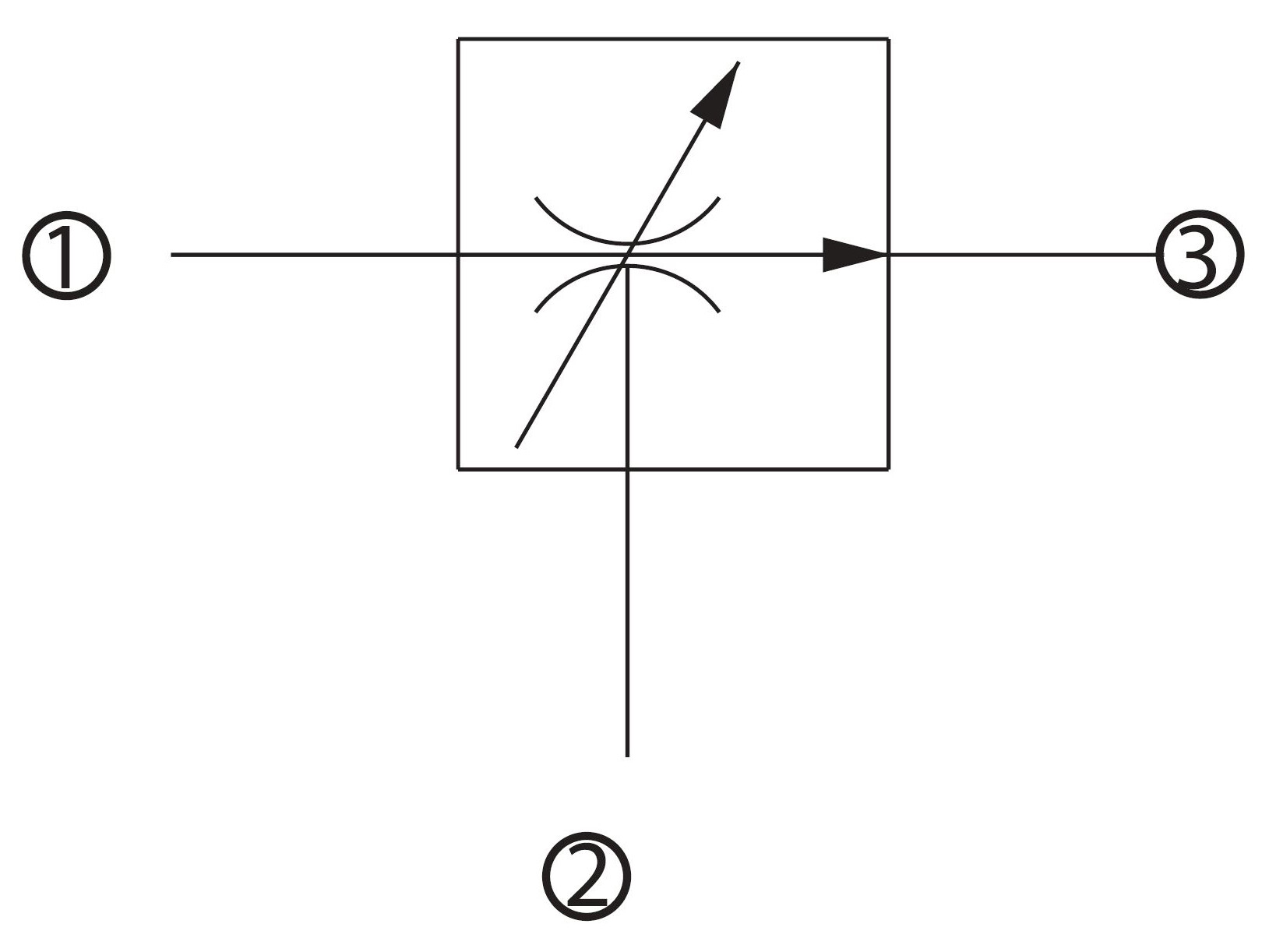

This is a partially adjustable, priority type, pressure compensated flow control valve, where the flow from port 3 will remain constant regardless of the pressure difference across the valve, while excess flow passes from port 1 to 2.
Flow enters at port 1 and passes across a fixed orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow. Port 1 then opens to port 2 to allow excess flow to pass. The regulated flow will always take priority and remains constant if the working pressure is higher in either port 2 or port 3.
Partnumber:
820104319
Package size:
0 pcs
Min. order quantity is:
1 pcs
Flow min. reglerat
6 lpm
Flöde in max.
50 lpm
Flöde max. reglerat
20 l/min
Flödeshastighet nominell LMin
30 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
NCS06/3
Modell kod
VRC06-E-3.00-00
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
315 bar
Tryckkompenserad
Yes
Åtdragning moment
45 - 50 Nm
Pakke str.
0 pcs
Stregkode
5704334467984
Brutto vægt
0,21 Kg
Netto vægt
0,21 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
This is a partially adjustable, priority type, pressure compensated flow control valve, where the flow from port 3 will remain constant regardless of the pressure difference across the valve, while excess flow passes from port 1 to 2.
Flow enters at port 1 and passes across a fixed orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow. Port 1 then opens to port 2 to allow excess flow to pass. The regulated flow will always take priority and remains constant if the working pressure is higher in either port 2 or port 3.
