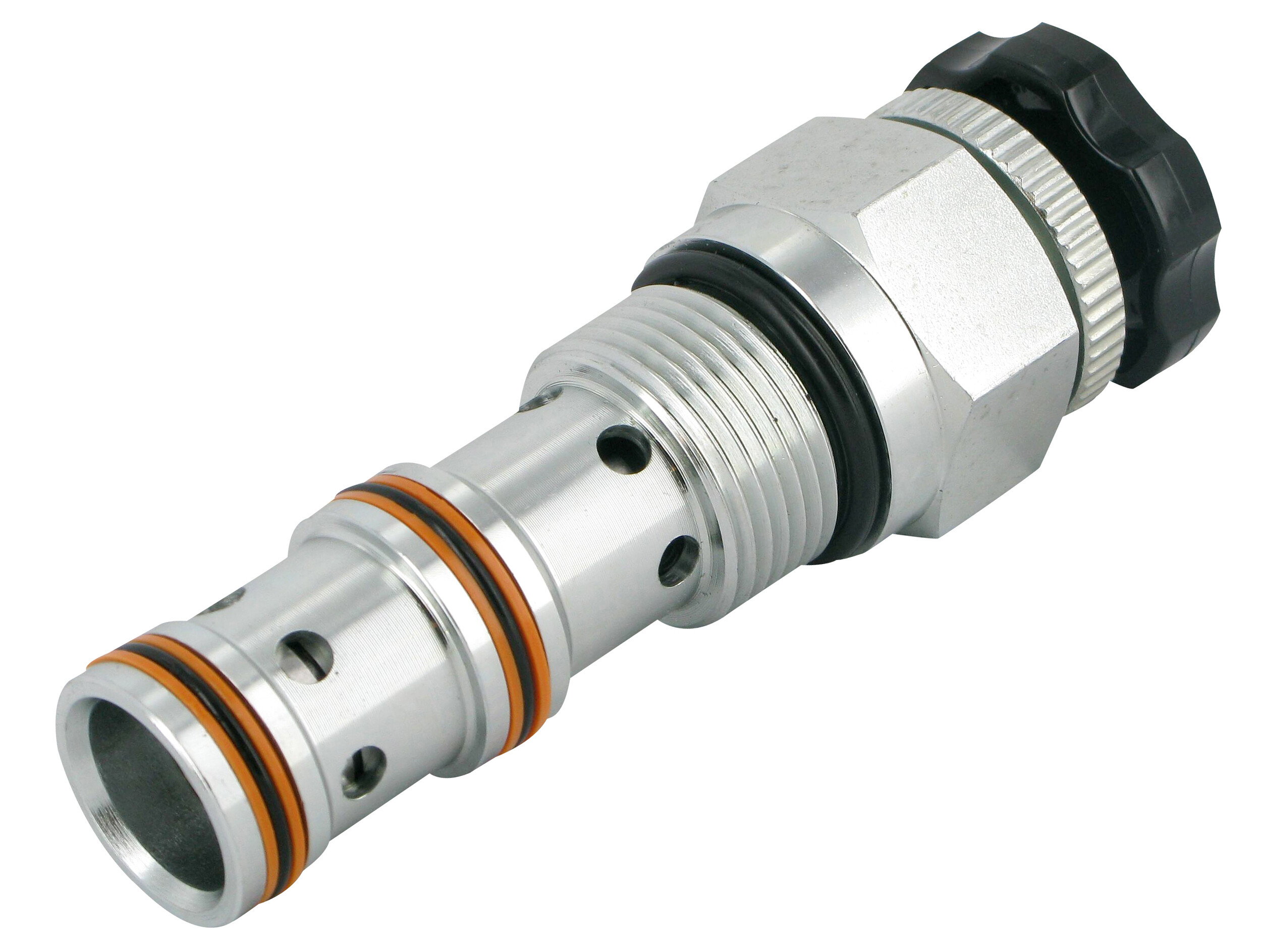

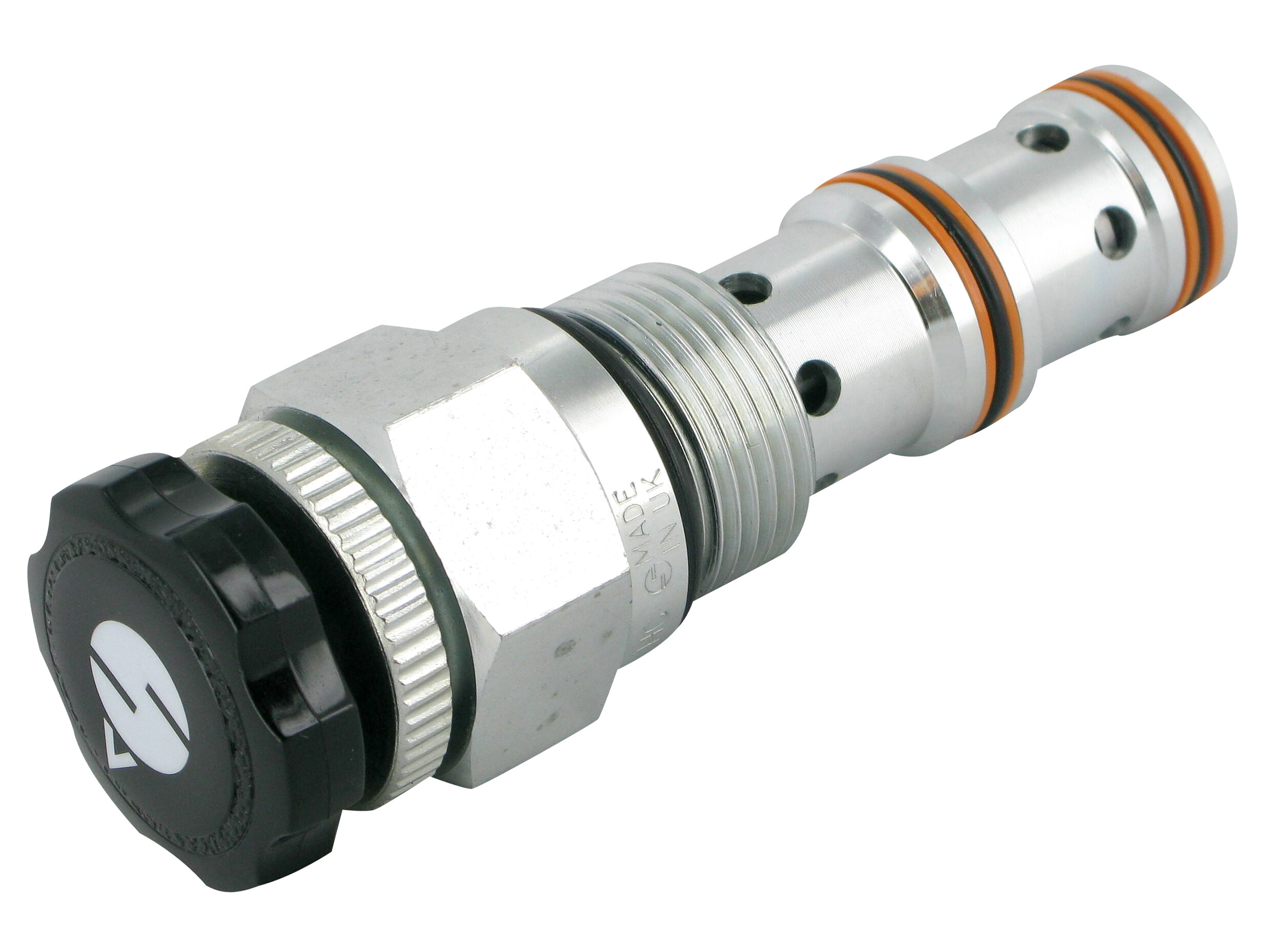

Flow control valve, Sterling

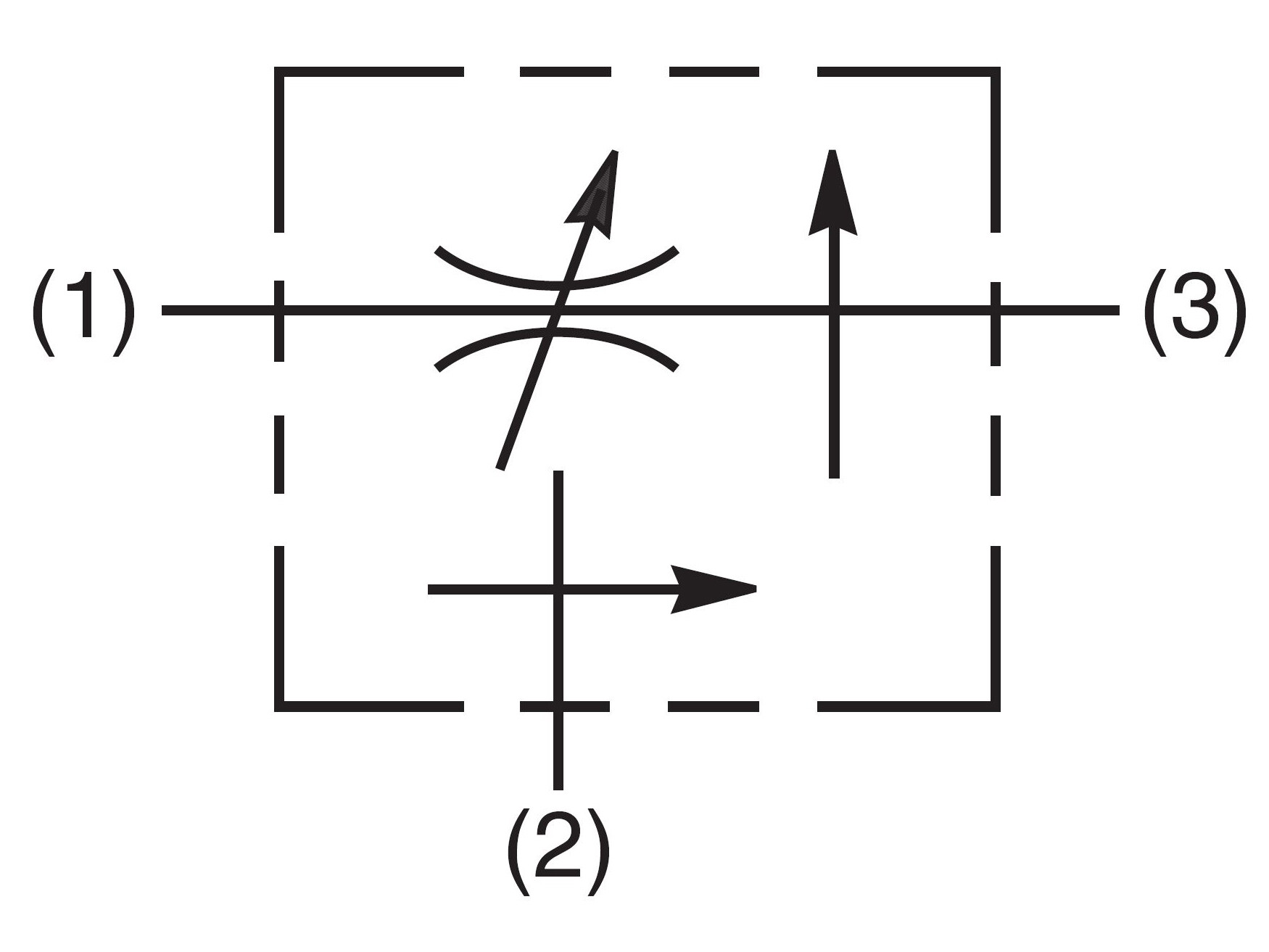

Priority Style, Pressure Compensated Flow Regulator Valve With Bypass.

Features

  • Free reverse flow function
  • High flow capacity
  • Used for systems requiring priority flow such as steering systems
  • Hardened working parts for maximum durability
  • Adjustable and tamperproof versions available
  • All external parts zinc plated

Varenummer:
J1A125WN

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Ventilblok, (3A)
Varenummer: 1-0014A
Ventilblok, Sterling (3A)
Varenummer: 1-0015A
Brand Name
Hydraspecma

Cavity
3A

Flow max. regulated
90 lpm

Flow min. regulated
10 lpm

Flow rate nominal LMin
150 lpm

Inlet flow min.
15 lpm

Oil viscocity recommended
6 - 420 cSt

Pressure compensated
Yes

Pressure max.
350 bar

Torque tightening
86 Nm
Pakke str.
0 pcs

Stregkode
5704295028965

Brutto vægt
0,46 Kg

Netto vægt
0,46 Kg

Oprindelsesland

Intrastat varekode
84812010

Priority Style, Pressure Compensated Flow Regulator Valve With Bypass.

Features

  • Free reverse flow function
  • High flow capacity
  • Used for systems requiring priority flow such as steering systems
  • Hardened working parts for maximum durability
  • Adjustable and tamperproof versions available
  • All external parts zinc plated
