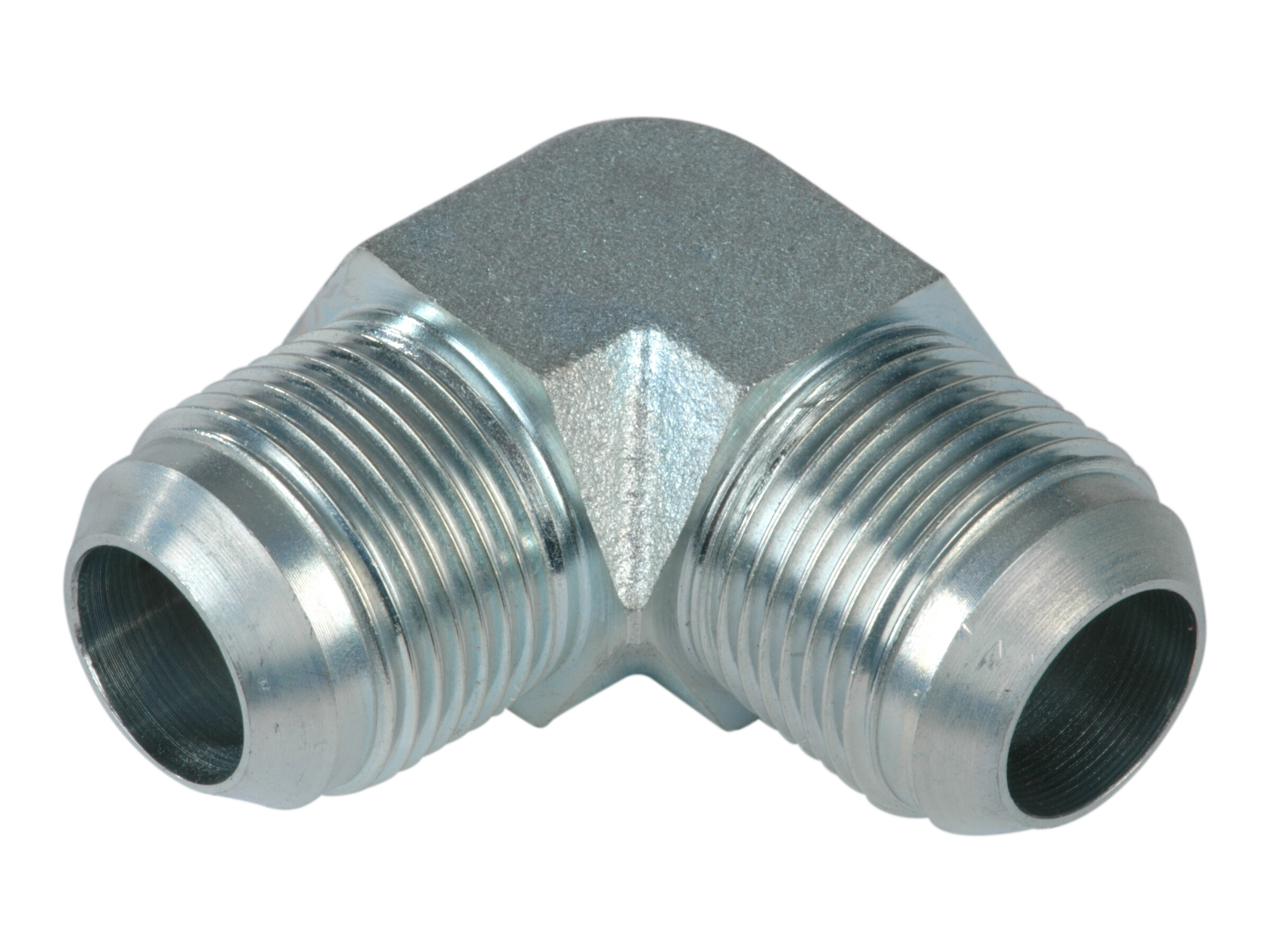

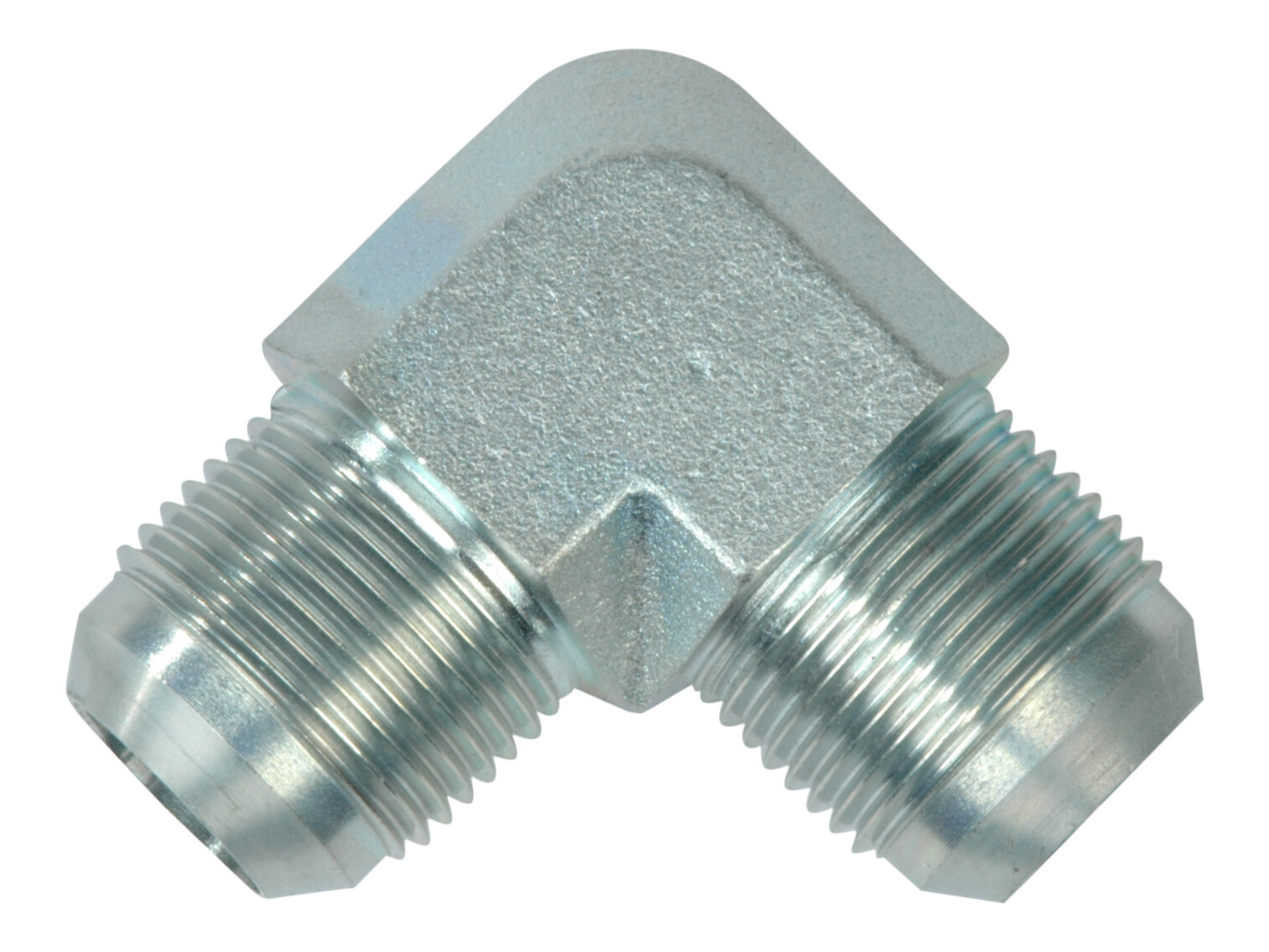

Elbow, 90 ° ¤

Partnumber:

CU-22

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (2)

Bushing

Partnumber: B-22

Omløber 1.3/16-12 JIC Nøglevidde 36mm

Partnumber: J-22

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

22 mm

Dimension B

44 mm

Dimension B1

44 mm

Dimension J

1.3/16-12 JIC

Dimension J1

1.3/16-12 JIC

Dimension T

22 mm

Dimension T1

22 mm

Material

Steel

Pressure max.

315 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.3/16-12 JIC

Package size

0 pcs

Barcode

5704295992921

Gross weight

0,34 Kg

Net weight

0,34 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Elbow, 90 ° ¤

Note: Opening 3D files requires a program that supports the file format
