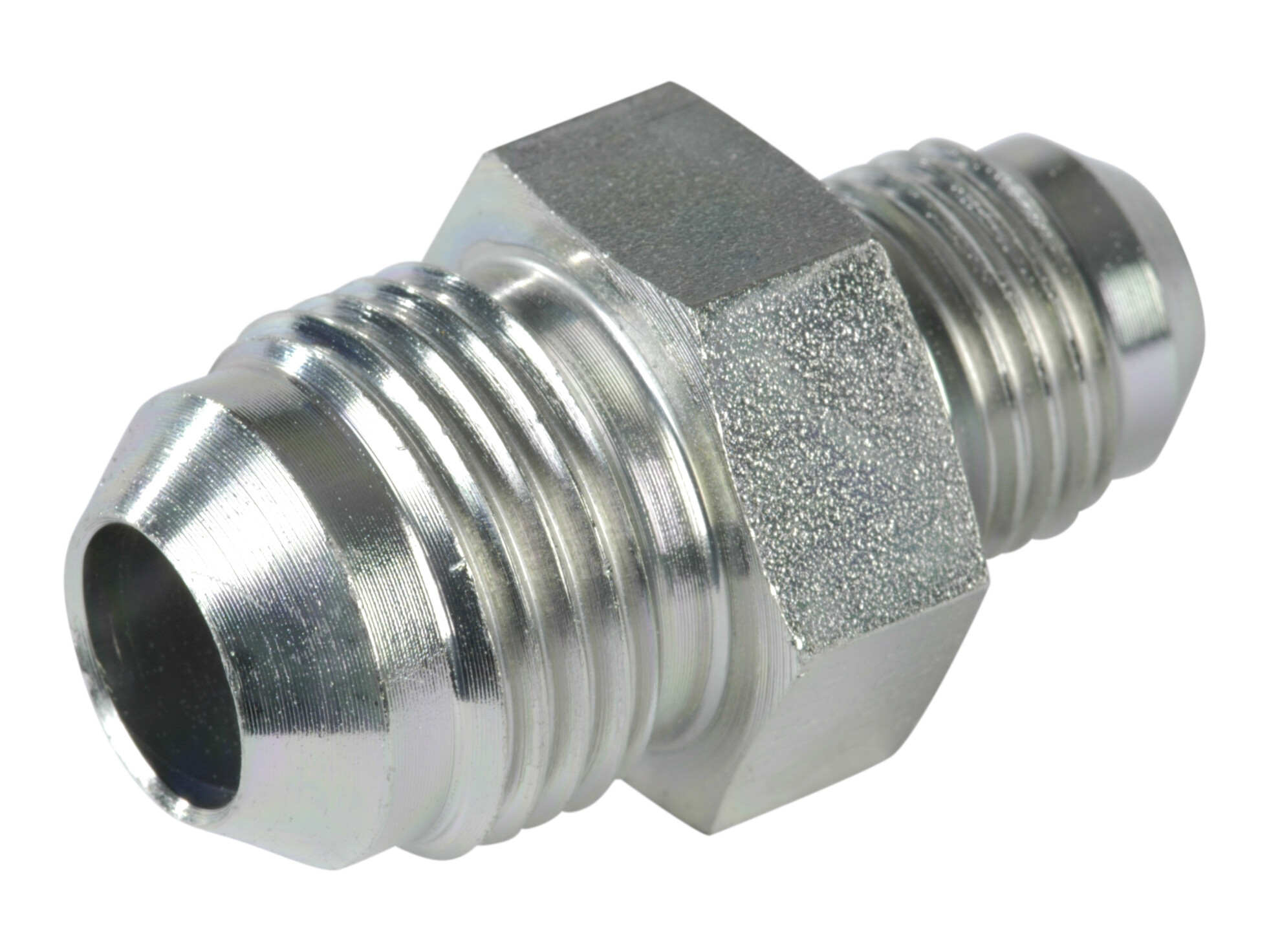

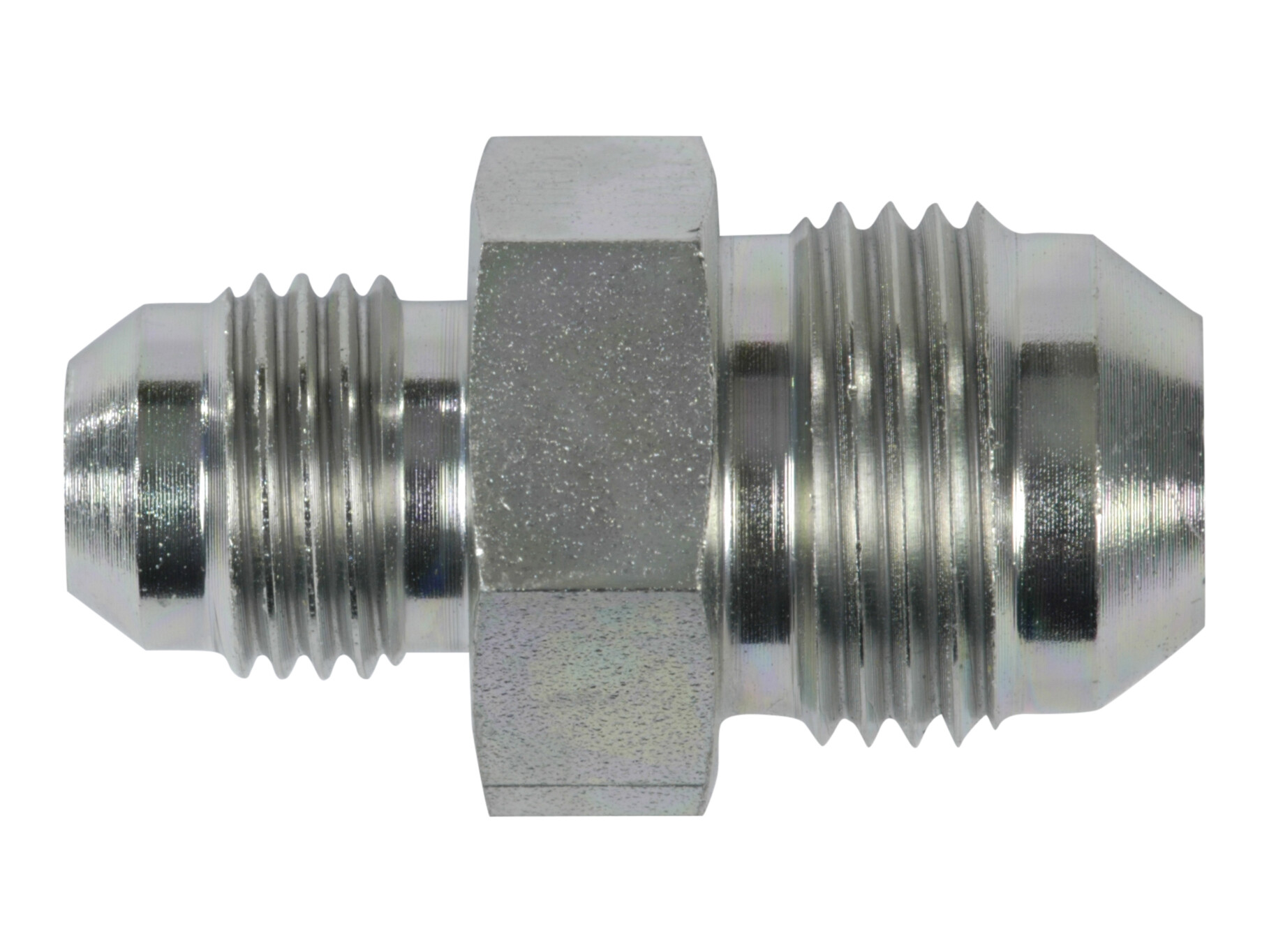

Straight fitting, reduction
Straight fitting, reduction
Partnumber:
MU-12-10
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe 1
12 mm
Diameter pipe 2
10 mm
Dimension A
39 mm
Dimension B
17 mm
Dimension B1
14 mm
Dimension CH
21 mm
Dimension J
3/4-16 JIC
Dimension J1
9/16-18 JIC
Dimension T
12 mm
Dimension T1
10 mm
Material
Steel
Model code
SA102001/1210
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
3/4-16, 9/16-18 JIC
Package size
0 pcs
Barcode
5704334214274
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
Straight fitting, reduction
