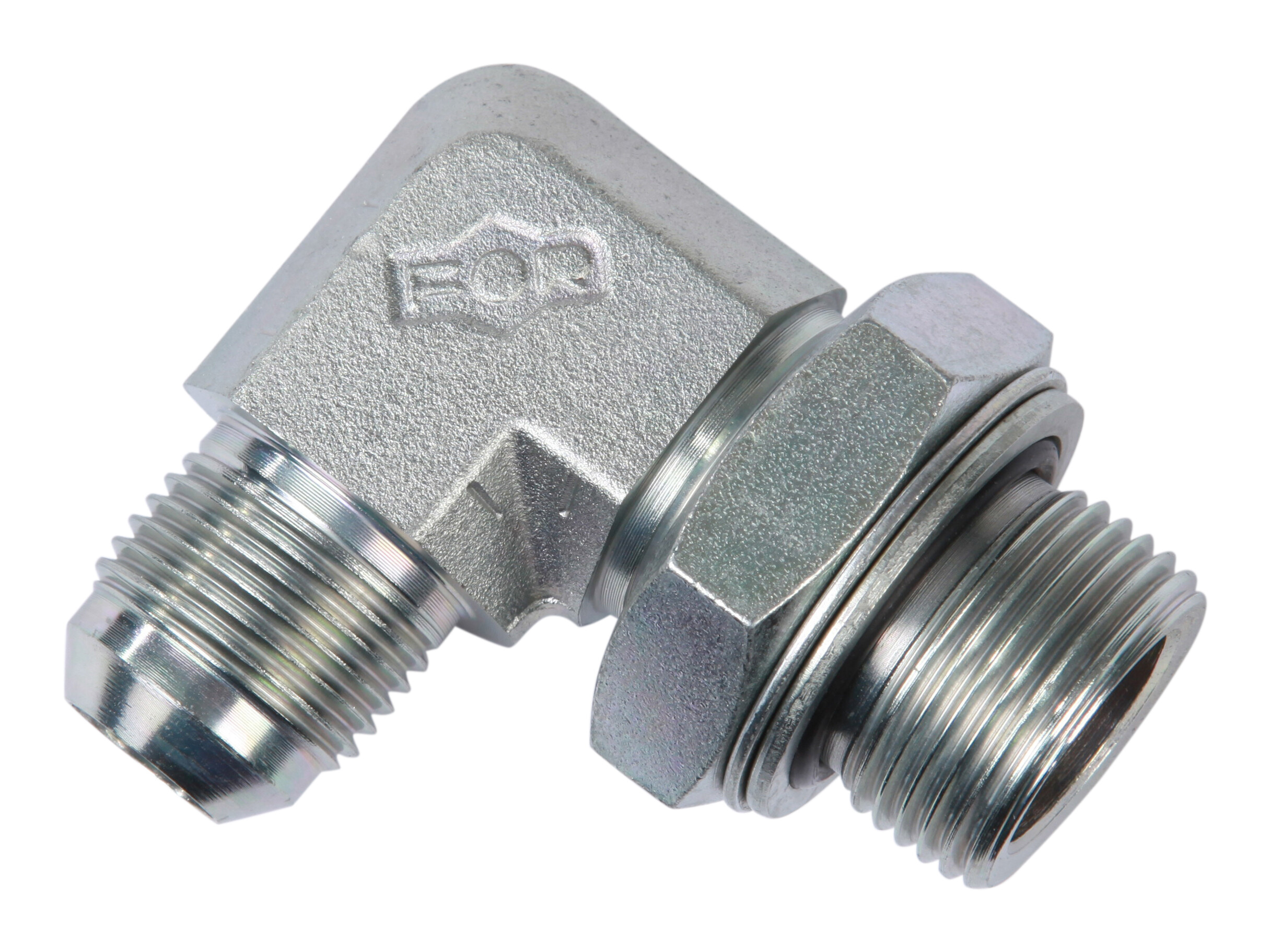

S600-16-26G elbow
\ufeff
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
CO-16-3/4BSP
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
90 °
B
39,5 mm
Brand Name
FOR
C
49 mm
CH
36 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
16 mm
F
G 3/4 BSP
J
7/8-14 JIC
Material
Steel
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro-galvanized / White chromatized
T
16 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
7/8-14 JIC
Thread outer
G 3/4 BSP
Pakke str.
0 pcs
Stregkode
5704334274025
Brutto vægt
0,28 Kg
Netto vægt
0,28 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
\ufeff
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
