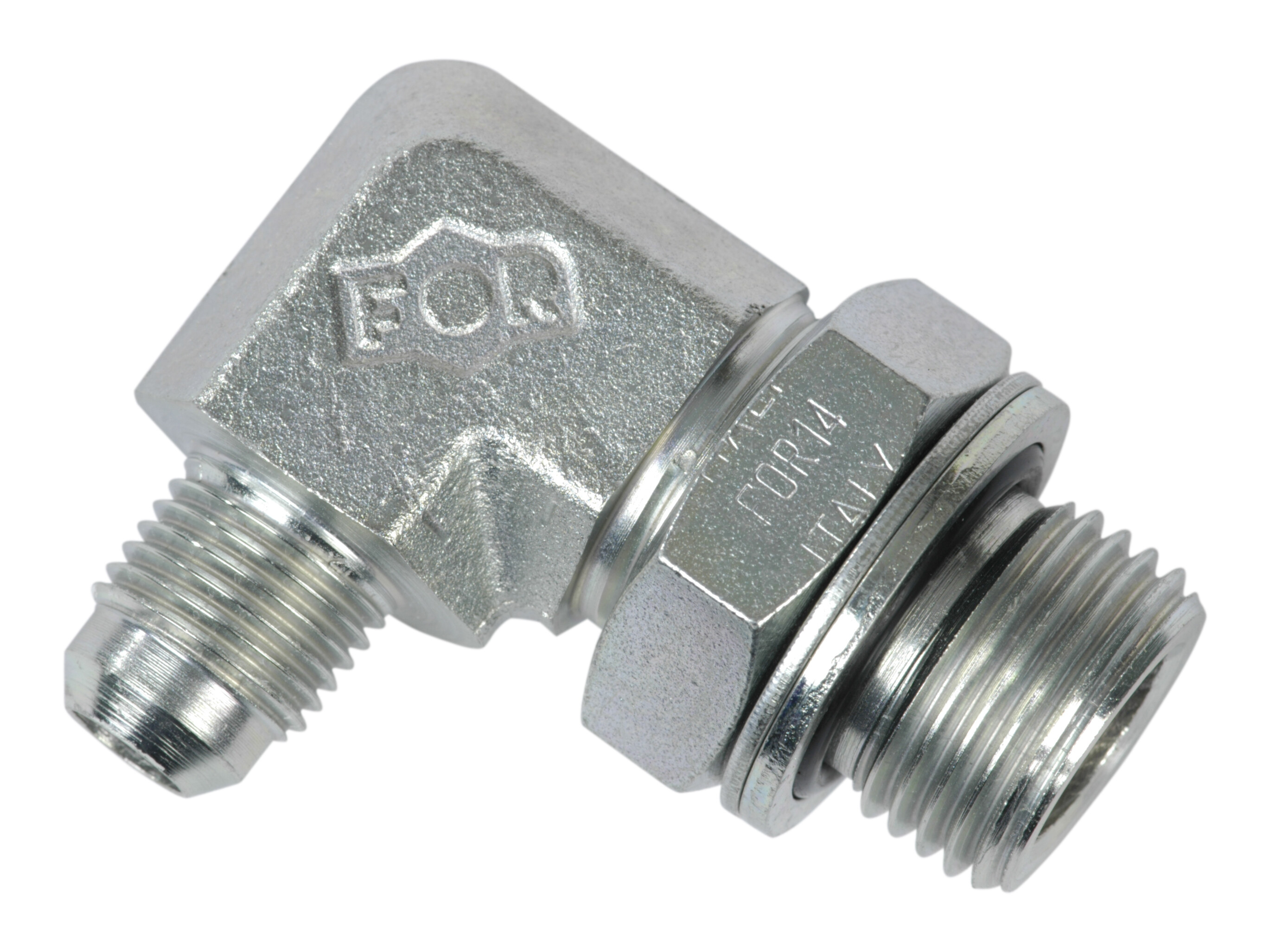

90° elbow male JIC - male BSPP with O.R. and retaining ring
\ufeff
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
CO-10-1/2
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
B
31 mm
Brand Name
FOR
C
43 mm
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
F
G 1/2 BSP
J
9/16-18 JIC
Material
Steel
Model code
A107039/1021
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro-galvanized / White chromatized
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
G 1/2 BSP
Pakke str.
0 pcs
Stregkode
5704334273882
Brutto vægt
Kg
Netto vægt
0,151 Kg
Oprindelsesland
ita
Intrastat varekode
73071110
\ufeff
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
