SOLENOID VALVE SV08-24-01-24D-DN-B-L-2B

SOLENOID VALVE SV08-24-01-24D-DN-B-L-2B

Magn. vent. 4/2 8l/m SV08-24-01-24D-DN-B-L-2B

Varenummer:
805402319
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
1434992 - Sensor-/aktuatorkabel - DIN A / Hirschmann - 3.0 meter
Varenummer: 1434992
171139819 - Spole M13-12D-20W-DN
Varenummer: 171139819
COIL, M13-24D-20W-DE M13-24D-20W-DE
Varenummer: 17114141
171180419 - Spole R13-12D-16W-DE
Varenummer: 171180419
171180519 - Spole R13-20D-16W-DE
Varenummer: 171180519
171180619 - Spole R13-24D-16W-DE
Varenummer: 171180619
171183719 - Spole M13-110RA-18.5W-DN
Varenummer: 171183719
171183819 - Spole M13-120RA-18.5W-DN
Varenummer: 171183819
171183919 - Spole M13-220RA-17W-DN
Varenummer: 171183919
171184019 - Spole M13-240RA-17W-DN
Varenummer: 171184019
Coil M13-120RA-12W-DN
Varenummer: 171187419
COIL, M13-24D-20W-DN M13-24D-20W-DN
Varenummer: 171140019
354003319 - Pakningssæt SDC 08-4 B-2H
Varenummer: 354003319
922516810 - Ventilhus SDC08-4-L2B 1/4
Varenummer: 922516810
Activation
Solenoid
Brand Name
Danfoss
Contamination level max.
20/18/14 - ISO 4406
Current type
DC
Filter built-in
No
Flow rate nominal LMin
8 lpm
Manual operated
No
Material
Aluminium
Material quality
6061-T6
Model code
SV08-24-01-24D-DN-B-L-2B

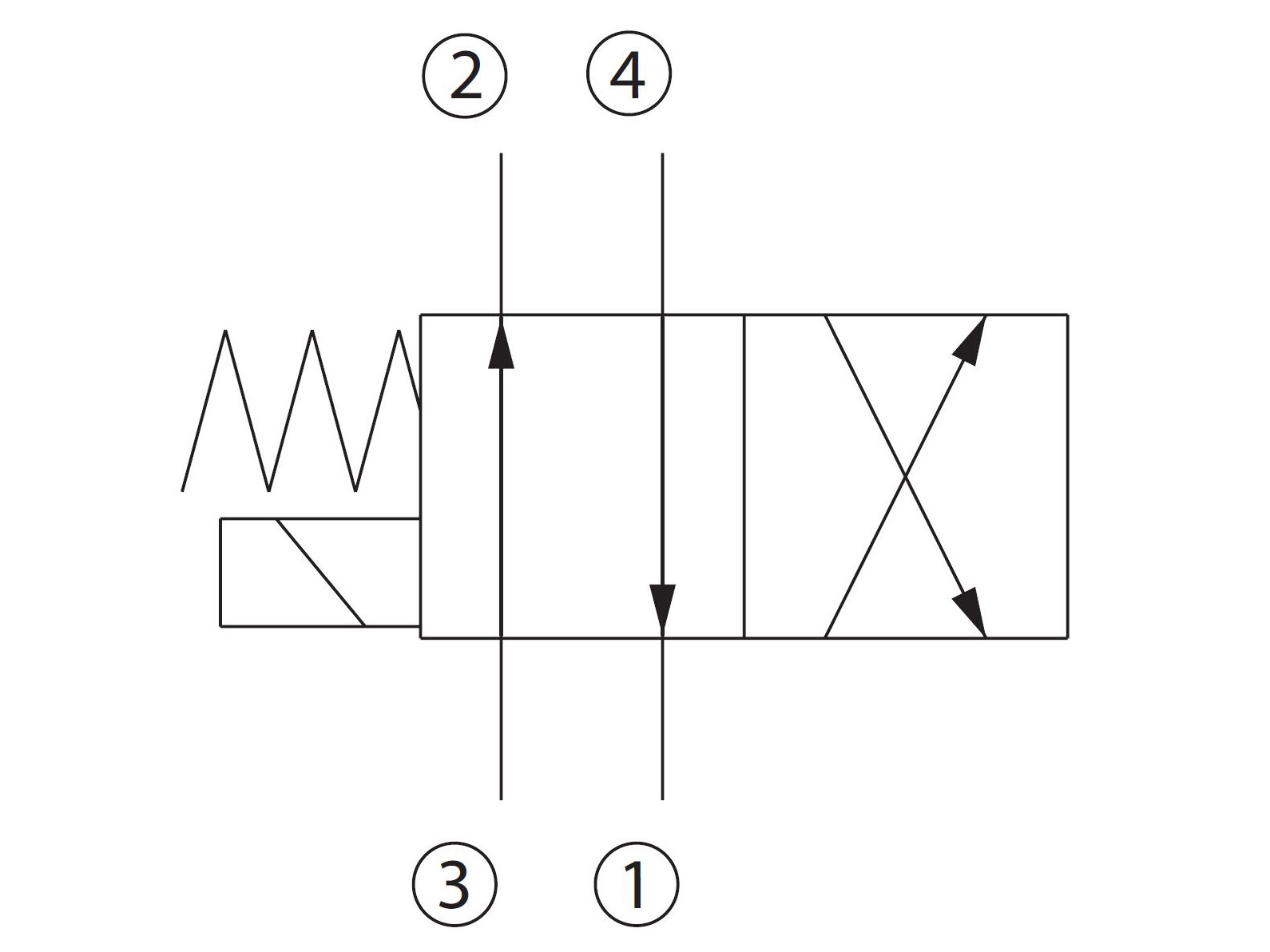

Number of ways/positions
4/2
Oil viscocity recommended
12 - 54 cSt
Plug type
DIN 43650 Form A
Pressure max.
230 bar
Sealing material
NBR
Solenoidtype
M13
Temperature max.
+100 °C
Temperature min.
-40 °C
Thread
G 1/4 BSP
Torque tightening
35 - 40 Nm
Voltage
24 V
Pakke str.
0 pcs
Stregkode
5704334372646
Brutto vægt
0,74 Kg
Netto vægt
0,74 Kg
Oprindelsesland
Intrastat varekode
84812010

Magn. vent. 4/2 8l/m SV08-24-01-24D-DN-B-L-2B
