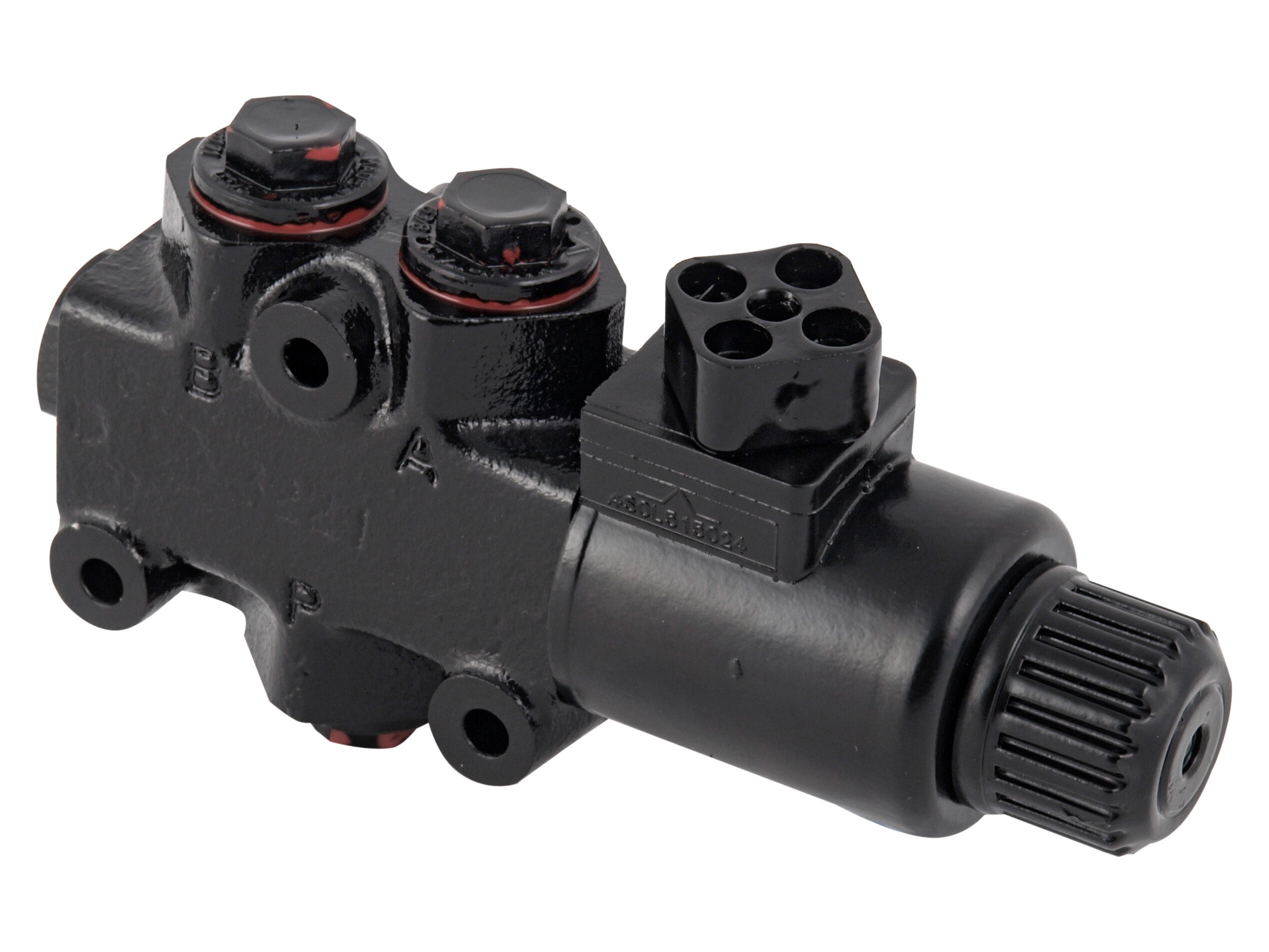

DFE052/3A18ES-W-201-24Vdc <CRZ> 3/2 way valve 3/8
Electrically operated Walvoil selector valves "Spool type".
Modification to external drain requires mounting kit, type 5GIU*** (Must be ordered separately).
Partnumber:
12Z240040
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Solenoid
Brand Name
Walvoil
Current type
DC
Drainport
G 1/4 BSP
Flow rate nominal LMin
60 lpm
Model
DFE052
Number of ways/positions
3/2
Oil viscocity recommended
12 - 400 cSt
Plug type
DIN 43650 Form A
Pressure with drain max.
315 bar
Pressure without drain max.
200 bar
Temperature ambient max.
+50 °C
Temperature min.
-20 °C
Temperature working fluid max.
+80 °C
Thread
G 3/8 BSP
Voltage
24 V
Package size
0 pcs
Barcode
5704334790921
Gross weight
1,80 Kg
Net weight
1,80 Kg
Country of origin
ITA
Intrastat code
84812010
Electrically operated Walvoil selector valves "Spool type".
Modification to external drain requires mounting kit, type 5GIU*** (Must be ordered separately).
