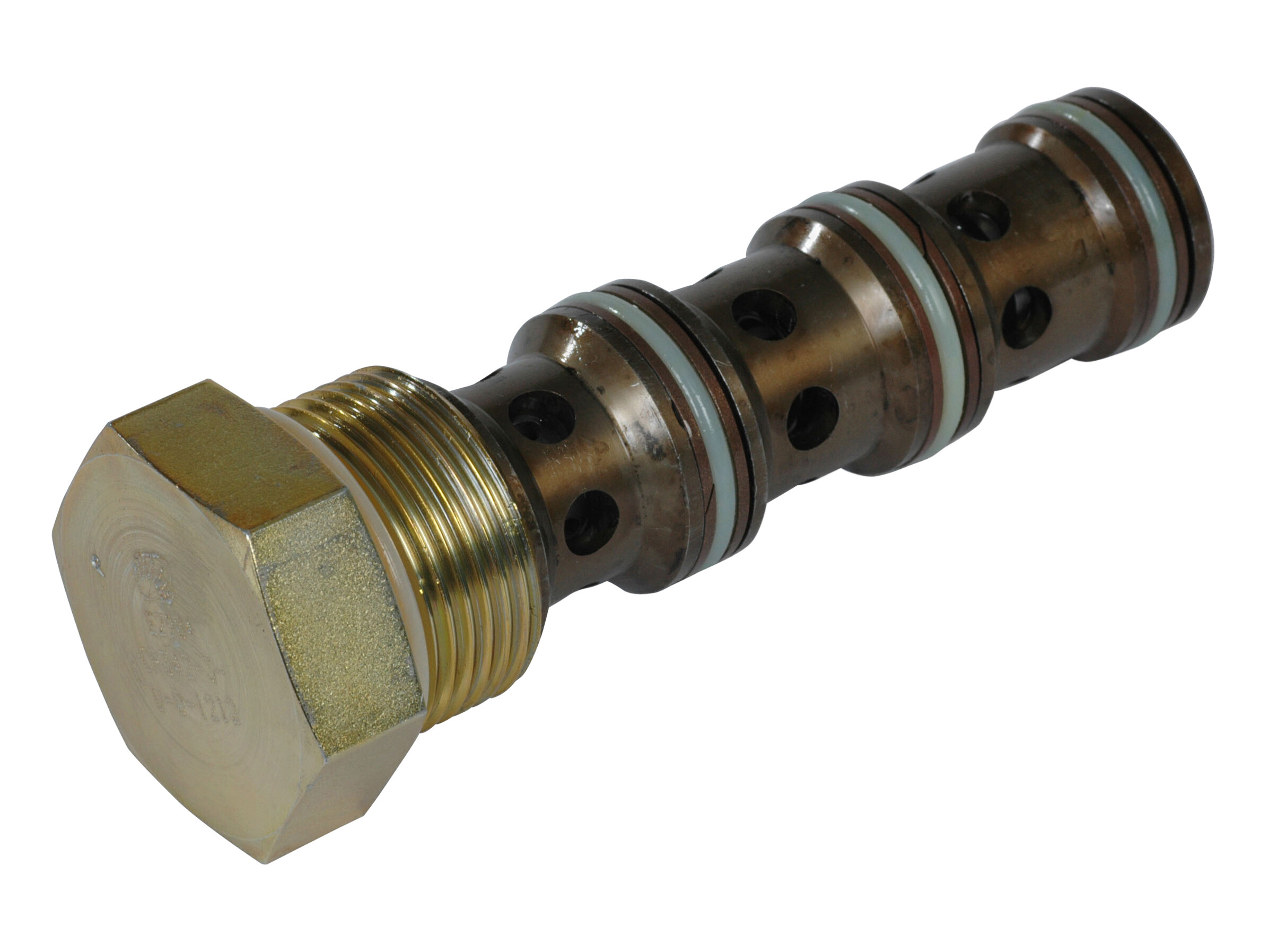

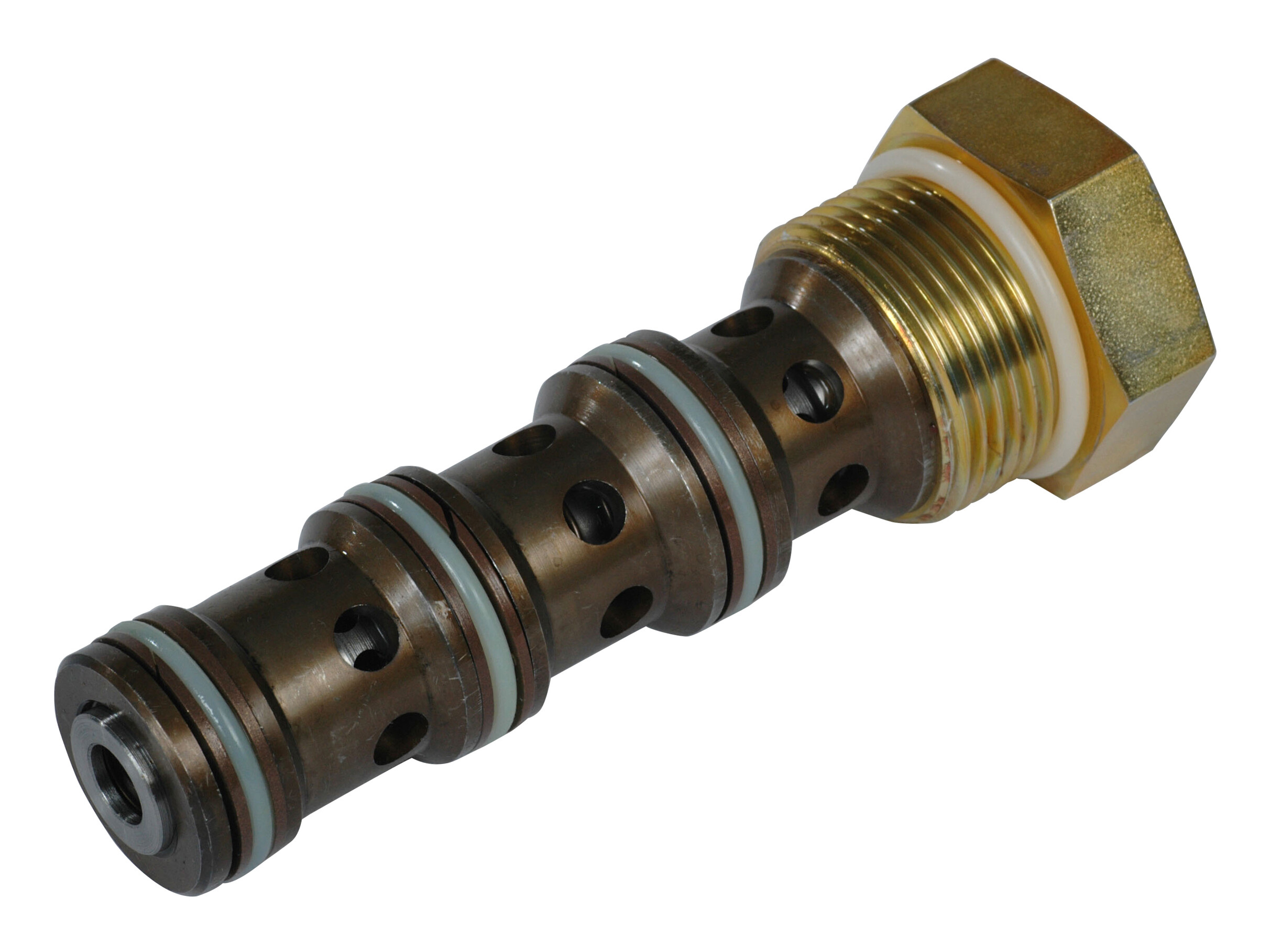

Flow Divider ventil 91l/m 1:1 CP342-3-U-0-1212
This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.
Artikelnummer:
139795
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Flowmin. reglerat
91 lpm
Flöde max. reglerat
91 l/min
Flödeshastighet nominell LMin
150 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
CP16-4
Modell kod
CP342-3-U-0-1212
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
NBR
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
450 bar
Tryckkompenserad
Yes
Åtdragning moment
122 - 136 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704334467687
Bruttovikt
0,37 Kg
Nettovikt
0,37 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.
