Press. Reducing valve 40l/m 7-97bar CP230-2-B-0-E-C-XXX

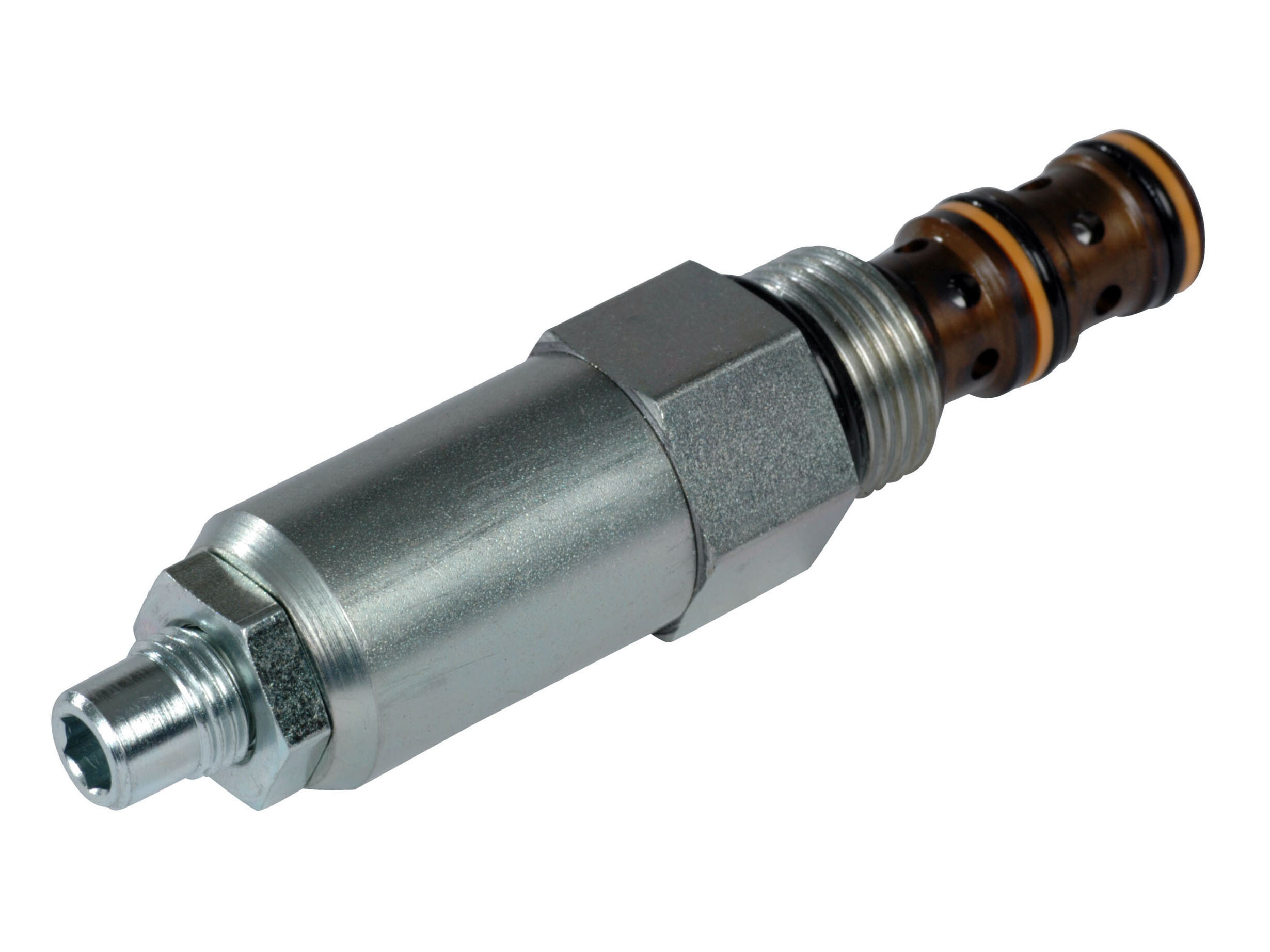

CP230-2, Pressure Reducing Valve, Non-Relieving, Direct Acting

This is a normally open, direct acting pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet ­flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.

Partnumber:
132364.000

Package size:
0 pcs

Min. order quantity is:
1 pcs
HOUSING, SDC10-3-SE3B (3/8) SDC10-3-SE3B (3/8)
Varenummer: 922514310
Ventilhus Comatrol SDC10-3-SE4B (1/2)
Varenummer: 922514410
Housing SDC10-3--SI3B (3/8)
Varenummer: 922514510
Housing SDC10-3--SI4B (1/2)
Varenummer: 922514610
Brand Name
Danfoss

Cavity
SDC10-3

Contamination level max.
20/18/14 - ISO 4406

Flow rate nominal LMin
40 lpm

Key size
25.4 mm

Material
Steel

Model code
CP230-2-B-0-E-C-XXX

Oil viscocity recommended
12 - 54 cSt

Pressure max.
210 bar

Pressure setting max.
97 bar

Pressure setting min.
7 bar

Sealing material
NBR

Torque tightening
41 - 47 Nm
Pakke str.
0 pcs

Stregkode
5704334468547

Brutto vægt
0,25 Kg

Netto vægt
0,25 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

CP230-2, Pressure Reducing Valve, Non-Relieving, Direct Acting

This is a normally open, direct acting pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet ­flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
