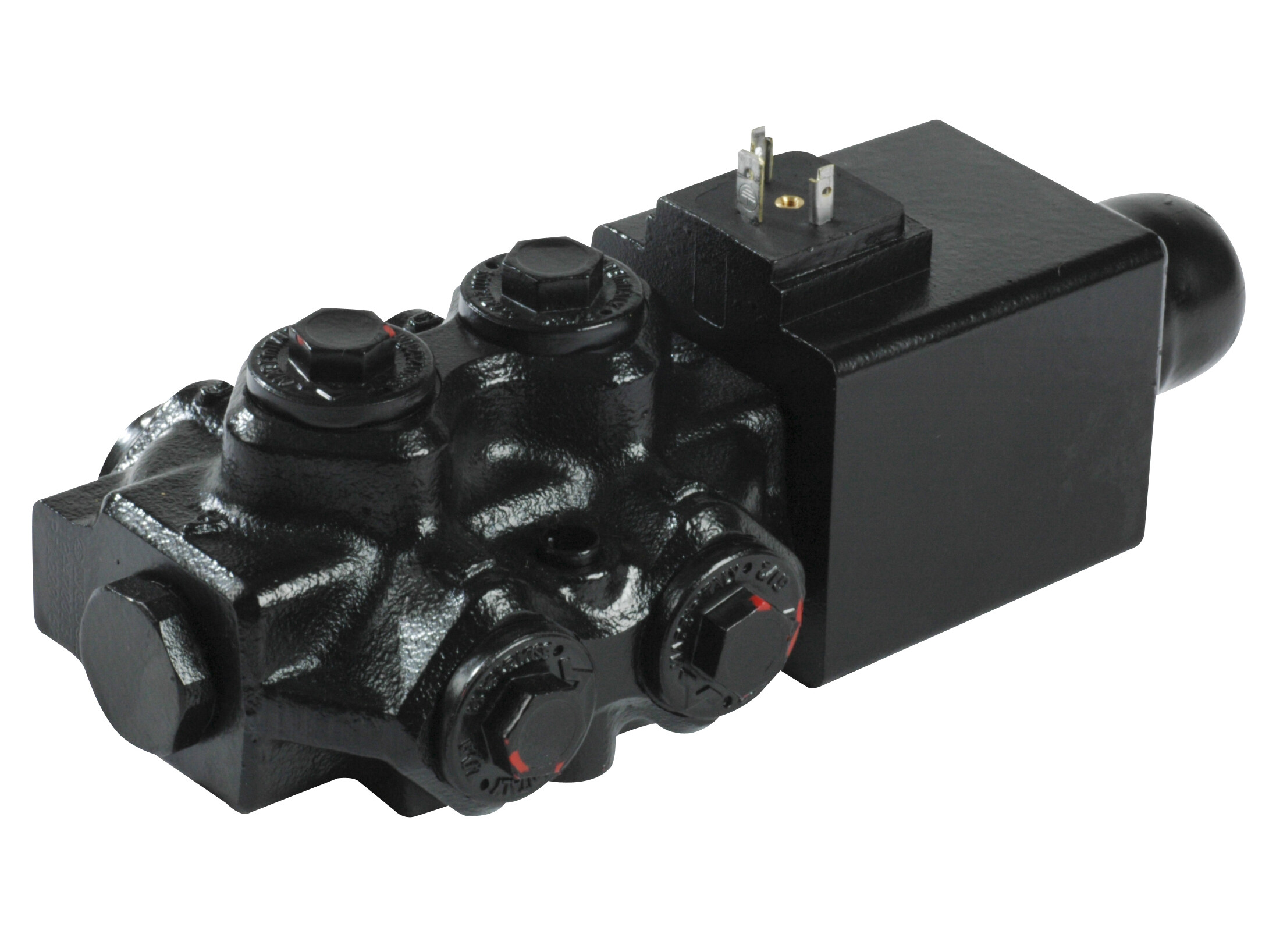

DFE102/6A18ES-W202-12VDC-CRZ Walvoil 6/2-way valve 1/2" open
\ufeff
90l/min 200bar - 315bar with leakage line
A- Shift position open.
DFE102/6A18ES-W202-12VDC-CRZ
18..W \u003d spring return, no leakage connection
ES \u003d Metal shell coil
202 \u003d on coil ISO4400/DIN43650 connector
Partnumber:
12Z470013
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Solenoid
Brand Name
Walvoil
Contamination level max.
20/18/15 - ISO 4406
Current type
DC
Drainport
G 1/4 BSP
Flow rate nominal LMin
90 lpm
Model code
DFE102/6A18ES-W202-12VDC-CRZ
Number of ways/positions
6/2
Oil viscocity recommended
12 - 400 cSt
Plug type
DIN 43650 Form A
Pressure with drain max.
315 bar
Pressure without drain max.
200 bar
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/2 BSP
Voltage
12 V
Package size
0 pcs
Barcode
5704334875345
Gross weight
Kg
Net weight
Kg
Country of origin
ita
Intrastat code
84812010
\ufeff
90l/min 200bar - 315bar with leakage line
A- Shift position open.
DFE102/6A18ES-W202-12VDC-CRZ
18..W \u003d spring return, no leakage connection
ES \u003d Metal shell coil
202 \u003d on coil ISO4400/DIN43650 connector
