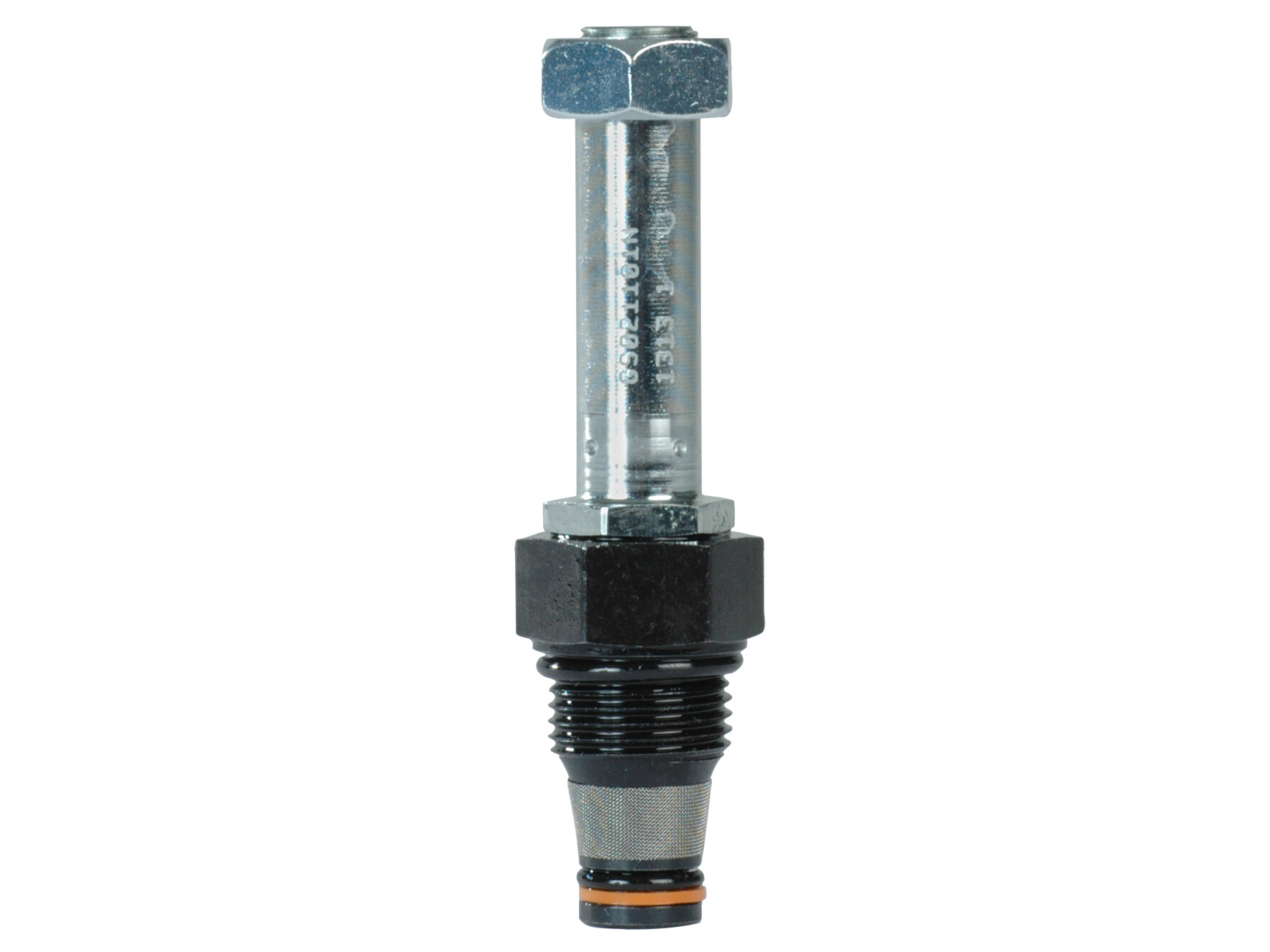

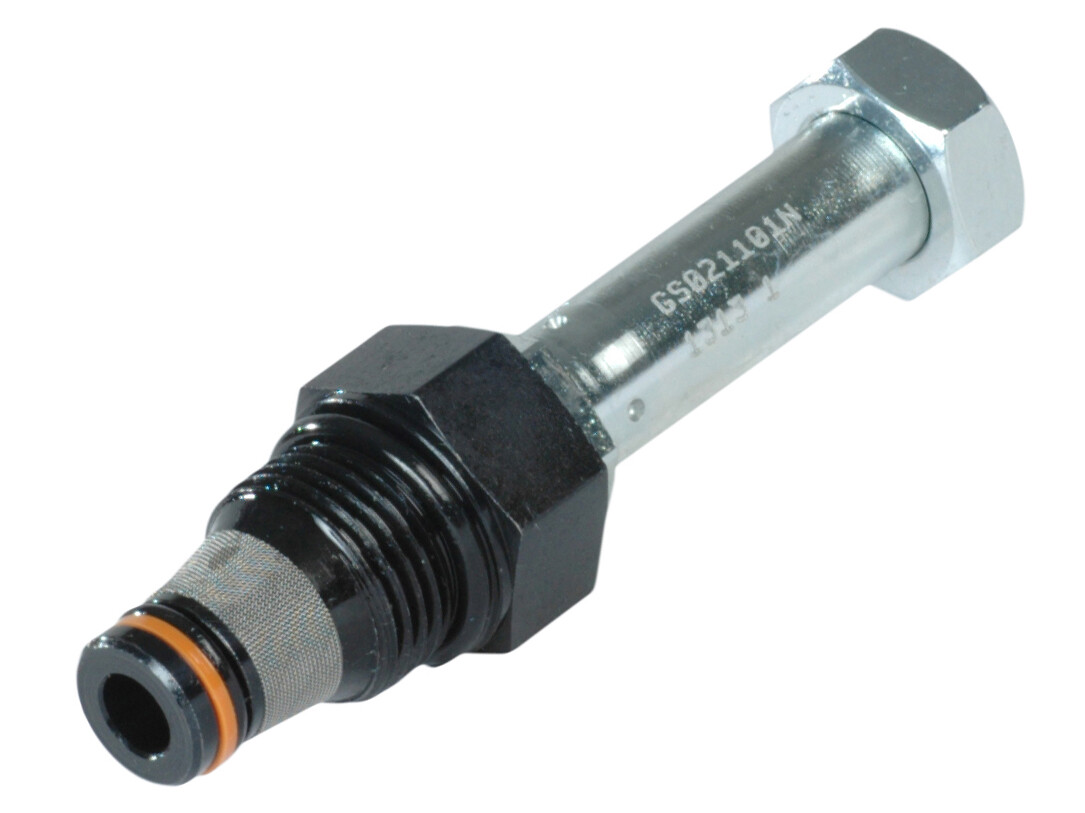

Magnetv.patron NO.15lpm 210bar med filter
Magnetv.patron NO.15lpm 210bar med filter
Partnumber:
GS02-11-01N
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Magnetspole
Brand Name
Hydraspecma
Cavity
CAV02-2
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
Ja
Flow rate nominal LMin
15 lpm
Manual operated
Nej
Number of ways/positions
2/2
Oil viscocity recommended
15 - 50 cSt
Pressure max.
210 bar
Sealing material
NBR
Solenoidtype
CCS
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
30 Nm
Valve type
NO - Normalt åben
Package size
0 pcs
Barcode
5704295031736
Gross weight
0,12 Kg
Net weight
0,12 Kg
Country of origin
Intrastat code
84812010
Magnetv.patron NO.15lpm 210bar med filter
