Soleniod valve 65l/m NC HSVP10-CDB-H24D-DE-XC-P-00

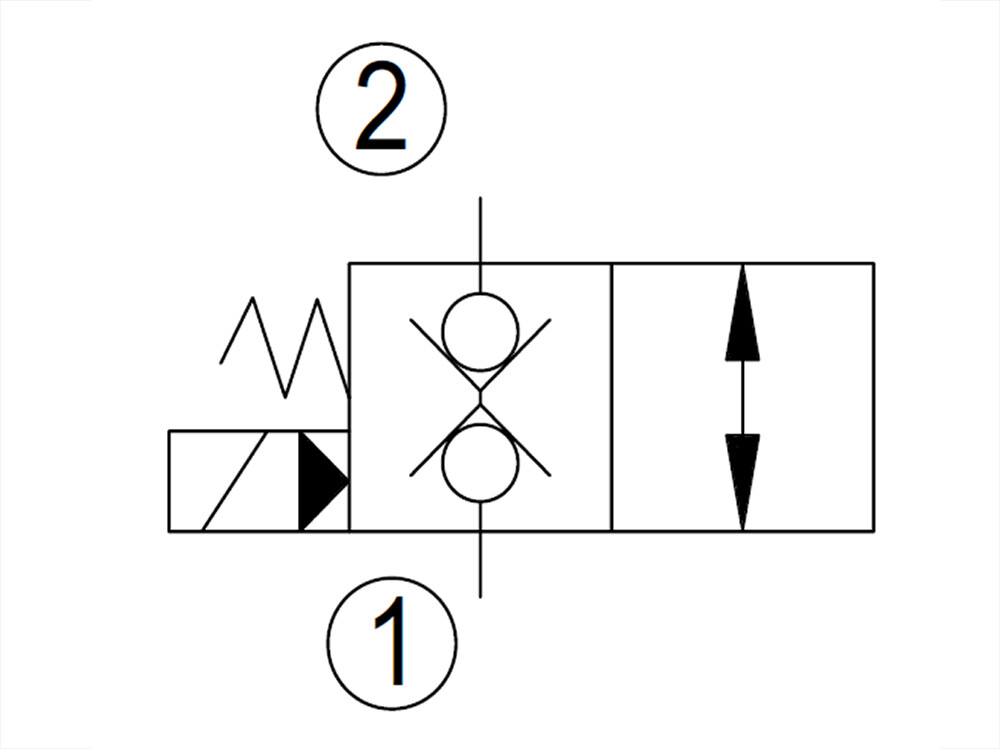

This is normally closed, poppet-style 10-size solenoid valve. When de-energized, the valve block in both directions. When energized, the valve’s poppet is opens on its seat, allowing flow from 2 to 1 or 1 to 2.
Applications:
The HSVP10-CDB is designed for high pressure, low leakage applications and can be used to control the advance and retract of single acting and double acting cylinders. The valve can also be used to lock pressure in a group of cylinders.
Partnumber:
11182185
Package size:
1 pcs
Min. order quantity is:
1 pcs
Aktivering
Solenoid
Antal väger/positioner
2/2
Flödeshastighet nominell LMin
50 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Inbyggt filter
No
Kavitet
SDC10-2
Magnetspoltyp
H16
Manuellt styrd
No
Modell kod
HSVP10-CDB-H24D-DE-XC-P-00
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
Polyurethane
Spänning
24 V
Ström
DC
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
350 bar
Ventiltyp
NC - Normally closed
Åtdragning moment
70 Nm
Package size
1 pcs
Barcode
5704334727118
Gross weight
0,50 Kg
Net weight
0,50 Kg
Country of origin
ITA
Intrastat code
84812010
This is normally closed, poppet-style 10-size solenoid valve. When de-energized, the valve block in both directions. When energized, the valve’s poppet is opens on its seat, allowing flow from 2 to 1 or 1 to 2.
Applications:
The HSVP10-CDB is designed for high pressure, low leakage applications and can be used to control the advance and retract of single acting and double acting cylinders. The valve can also be used to lock pressure in a group of cylinders.
