RELIEF VALVE RV08-DR-3-E-XXX-B-00

RV08-DR, Relief Valve, Direct Acting, Poppet Type with Dampening

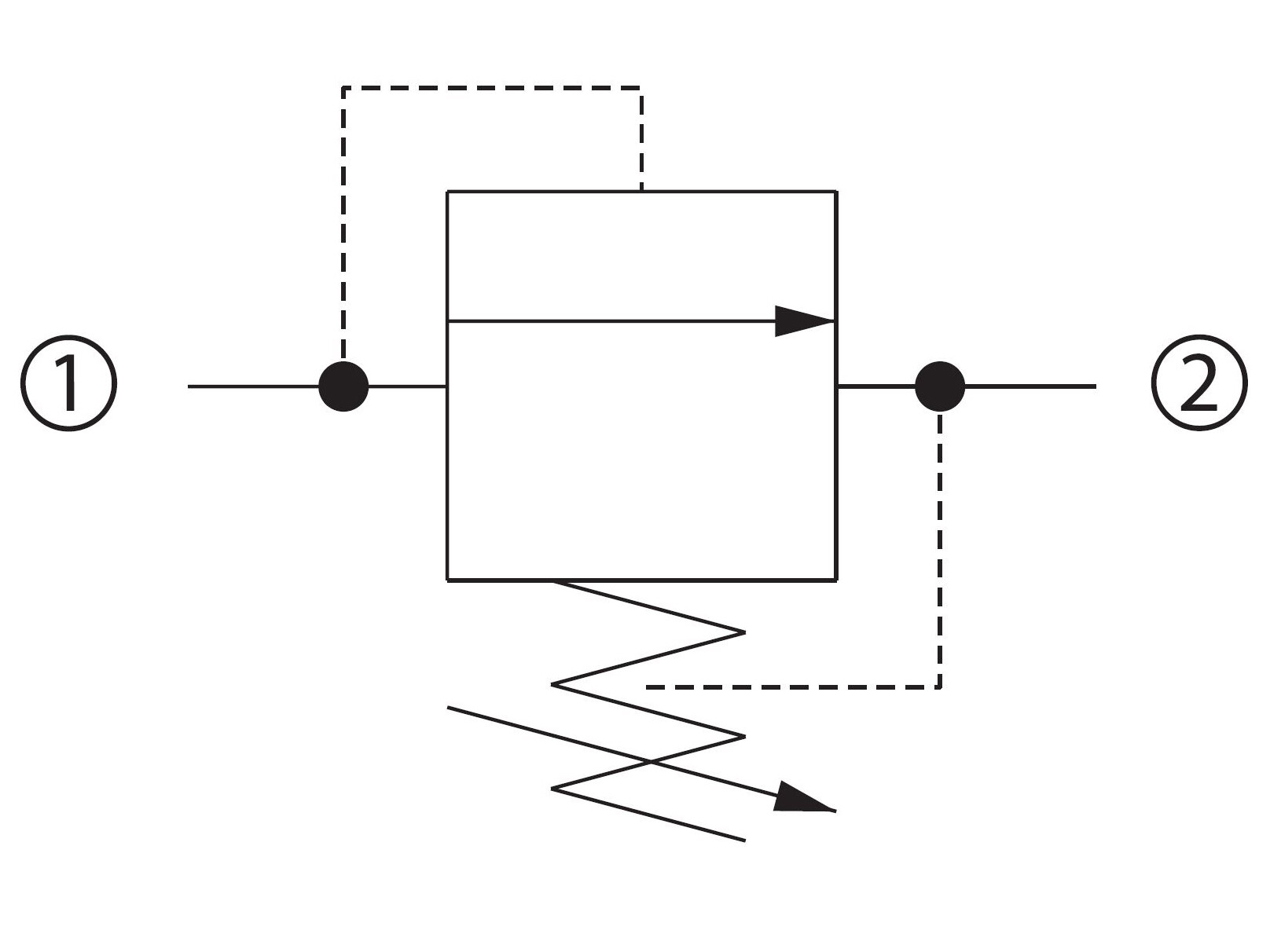

This is a direct acting, poppet type relief valve that relieves from port 1 to 2. It features a highly damped poppet for smooth and stable response. It can be used as a cost-effective main relief or to protect an actuator from over-pressurization.

Partnumber:
810209419

Package size:
0 pcs

Min. order quantity is:
1 pcs
Mix-N-Match Dual Cross Body 3/8"DCP08-2-3B
Partnumber: 11135669
Mix-N-Match Dual Parallel Body 3/8"DPL08-2-3B
Partnumber: 11135822
Housing SDC08-2--LG23B (3/8)
Partnumber: 922513910
Housing SDC08-2-DG2B (1/4)
Partnumber: 922516410
Housing SDC08-2-DG3B (3/8)
Partnumber: 922516510
Housing SDC08-2--LG13B (3/8)
Partnumber: 922516610
Pakningssæt SDC 08-2 2B
Partnumber: 354000119
Cavity
SDC08-2

Flow Nominel
30 lpm

Forureningsgrad maks.
20/18/14 - ISO 4406

Model kode
RV08-DR-3-E-XXX-B-00

Mærke navn
Danfoss

Nøglevidde
22 mm

Olieviskositet anbefalet
12 - 54 cSt

Pakningsmateriale
NBR

Temperatur maks.
+100 °C

Temperatur min.
-40 °C

Tilspændingsmoment
35 - 40 Nm

Tryk maks.
250 bar

Trykindstilling maks.
250 bar

Trykindstilling min.
60 bar
Package size
0 pcs

Barcode
5704334371854

Gross weight
0,10 Kg

Net weight
0,10 Kg

Country of origin

Intrastat code
84812010

RV08-DR, Relief Valve, Direct Acting, Poppet Type with Dampening

This is a direct acting, poppet type relief valve that relieves from port 1 to 2. It features a highly damped poppet for smooth and stable response. It can be used as a cost-effective main relief or to protect an actuator from over-pressurization.
