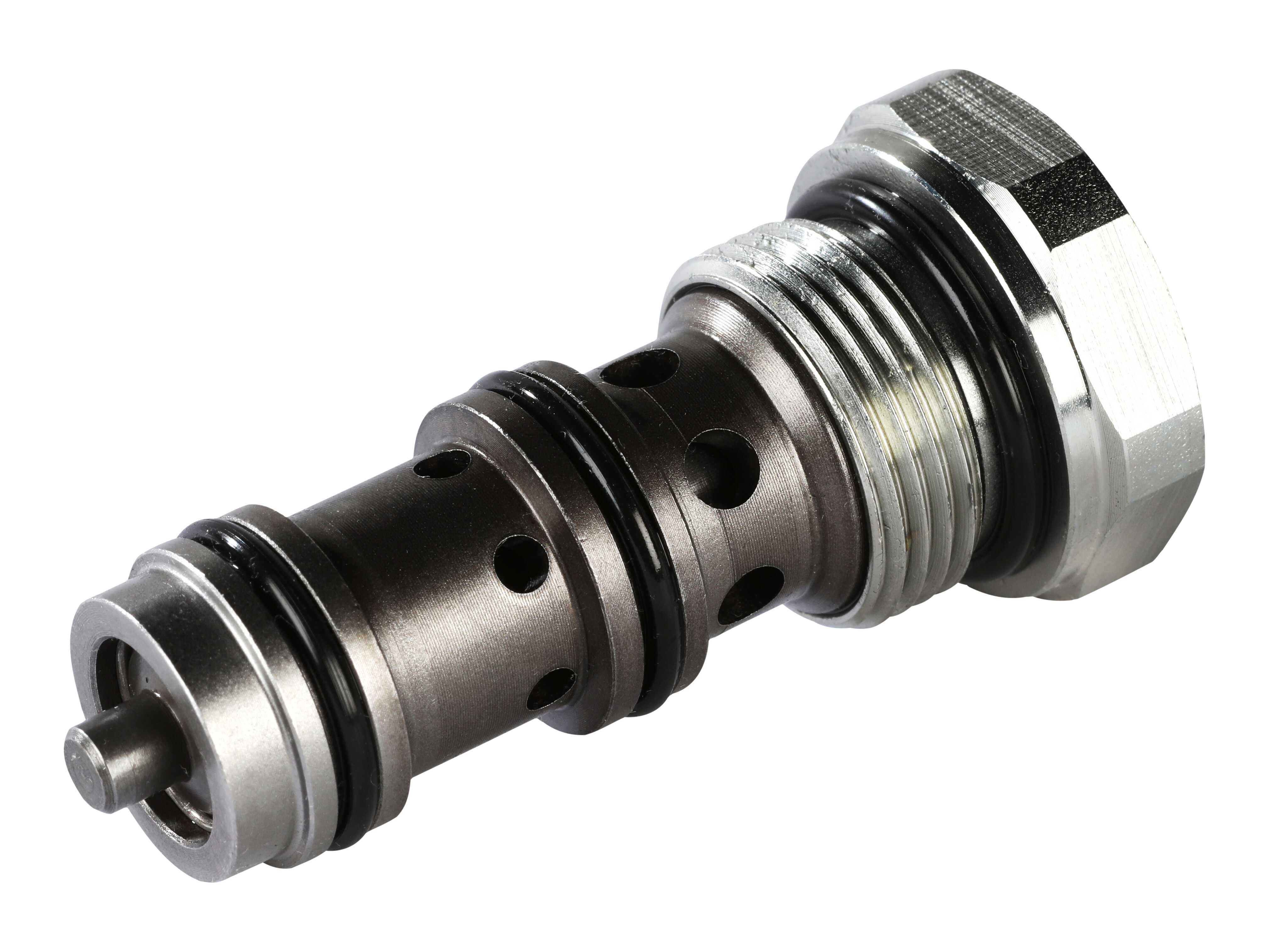

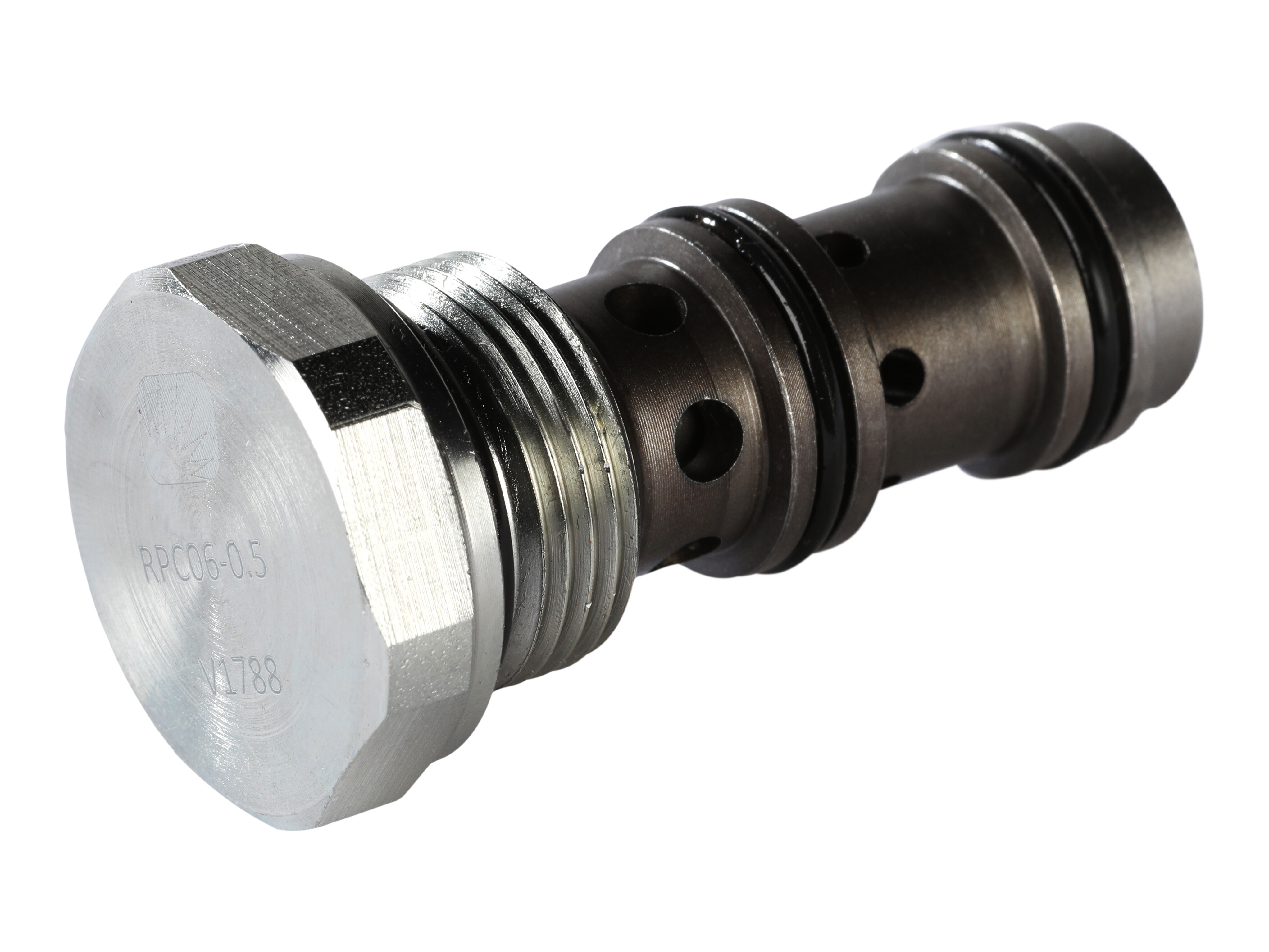

Pilot opr.check valve 35l/m 0.5bar RPC06-0.5-00

Pilot opr.check valve 35l/m 0.5bar RPC06-0.5-00

This is a pilot operated check valve where free flow takes place from port 2 to 3 and is blocked from port 3 to 2 until pilot pressure is applied to port 1.

Partnumber:
11169090
Package size:
0 pcs
Min. order quantity is:
1 pcs
LINE BODY, NCS 06/3 SE 1/2 NCS06/3--SE 1/2
Partnumber: 922500713
LINE BODY, NCS 06/3 SE 3/8 (D) NCS06/3-SE 3/8 (D)
Partnumber: 922500813
LINE BODY, NCS 06/3 SI 3/8 NCS06/3--SI 3/8
Partnumber: 922501113
Housing NCS06/3--SI 1/2
Partnumber: 922501213
Housing NCS06/3-DL 3/8
Partnumber: 922501313
Housing NCS06/3--DL 1/2
Partnumber: 922501413
Housing NCS06/3-SEL 3/8
Partnumber: 922503913
SEAL KIT NCS 06 3 VIE VITON #
Partnumber: 230000110
Brand Name
Danfoss
Cavity
NCS06/3
Contamination level max.
20/19/14 - ISO 4406
Flow rate nominal LMin
35 lpm
Model code
RPC06-0.5-00
Oil viscocity recommended
12 - 54 cSt
Pilot ratio
3,4:1
Pressure max.
350 bar
Pressure opening
0.5 bar
Temperature max.
+110 °C
Temperature min.
-30 °C
Torque tightening
44 - 50 Nm
Package size
0 pcs
Barcode
5704334554349
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
Intrastat code
84812010

This is a pilot operated check valve where free flow takes place from port 2 to 3 and is blocked from port 3 to 2 until pilot pressure is applied to port 1.
