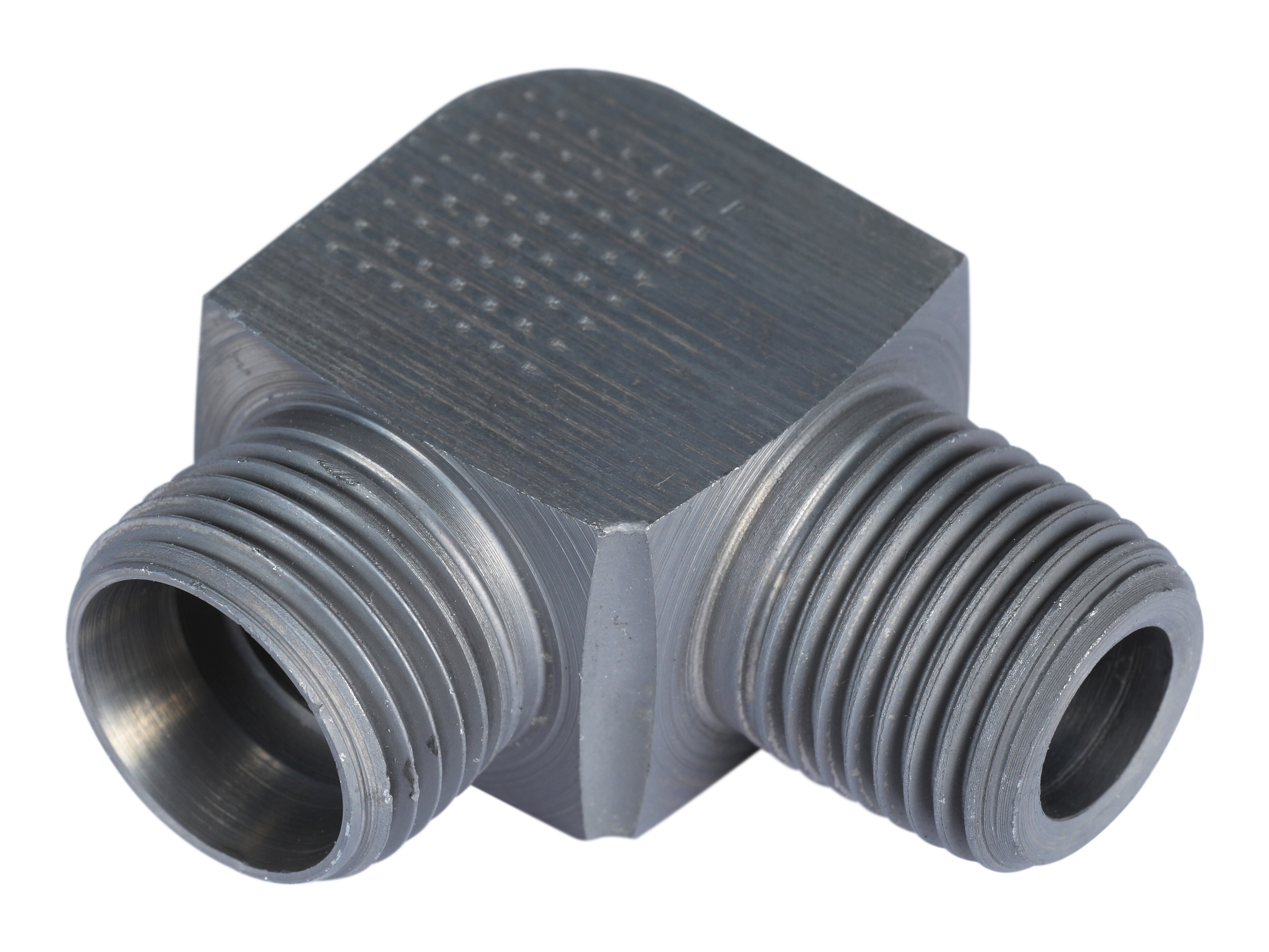

Elbow fitting 90° - L-series - MM male 24° x NPT male stud - B-LNPTX / XWE-LN

Elbow fitting 90° - L-series - MM male 24° x NPT male stud - B-LNPTX / XWE-LN

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Series Pressure max. Thread outer metric Thread outer
XWE06LN Stud elbow 90° - ø6L x 1/8" NPT L 315 bar M12x1,5 1/8 NPT
XWE08LN Stud elbow 90° - ø8L x 1/4" NPT L 315 bar M14x1,5 1/4 NPT
XWE10LN Stud elbow 90° - ø10L x 1/4" NPT L 315 bar M16x1,5 1/4 NPT
XWE12LN Stud elbow 90° - ø12L x 3/8" NPT L 315 bar M18x1,5 3/8 NPT
XWE12LN14 Adapter 90° 12L, Utv-NPT 1/4'' L 315 bar M18x1,5 1/4 NPT
XWE15LN Stud elbow 90° - ø15L x 1/2" NPT L 315 bar M22x1,5 1/2 NPT
XWE18LN Stud elbow 90° - ø18L x 1/2" NPT L 160 bar M26x1,5 1/2 NPT
XWE22LN Stud elbow 90° - ø22L x 3/4" NPT L 160 bar M30x2 3/4 NPT
XWE28LN Stud elbow 90° - ø28L x 1 NPT L 160 bar M36x2 1 NPT
Angle
90
Brand Name
Gates
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Material
Steel
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+120
Temperature min.
-40
