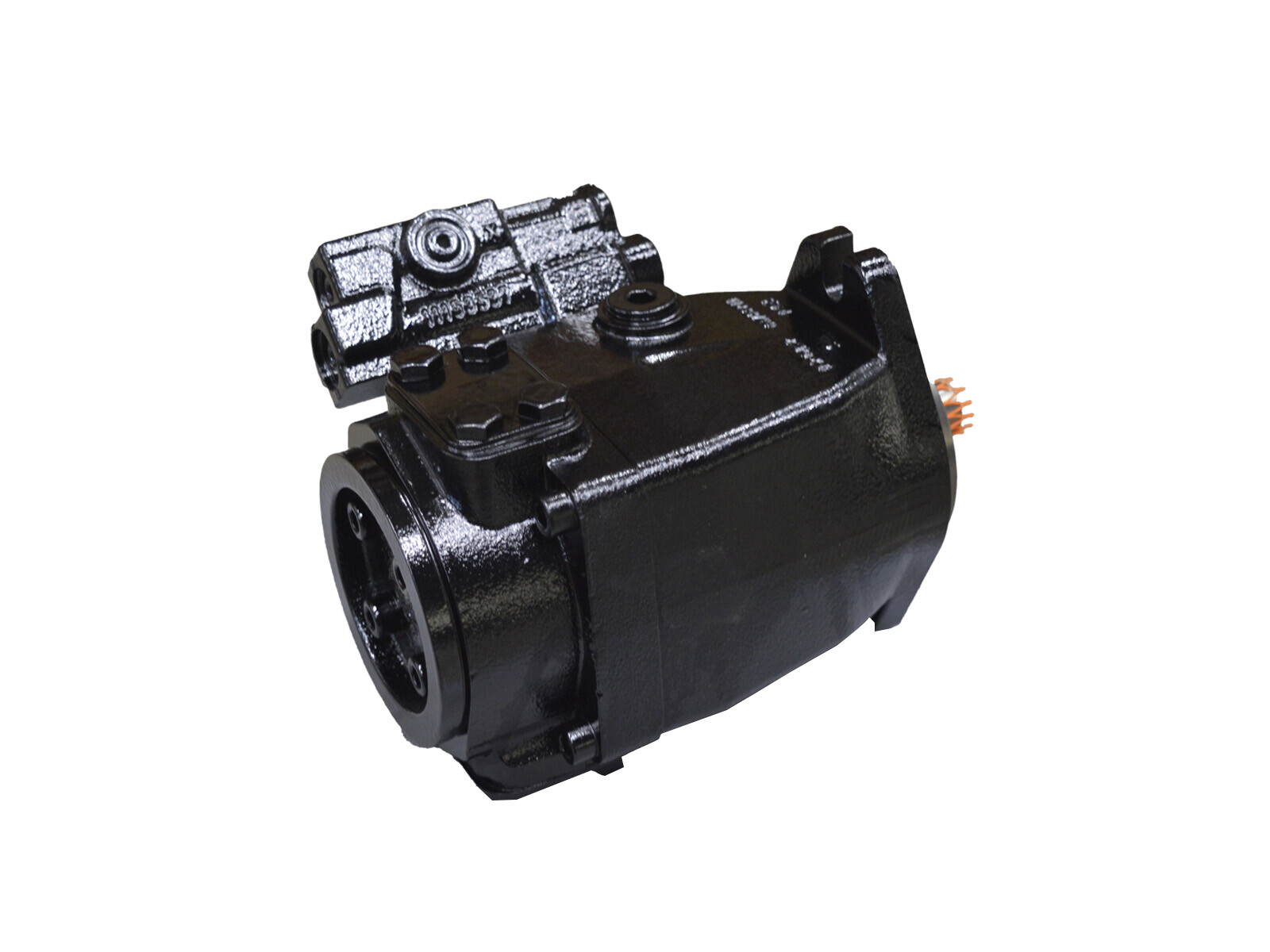

K2-R-025C-LS-26-20-NN-N-3-K1RR
-A5N-AAA-NNN-NNN Pyörimissuunta Oikea Kierrostilavuus 25 cm³/rev Akseli 0.875 inch straight keyed Laippa SAE-B Flange 2-bolt
Partnumber:
83102763
Package size:
1 pcs
Min. order quantity is:
1 pcs
AuxMount/EndCap code
RR
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Continuous rotation max.
3450 rpm
Control
Load sensing
Control type
LS
Displacement
25 cm3
Displacement limiter
Adjustable
Flange SAE/DIN
3000 PSI
Flange inlet
1.1/2 "
Flange outlet
1 "
Holes circle
146 mm
Model
Frame K2
Mounting flange
SAE-B2
Number of mounting holes
2
Oil viscocity recommended
9 - 110 cSt
Port position
Side
Pressure continous max.
260 bar
Pressure max.
350 bar
Rear flange
None
Recess
101,6 mm
Rotation direction
Right (CW)
Rotation max. at max. pressure
2600 rpm
Rotational speed max.
3750 rpm
Rotational speed min.
500 rpm
Sensor type
None
Shaft code
K1
Shaft diameter
22,22 mm
Shaft keyway
6,35 mm
Shaft seal material
FKM/FPM (Viton®)
Shaft type
Cylindrical
Temperature intermittent max.
+115 °C
Temperature max.
+104 °C
Temperature min.
-40 °C
Package size
1 pcs
Barcode
424977
Gross weight
17,00 Kg
Net weight
17,00 Kg
Country of origin
SK
-A5N-AAA-NNN-NNN Pyörimissuunta Oikea Kierrostilavuus 25 cm³/rev Akseli 0.875 inch straight keyed Laippa SAE-B Flange 2-bolt
