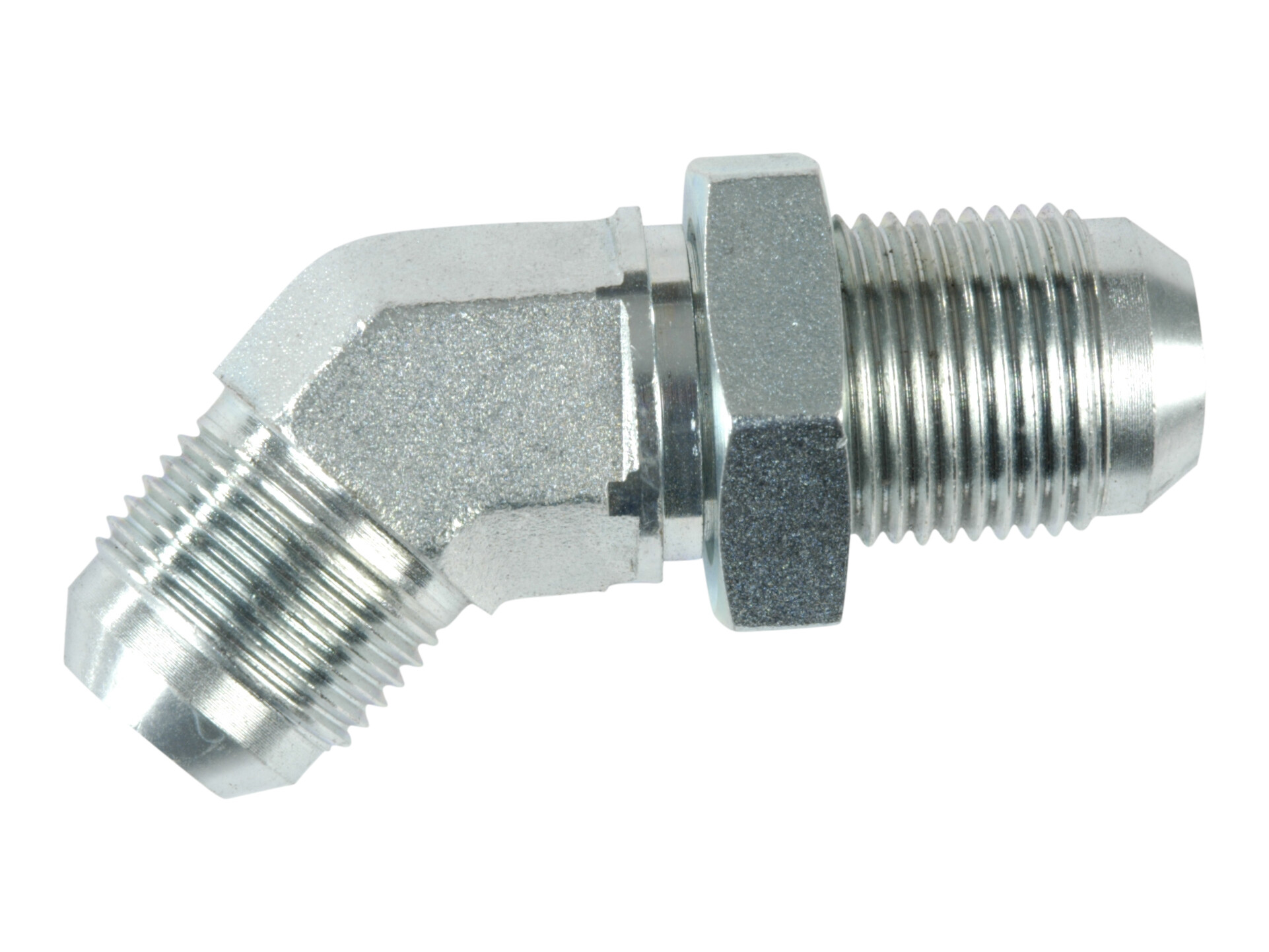

S665-20-45U bulkhead elbow
45° bulkhead elbow for connecting two JIC 37° flare interfaces through a panel or bulkhead, while changing the line direction by 45°. The bulkhead design is used when a secure pass-through connection is needed between two sides of a wall, bracket, or manifold plate.
The adapter has male JIC threads on both ends and is selected by the JIC thread size, tube outside diameter, and the available installation space defined by the dimensional envelope.
Typical Applications
- Bulkhead pass-through connections in hydraulic pipe and hose installations
- Routing hydraulic lines where a 45° change of direction is required at the panel
Partnumber:
VUP-20
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
B
32,5 mm
Brand Name
FOR
C
62 mm
CH
36 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
42,5 mm
Diameter pipe
20 mm
J
1.1/16-12 JIC
J1
1.1/16-12 JIC
Material
Steel
Pressure max.
300 bar
Surface treatment
Electro-galvanized / White chromatized
T
20 mm
T1
20 mm
Thread outer
1.1/16-12 JIC
Package size
0 pcs
Barcode
5704295979564
Gross weight
0,28 Kg
Net weight
0,28 Kg
Country of origin
ITA
Intrastat code
73071110
45° bulkhead elbow for connecting two JIC 37° flare interfaces through a panel or bulkhead, while changing the line direction by 45°. The bulkhead design is used when a secure pass-through connection is needed between two sides of a wall, bracket, or manifold plate.
The adapter has male JIC threads on both ends and is selected by the JIC thread size, tube outside diameter, and the available installation space defined by the dimensional envelope.
Typical Applications
- Bulkhead pass-through connections in hydraulic pipe and hose installations
- Routing hydraulic lines where a 45° change of direction is required at the panel
