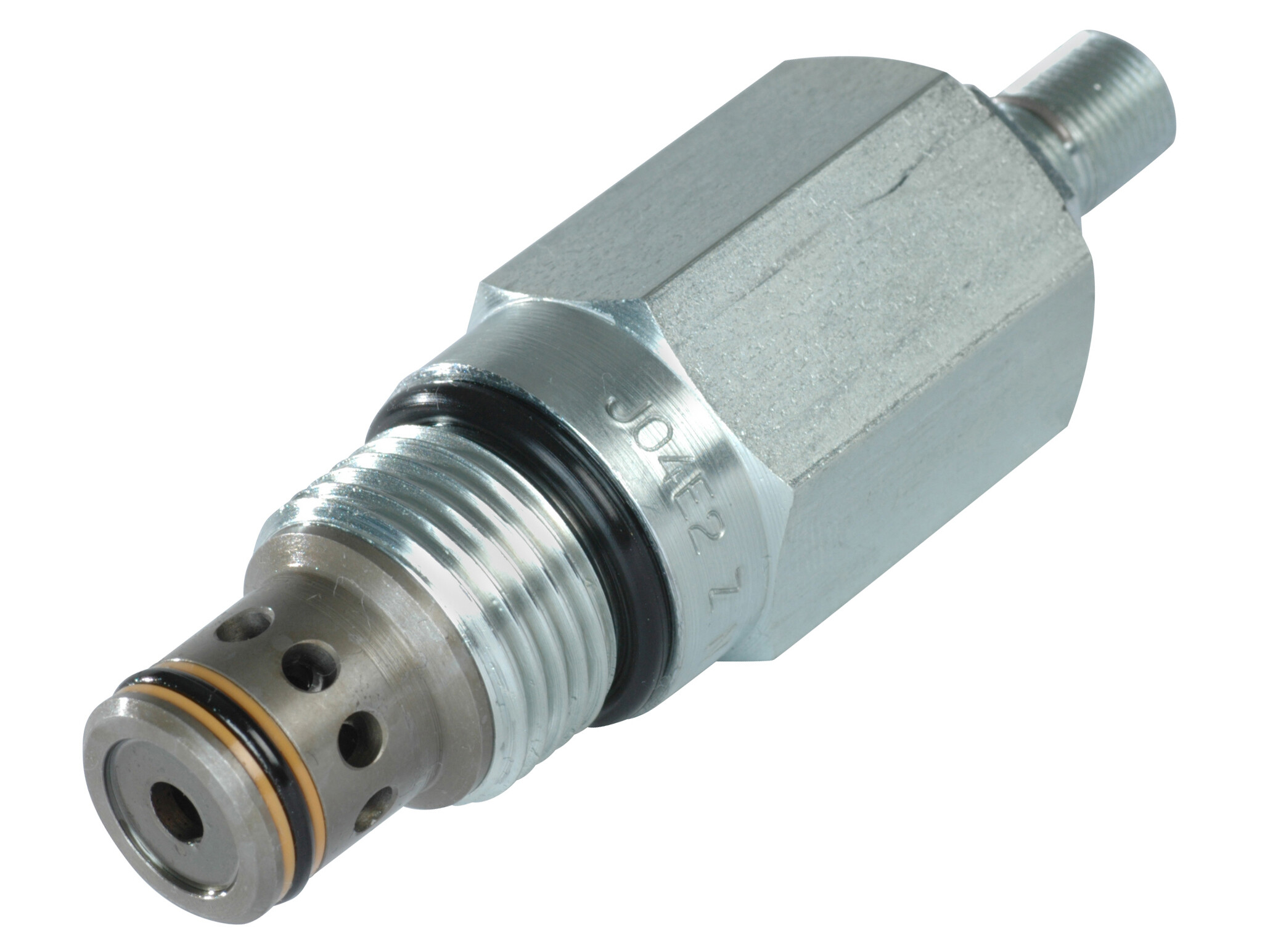

STRYPV. S-H 10-2 420 BAR

Restrictive style, pressure compensated flow control valve.

Features

  • Minimal flow change with pressure variation
  • Reverse flow function
  • Full adjustment from 1-40 LPM
  • Hardened working parts for maximum durability
  • All external parts zinc plated

Partnumber:
J04E2ZN

Package size:
0 pcs

Min. order quantity is:
10 pcs
Brand Name
Hydraspecma

Cavity
C10-2

Flow max. regulated
40 lpm

Flow min. regulated
1 lpm

Flow rate nominal LMin
40 lpm

Inlet flow min.
1 lpm

Oil viscocity recommended
15 - 50 cSt

Pressure compensated
Yes

Pressure max.
420 bar

Temperature max.
+93 °C

Temperature min.
-40 °C

Torque tightening
50 Nm

Valve type
Throttlevalve
Package size
0 pcs

Barcode
5704295349534

Gross weight
0,20 Kg

Net weight
0,20 Kg

Country of origin
gbr

Intrastat code
84812010

Restrictive style, pressure compensated flow control valve.

Features

  • Minimal flow change with pressure variation
  • Reverse flow function
  • Full adjustment from 1-40 LPM
  • Hardened working parts for maximum durability
  • All external parts zinc plated
