Coupling female HP (ISO-A) - DN10 - M18x1.5 (12L) bulkhead
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Partnumber:
HP08-1-N1218
Package size:
0 pcs
Min. order quantity is:
1 pcs

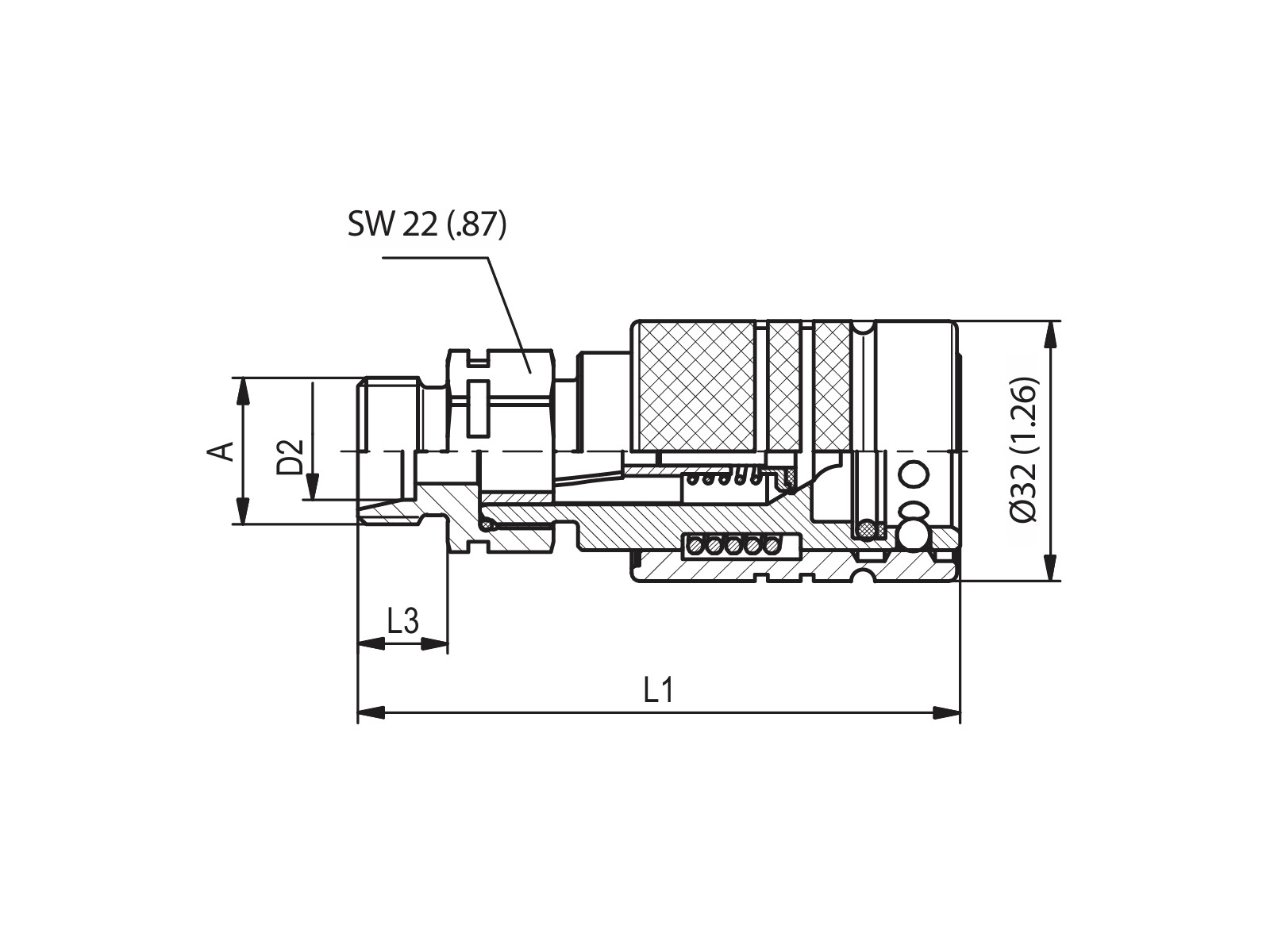

A
M18x1,5
Brand Name
Stauff
Burst Pressure
1000 Bar
Connection
Push (Bulkhead Mount), Push & Actuate Push-Pull Sleeve
D2
12 mm
Diameter pipe
12 mm
Disconnection
Pull (Bulkhead Mount), Actuate Push-Pull Sleeve
Field of application
Agriculture, Forestry Machinery

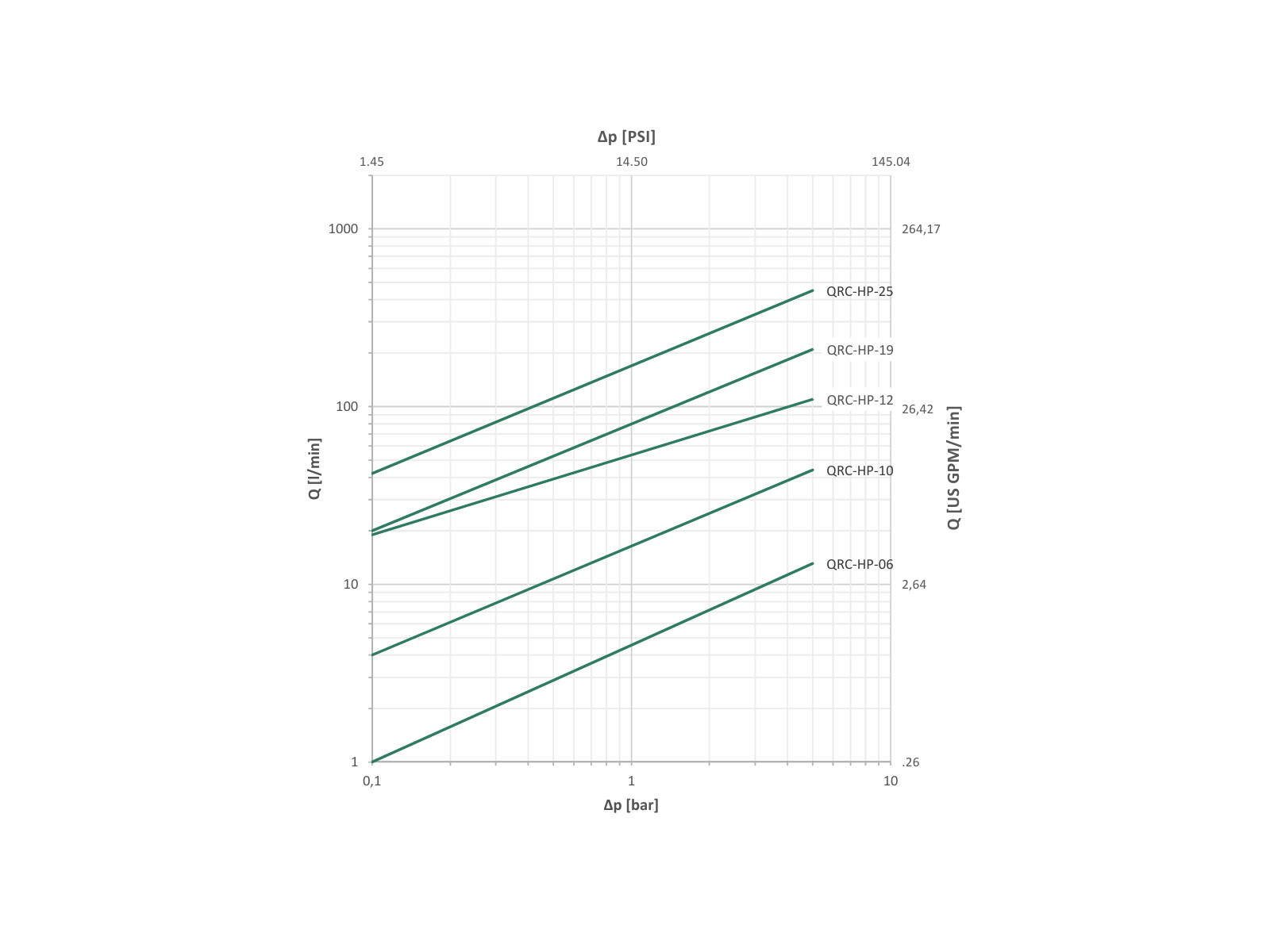

Flow rate nominal LMin
35 lpm
Hexagon
22 mm
ISO size
10
L1
89 mm
L3
26 mm
Material
Carbon steel
Model code
HP08-1-N1218
Pressure max.
250 bar
Pressurized connection
Not allowed
Sealing material
NBR
Series
L
Size
3/8 "
Spillage
1,2 ml
Standard ISO
ISO 7241-1-A
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread outer metric
M18x1,5
Package size
0 pcs
Barcode
5704334125778
Gross weight
0,26 Kg
Net weight
0,26 Kg
Country of origin
DEU
Intrastat code
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
