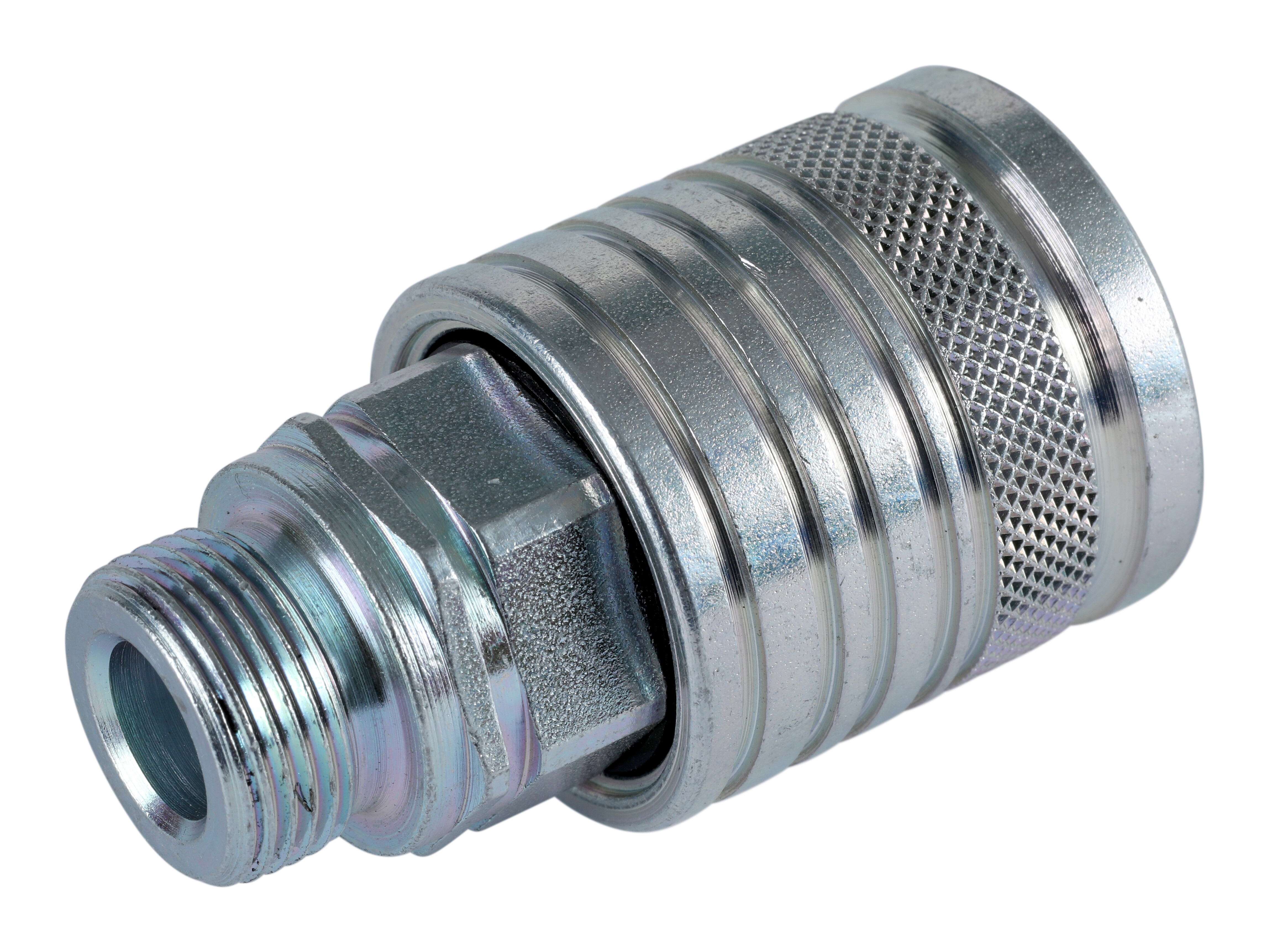

Coupling female HP (ISO-A) - DN12 - M22x1.5 female
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Varenummer:
HP10-1-IMF22
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Stauff
Dimension A metric
M22x1,5
Flow rate nominal LMin
100 lpm
ISO size
12.5
Model code
QRC-HP-12-F-M22-B-W3
Pressure max.
250 bar
Sealing material
NBR
Size
1/2 "
Standard ISO
ISO 7241-1-A
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner metric
M22x1,5
Förpackningsstorlek
0 pcs
Streckkod
5704295249759
Bruttovikt
0,29 Kg
Nettovikt
0,29 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
