    • Coupling male HP (ISO-A) - DN12 - M16x1.5 (10L) bulkhead

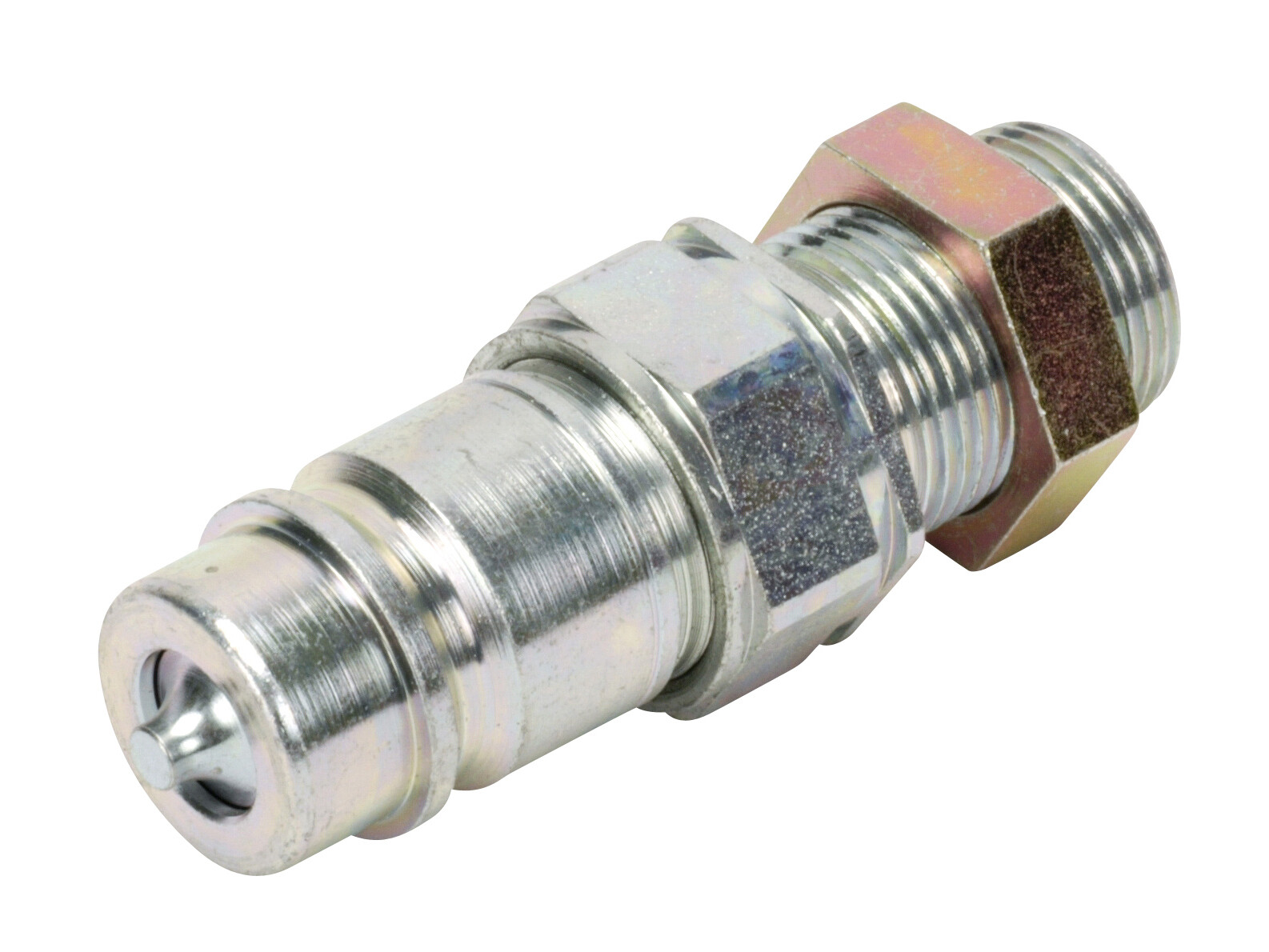

    Coupling male HP (ISO-A) - DN12 - M16x1.5 (10L) bulkhead

    Push-pull: Double acting ball-lock on female part.

    Emergency break-away when panel mounted and connected to a hose..

    Artikelnummer:
    HP10-2-N1016
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    Coupling female HP (ISO-A) - DN12 - M16x1.5 (10L) bulkhead
    Artikelnummer: HP10-1-N1016
    Brand Name
    Stauff
    Diameter pipe
    10 mm
    Dimension E metric
    M16x1,5
    Dimension H
    20.6 mm
    Dimension Y
    27 mm
    Flow rate nominal LMin
    100 lpm
    ISO size
    12.5
    Model code
    HP10-2-N1016
    Pressure max.
    250 bar
    Sealing material
    NBR
    Series
    S
    Size
    1/2 "
    Standard ISO
    ISO 7241-1-A
    Temperature max.
    +100 °C
    Temperature min.
    -20 °C
    Thread outer metric
    M16x1,5
    Förpackningsstorlek
    0 pcs
    Streckkod
    5704295777023
    Bruttovikt
    0,14 Kg
    Nettovikt
    0,14 Kg
    Ursprungsland
    DEU
    Intrastat artikelkod
    84812010

    Push-pull: Double acting ball-lock on female part.

    Emergency break-away when panel mounted and connected to a hose..
