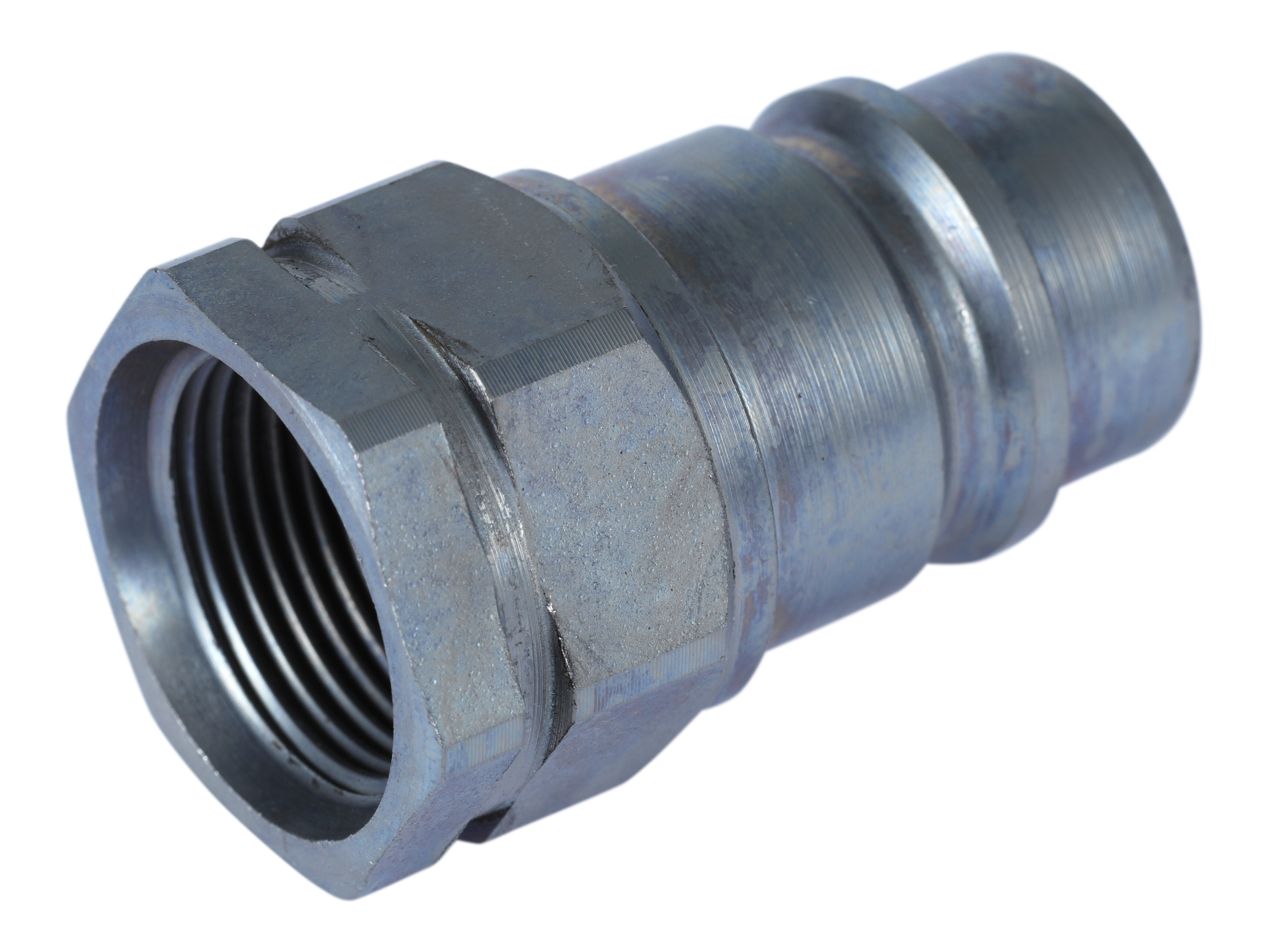

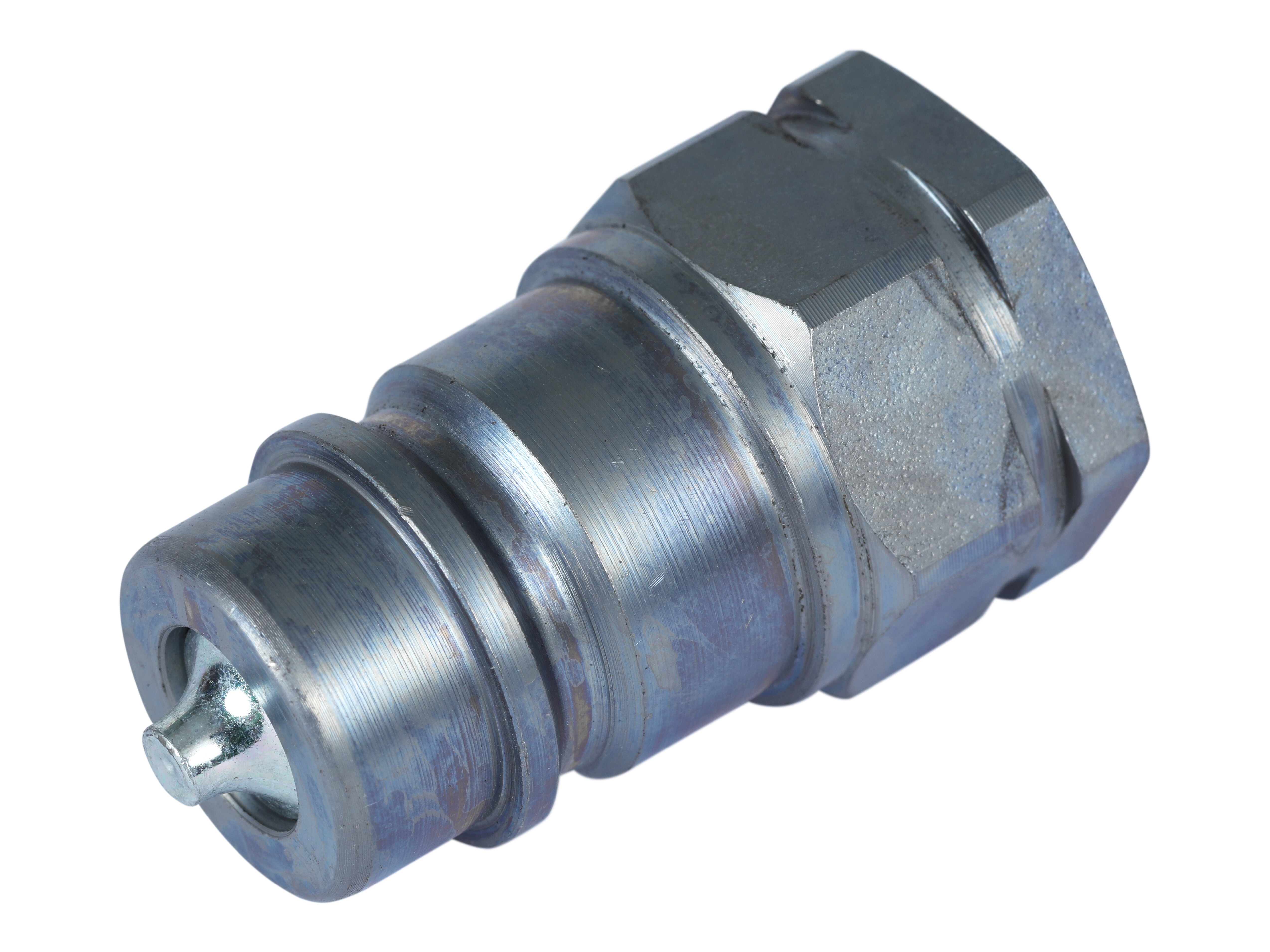

Coupling male HP (ISO-A) - DN12 - M22x1.5 female

Coupling male HP (ISO-A) - DN12 - M22x1.5 female

Push-pull: Double acting ball-lock on female part.

Emergency break-away when panel mounted and connected to a hose..

Partnumber:
HP10-2-IMF22
Package size:
0 pcs
Min. order quantity is:
1 pcs
Rubber cap -standard coupl. 1/ ISO-A 1/2
Partnumber: C52PH
Coupling female HP (ISO-A) - DN12 - M22x1.5 female
Partnumber: HP10-1-IMF22
Fixture for male. Red cap. For HP10
Partnumber: SZ10-1-A0
Fixture for male. With cap. For HP10. Black.
Partnumber: SZ10-1-A1
Brand Name
Stauff
Flow rate nominal LMin
100 lpm
ISO size
12.5
Model code
HP10-2-IMF22
Pressure max.
250 bar
Sealing material
NBR
Size
1/2 "
Standard ISO
ISO 7241-1-A
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner metric
M22x1,5
Package size
0 pcs
Barcode
5704295236704
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
DEU
Intrastat code
84812010

Push-pull: Double acting ball-lock on female part.

Emergency break-away when panel mounted and connected to a hose..
