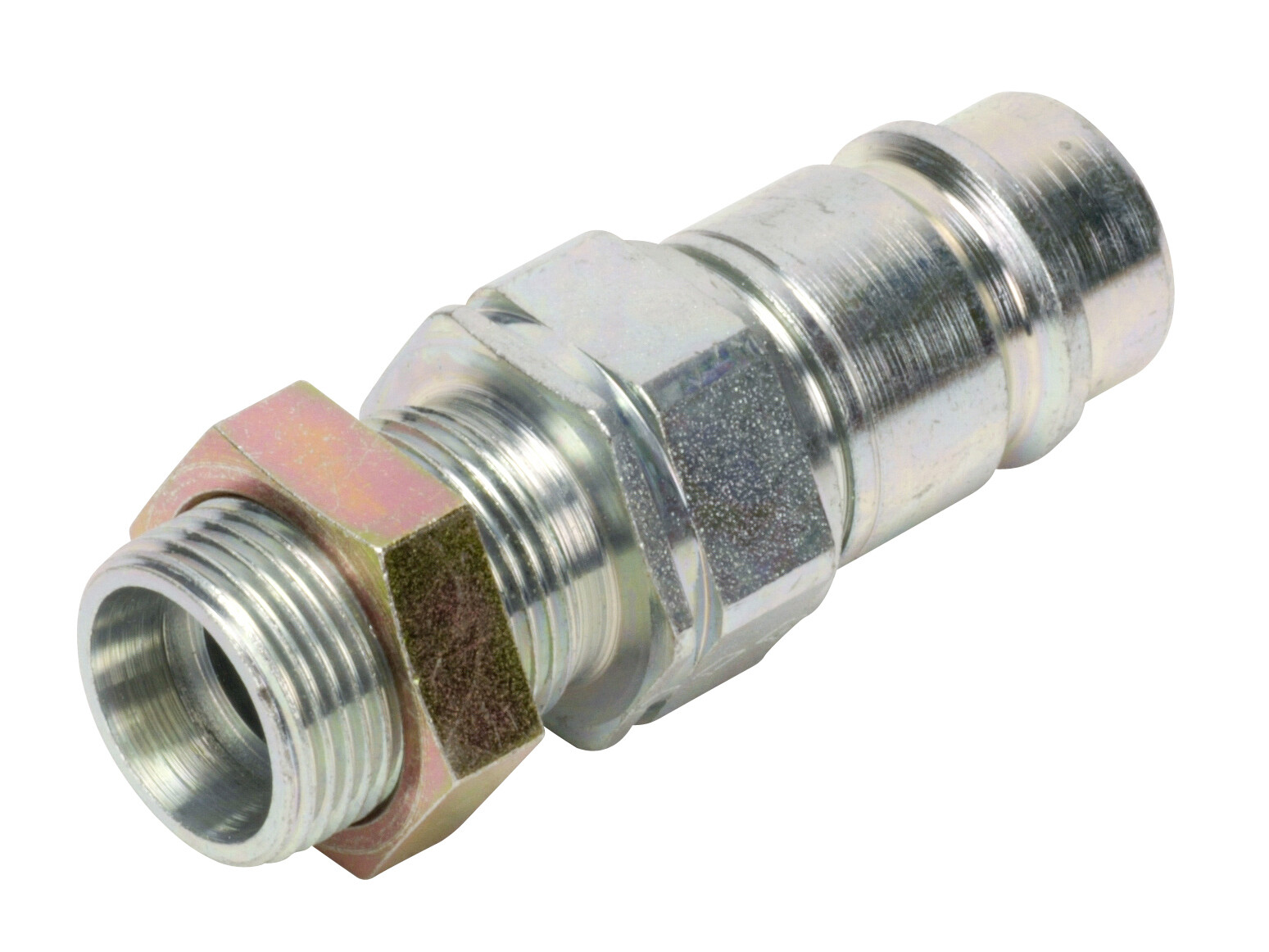

Coupling male HP (ISO-A) - DN12 - M26x1.5 (18L) bulkhead
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Artikelnummer:
HP10-2-N1826
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Stauff
Diameter pipe
18 mm
Dimension C
76 mm
Dimension E metric
M26x1,5
Dimension H
20.6 mm
Dimension Y
27 mm
Flow rate nominal LMin
100 lpm
ISO size
12.5
Model code
HP10-2-N1826
Pressure max.
250 bar
Sealing material
NBR
Series
L
Size
1/2 "
Standard ISO
ISO 7241-1-A
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer metric
M26x1,5
Pakke str.
0 pcs
Stregkode
5704295356563
Brutto vægt
0,20 Kg
Netto vægt
0,20 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
