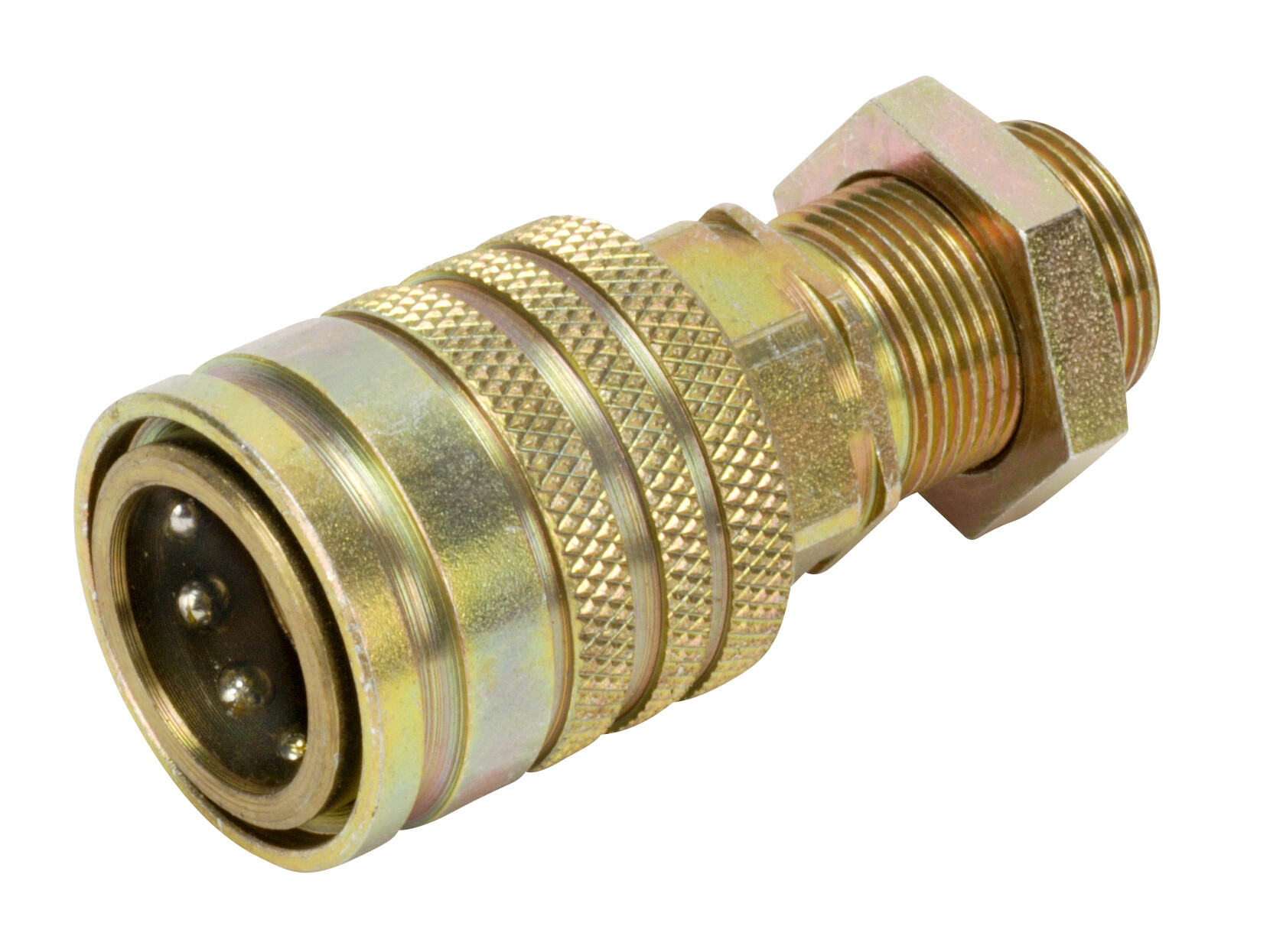

Coupling female HP (ISO-A) - DN12 - M18x1.5 (10S) bulkhead
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Artikelnummer:
HP10-1-T1018
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rör
10 mm
Dimension A metrisk
M18x1,5
Dimension B
80 mm
Dimension D
38 mm
Dimension X
27 mm
Flödeshastighet nominell LMin
100 lpm
Gänga utv. metrisk
M18x1,5
ISO storlek
12.5
Modell kod
HP10-1-T1018
Märke namn
Stauff
Packningsmaterial
NBR
Serie
S
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tryck max.
250 bar
Package size
0 pcs
Barcode
5704295704432
Gross weight
0,29 Kg
Net weight
0,29 Kg
Country of origin
DEU
Intrastat code
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
