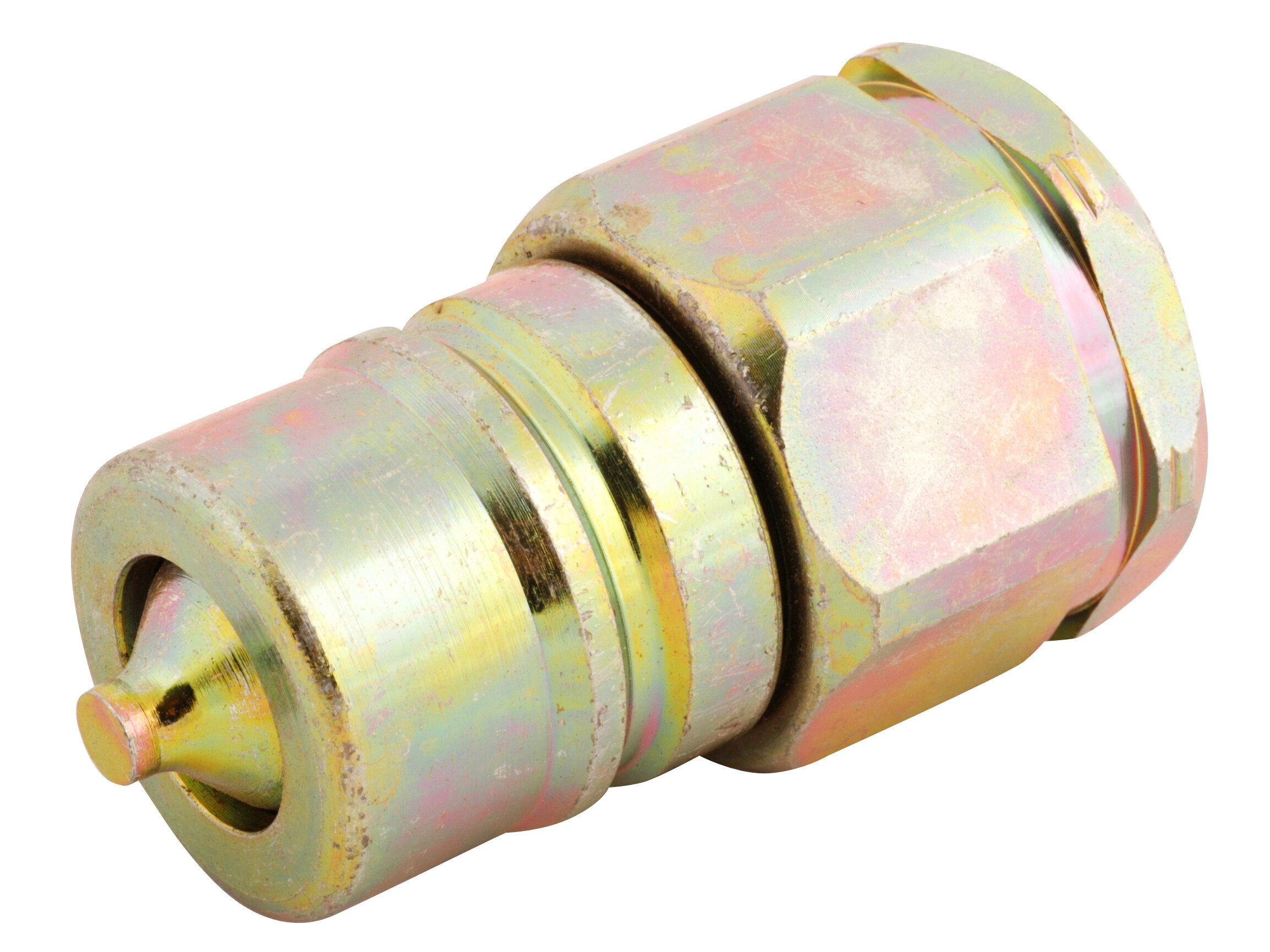

Coupling male HP (ISO-A) - DN25 - 1"BSP female
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Artikelnummer:
HP20-2-IGF16
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Dimension C
72 mm
Dimension E
G 1 BSP
Dimension H
34.5 mm
Dimension Y
41 mm
Flow Nominel
160 lpm
Gevind indvendig
G 1 BSP
ISO størrelse
25
Model kode
HP20-2-IGF16
Mærke navn
Stauff
Pakningsmateriale
NBR
Standard ISO
ISO 7241-1-A
Størrelse
1 "
Temperatur maks.
+100 °C
Temperatur min.
-20 °C
Tryk maks.
250 bar
Förpackningsstorlek
0 pcs
Streckkod
5704295235288
Bruttovikt
0,36 Kg
Nettovikt
0,36 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
