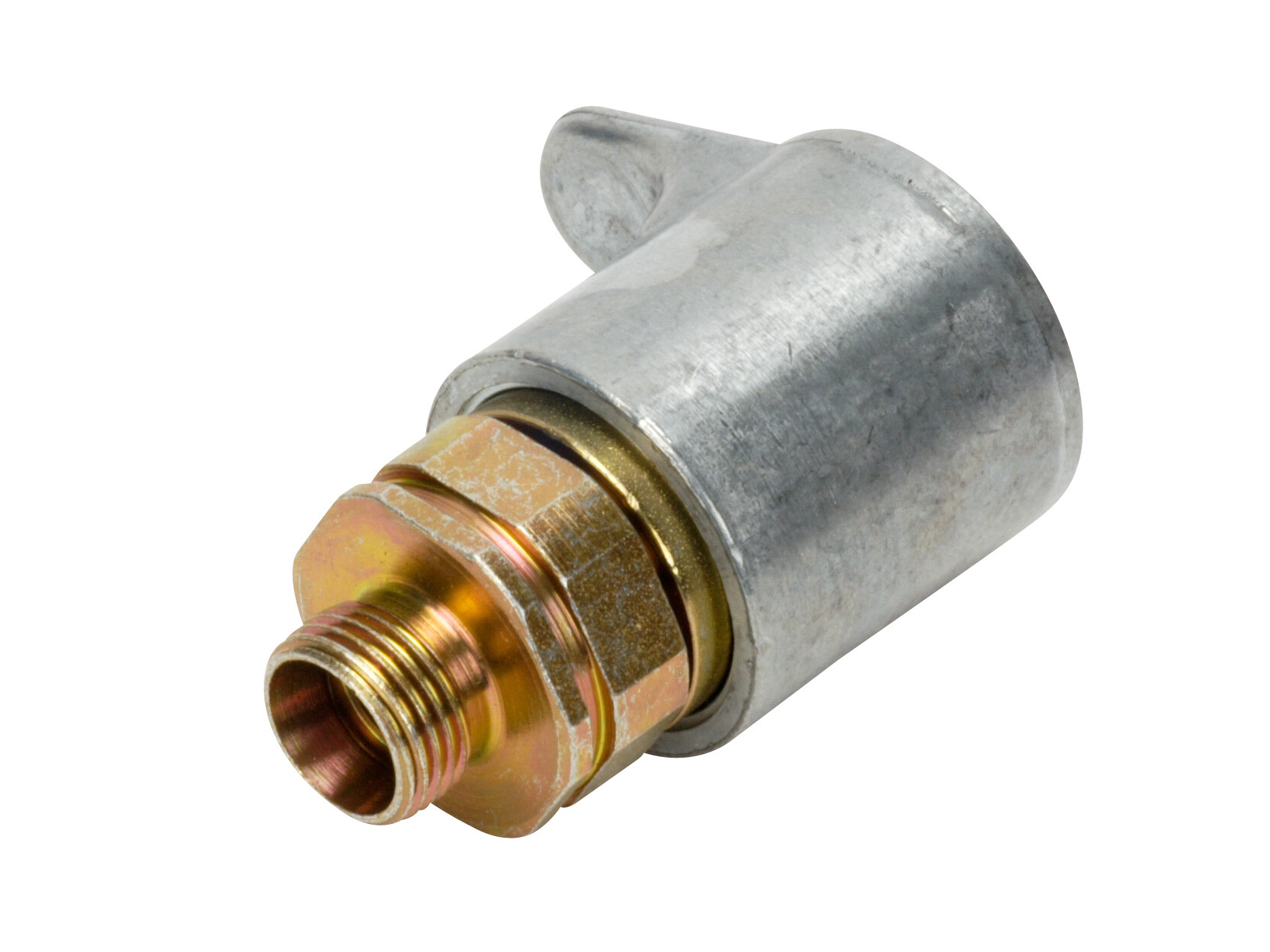

Coupling female ZP (ISO-A) - DN12 - M18x1.5 (12L)
Is often designated as coupling for medium pressures. Widely used for agricultural- and lighter industrial applications.
With fingergrip
Push-pull = Double acting ball-lock on female part.
Artikelnummer:
ZP10-1-L1218
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rör
12 mm
Dimension A metrisk
M18x1,5
Dimension B
70 mm
Dimension D
38 mm
Dimension X
27 mm
Flödeshastighet nominell LMin
100 lpm
Gänga utv. metrisk
M18x1,5
ISO storlek
12.5
Modell kod
ZP10-1-L1218
Märke namn
Stauff
Packningsmaterial
NBR
Serie
L
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tryck max.
250 bar
Förpackningsstorlek
0 pcs
Streckkod
5704295236780
Bruttovikt
0,28 Kg
Nettovikt
0,28 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Is often designated as coupling for medium pressures. Widely used for agricultural- and lighter industrial applications.
With fingergrip
Push-pull = Double acting ball-lock on female part.
