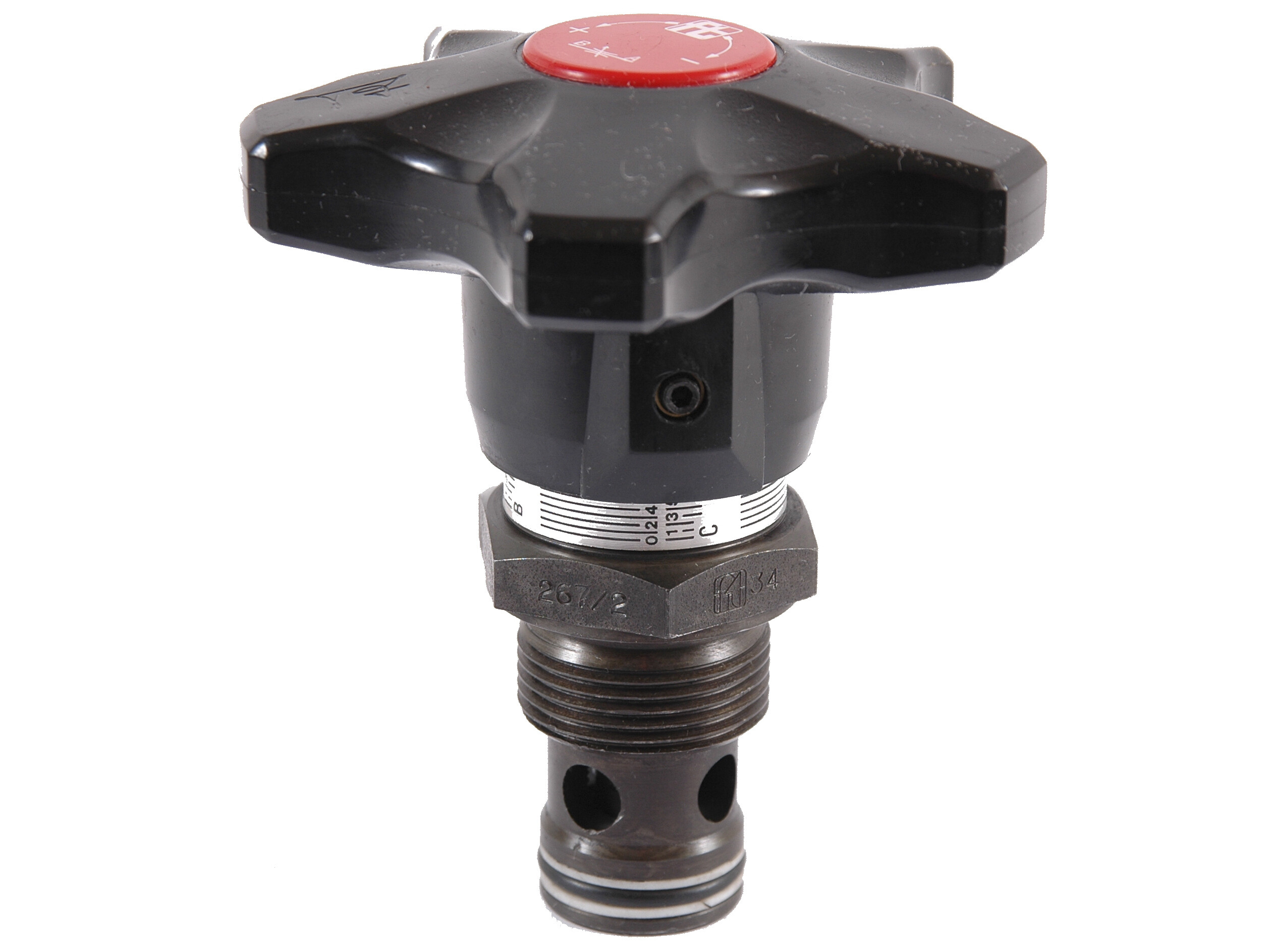

3/8 needle valve cartridge
3/8 needle valve cartridge
Partnumber:
FT267/1-38
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Tognella
Dimension A metric
M20x1,5
Dimension B
16 mm
Dimension C
13 mm
Dimension CH
27 mm
Dimension D
17.5 mm
Dimension E
30.5 mm
Dimension F1
70 mm
Dimension G
48.5 mm
Dimension H
78.5 mm
Dimension L
9 mm
Flow rate nominal LMin
38 lpm
Pressure compensated
No
Pressure max.
320 bar
Temperature max.
+100 °C
Temperature min.
-20 °C
Package size
0 pcs
Barcode
5704295026633
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
ITA
Intrastat code
84812010
3/8 needle valve cartridge
