Needle valve cartridge UNF7/8-
FT 266/2 is a double-acting flow control valve that control a free flow in both directions.
Artikelnummer:
FT266/2-78
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Tognella
Dimension A
7/8-14 UNF
Dimension B
15.9 mm
Dimension C
17.5 mm
Dimension CH
27 mm
Dimension D
15 mm
Dimension E
32.5 mm
Dimension F
33 mm
Dimension G
46 mm
Dimension H
78.5 mm
Dimension L
8 mm

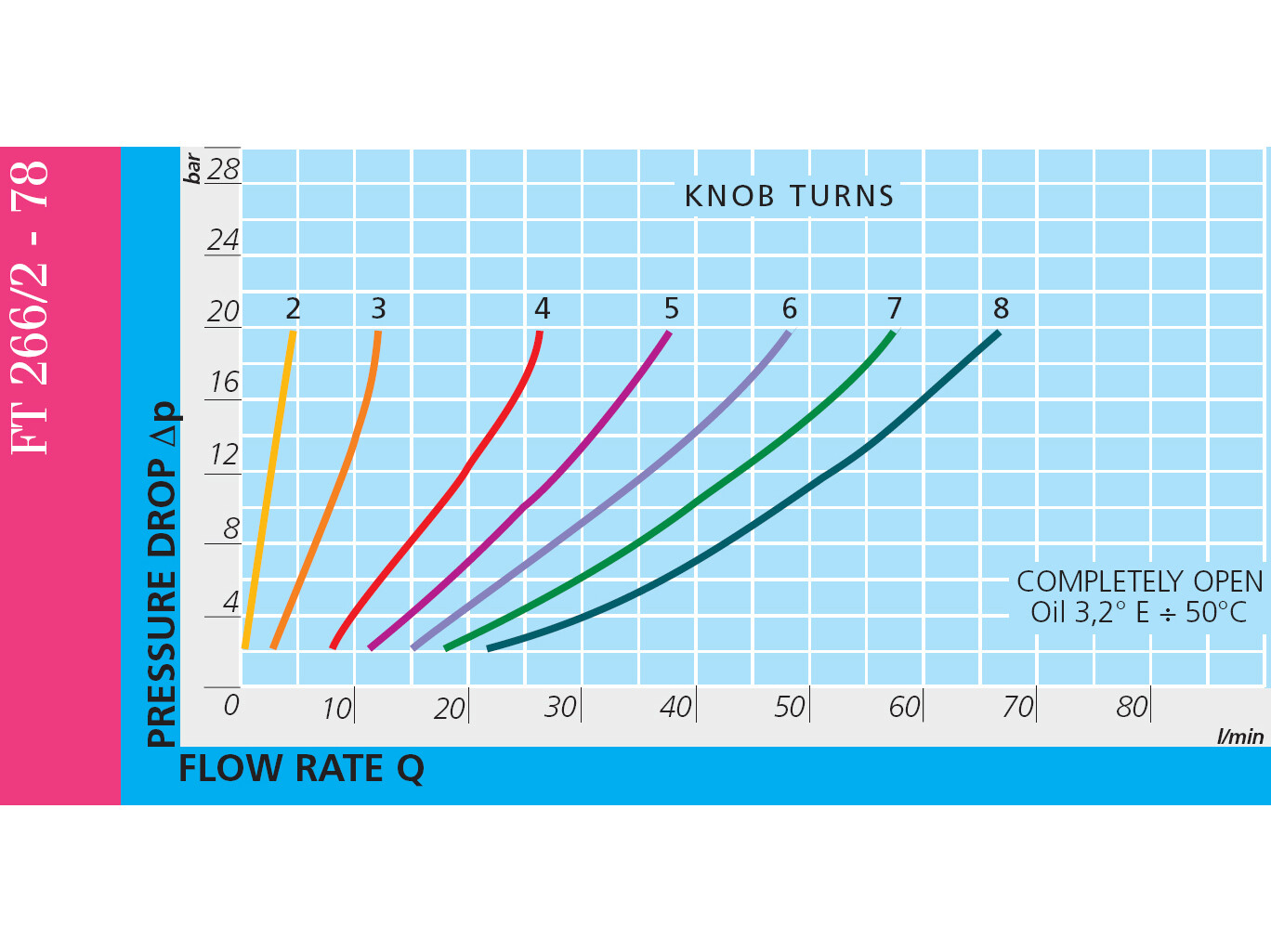

Flow rate nominal LMin
65 lpm
Pressure compensated
No
Pressure max.
320 bar
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread
7/8-14 UNF
Package size
0 pcs
Barcode
5704295927725
Gross weight
0,12 Kg
Net weight
0,12 Kg
Country of origin
ITA
Intrastat code
84812010
FT 266/2 is a double-acting flow control valve that control a free flow in both directions.
