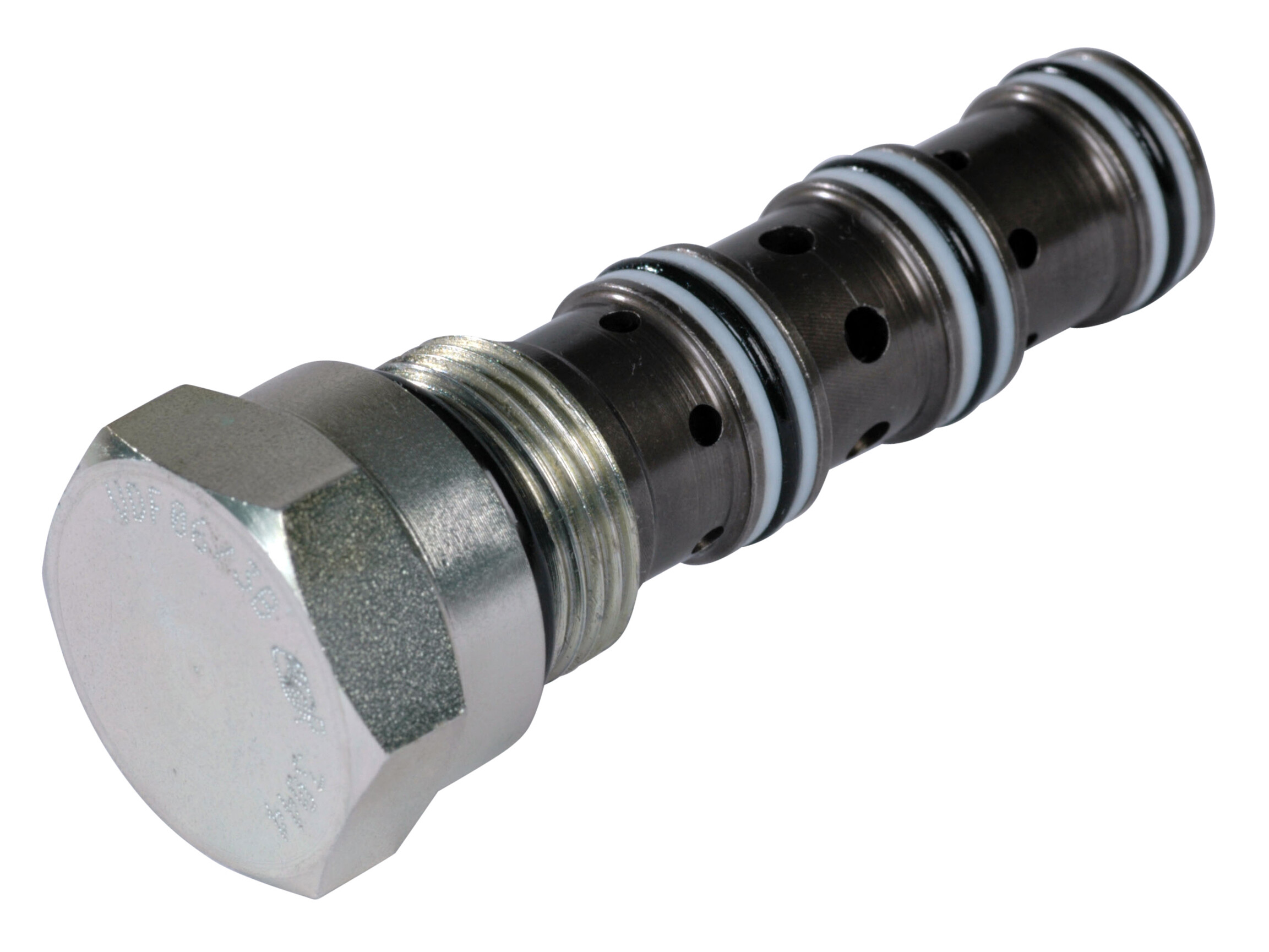

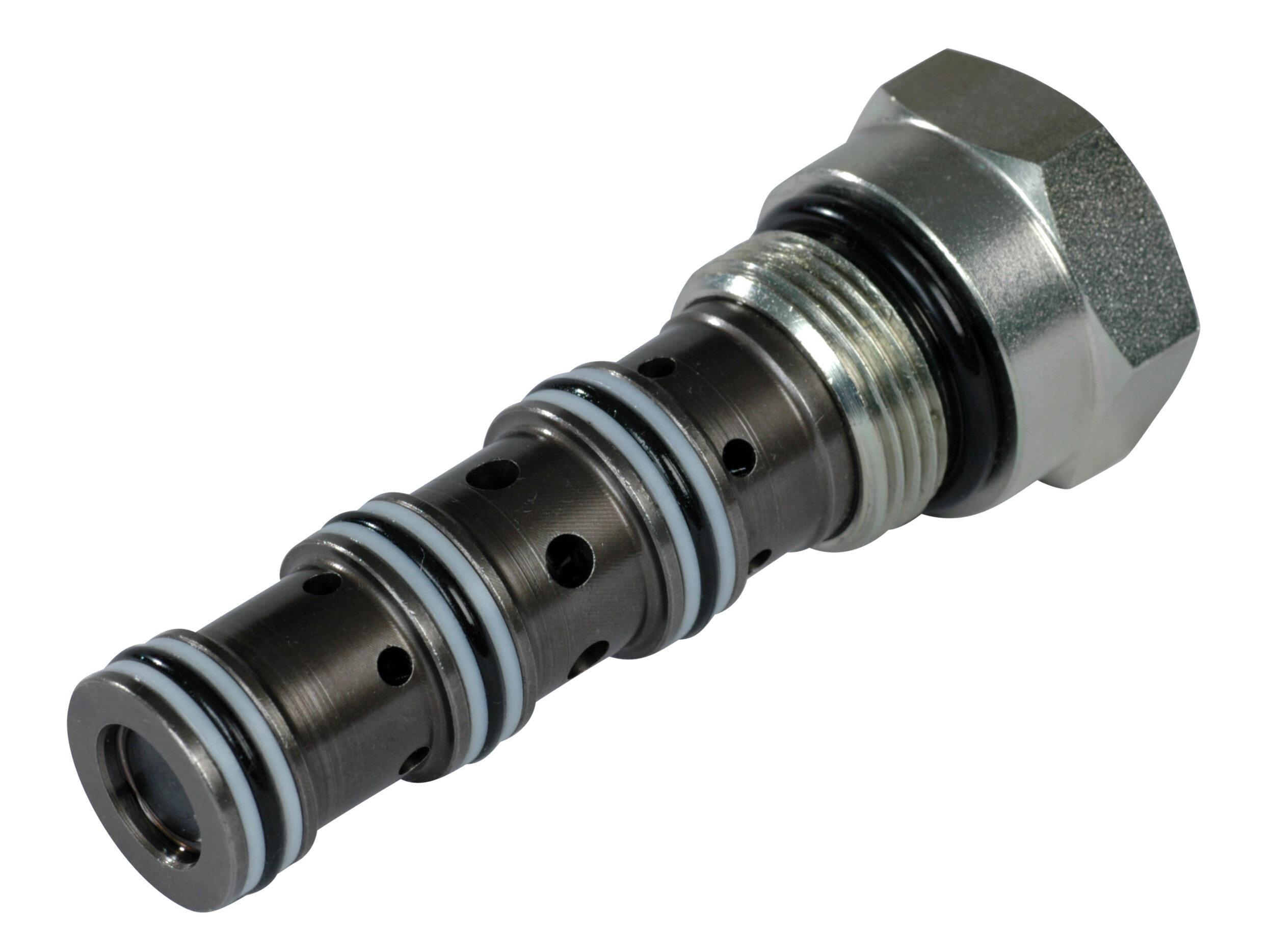

Flow Divider ventil 45l/m 3-6.5l/m VDF 06-3-00-B

This valve is a fixed ratio, pressure compensated fl­ow divider/combiner.

Partnumber:
820205519

Package size:
0 pcs

Min. order quantity is:
1 pcs
Housing NCS06/4--L 3/8
Partnumber: 922500913
Housing NCS06/4--L 1/2
Partnumber: 922501013
Housing NCS06/4--LD 3/8
Partnumber: 922506013
Housing NCS06/4--LD 1/2
Partnumber: 922506113
Brand Name
Danfoss

Cavity
NCS06/4

Contamination level max.
20/18/14 - ISO 4406

Flow max. regulated
6.5 lpm

Flow min. regulated
3 lpm

Flow rate nominal LMin
45 lpm

Material
Steel

Model code
VDF06-3-00-B

Oil viscocity recommended
12 - 54 cSt

Pressure compensated
Yes

Pressure max.
210 bar

Sealing material
NBR

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
44 - 50 Nm
Package size
0 pcs

Barcode
5704334468141

Gross weight
0,16 Kg

Net weight
0,16 Kg

Country of origin
ITA

Intrastat code
84812010

This valve is a fixed ratio, pressure compensated fl­ow divider/combiner.
