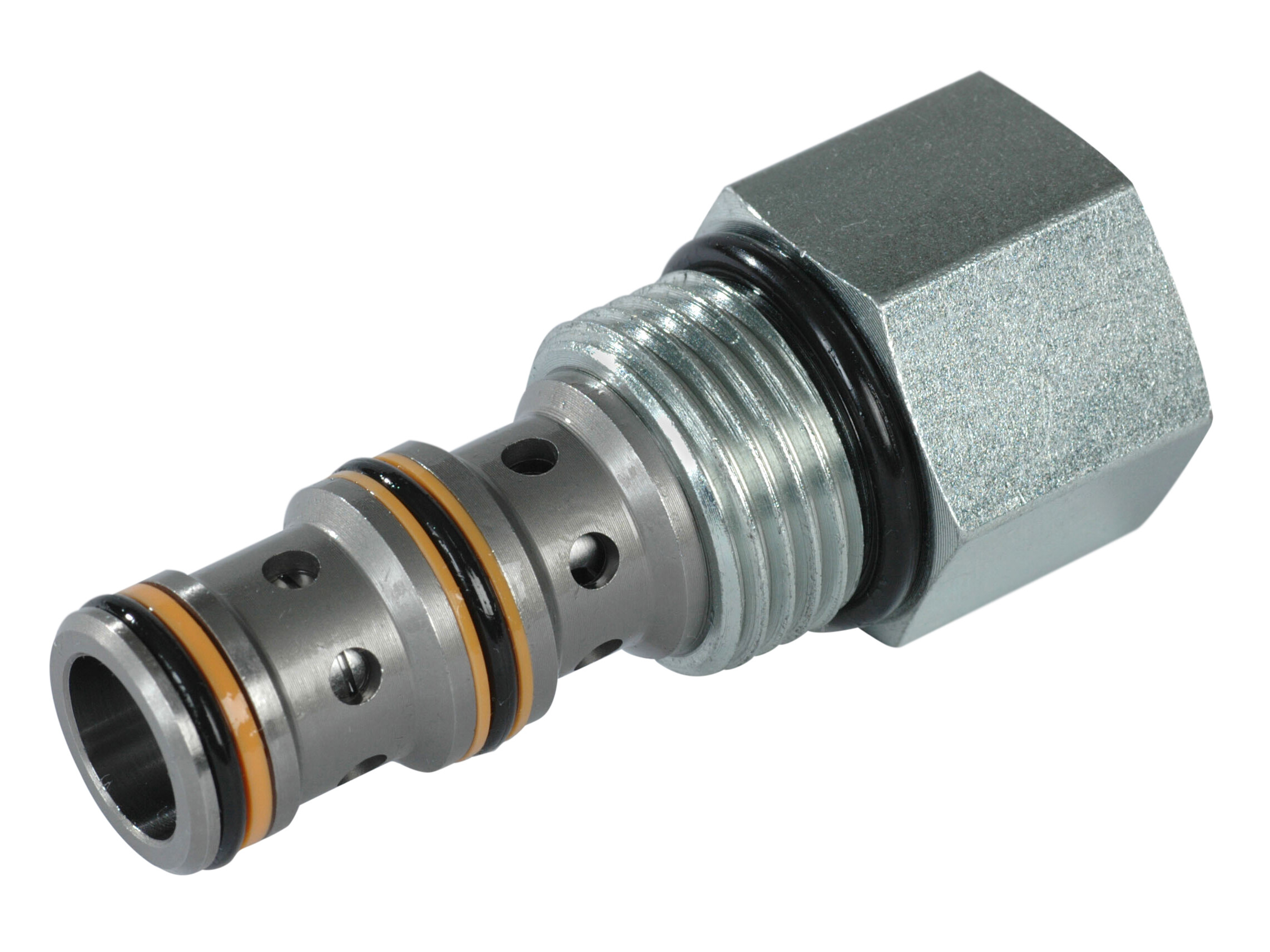

Fixed Prio. Flow Cont. valve 38l/m 4l/m CP310-1-B-0-1.0

Fixed Prio. Flow Cont. valve 38l/m 4l/m CP310-1-B-0-1.0

This valve is a fixed, pressure compensated priority-type ­flow control valve.

Partnumber:
130140
Package size:
0 pcs
Min. order quantity is:
1 pcs
HOUSING, SDC10-3-SE3B (3/8) SDC10-3-SE3B (3/8)
Partnumber: 922514310
Ventilhus SDC10-3-SE4B 1/2
Partnumber: 922514410
Housing SDC10-3--SI3B (3/8)
Partnumber: 922514510
KIT, SEAL CP10-3 CAV BUNA N #
Partnumber: 120240
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow max. regulated
4 lpm
Flow min. regulated
4 lpm
Inlet flow max.
38 lpm
Model code
CP310-1-B-0-1.0
Oil viscocity recommended
12 - 54 cSt
Pressure compensated
No
Pressure max.
210 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
41 - 47 Nm
Package size
0 pcs
Barcode
5704334467274
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
ITA
Intrastat code
84812010

This valve is a fixed, pressure compensated priority-type ­flow control valve.

Product datasheet
