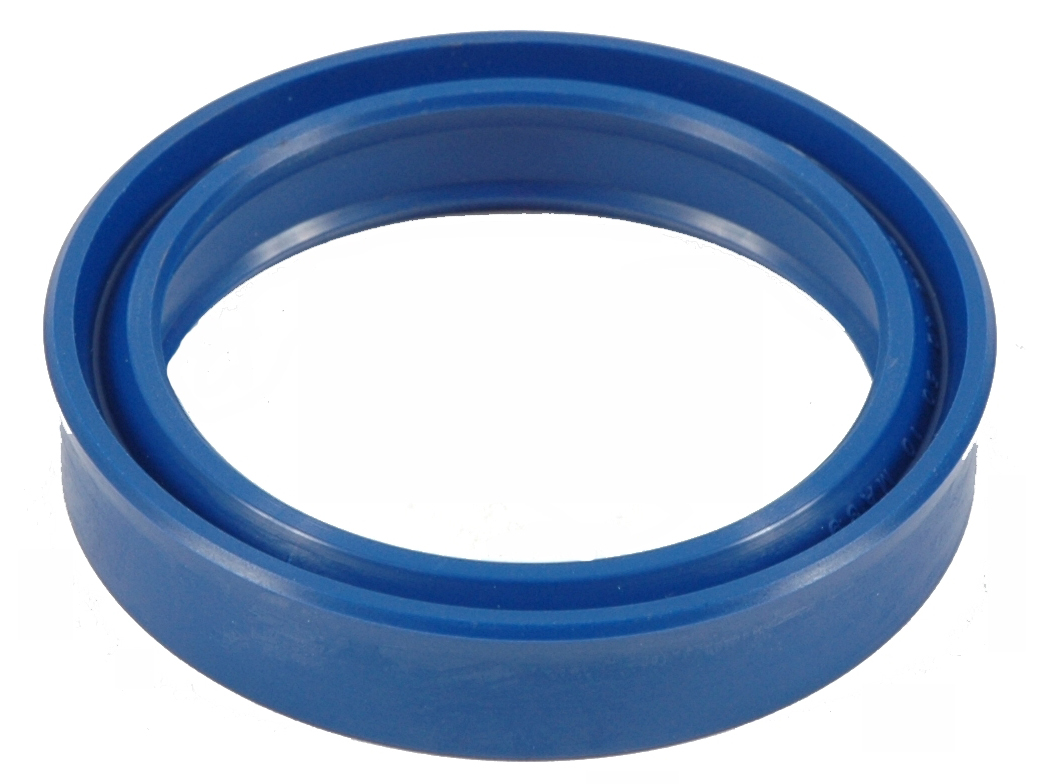

U-cuff in Polyurethane, NI, inner diameter <50 mm

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter inv.	Diameter utv.	Tryck max.
NI12X18X06.3	Piston seal	12 mm	18 mm	400 bar
NI12X22X08	Piston seal	12 mm	22 mm	400 bar
NI16X22X05	Piston seal	16 mm	22 mm	400 bar
NI16X26X08	Piston seal	16 mm	26 mm	400 bar
NI18X26X06	Piston seal	18 mm	26 mm	400 bar
NI20X26X05	Piston seal	20 mm	26 mm	400 bar
NI20X28X05.8	Piston seal	20 mm	28 mm	400 bar
NI20X30X08	Piston seal	20 mm	30 mm	400 bar
NI22X30X06	Piston seal	22 mm	30 mm	400 bar
NI25X33X05.7	Piston seal	25 mm	33 mm	400 bar
NI25X33X10	Piston seal	25 mm	33 mm	400 bar
NI25X35X08	KOLVSTÅNGSTÄTNING (8) PUR			400 bar
NI30X40X08	Piston seal	30 mm	40 mm	400 bar
NI30X40X10	Piston seal	30 mm	40 mm	400 bar
NI32X40X08	Piston seal	32 mm	40 mm	400 bar
NI32X42X10	Piston seal	32 mm	42 mm	400 bar
NI35X43X08	Piston seal	35 mm	43 mm	400 bar
NI35X45X08	Piston seal	35 mm	45 mm	400 bar
NI35X45X10	Piston seal	35 mm	45 mm	400 bar
NI35X50X10	Piston seal	35 mm	50 mm	400 bar
NI40X50X10	Piston seal	40 mm	50 mm	400 bar
NI40X60X12	Piston seal	40 mm	60 mm	400 bar
NI45X53X10	Piston seal	45 mm	53 mm	400 bar
NI45X55X10	Piston seal	45 mm	55 mm	400 bar
NI45X60X10	Piston seal	45 mm	60 mm	400 bar
NI45X65X10	Piston seal	45 mm	65 mm	400 bar

Temperatur max.

+100

Tillverkningsmaterial

Polyurethane

Tryck max.

400
