Stud fitting - ø28L female x 1" BSP - WD seal
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Varenummer:
FEGED28LR1WD
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Diameter rør
28 mm

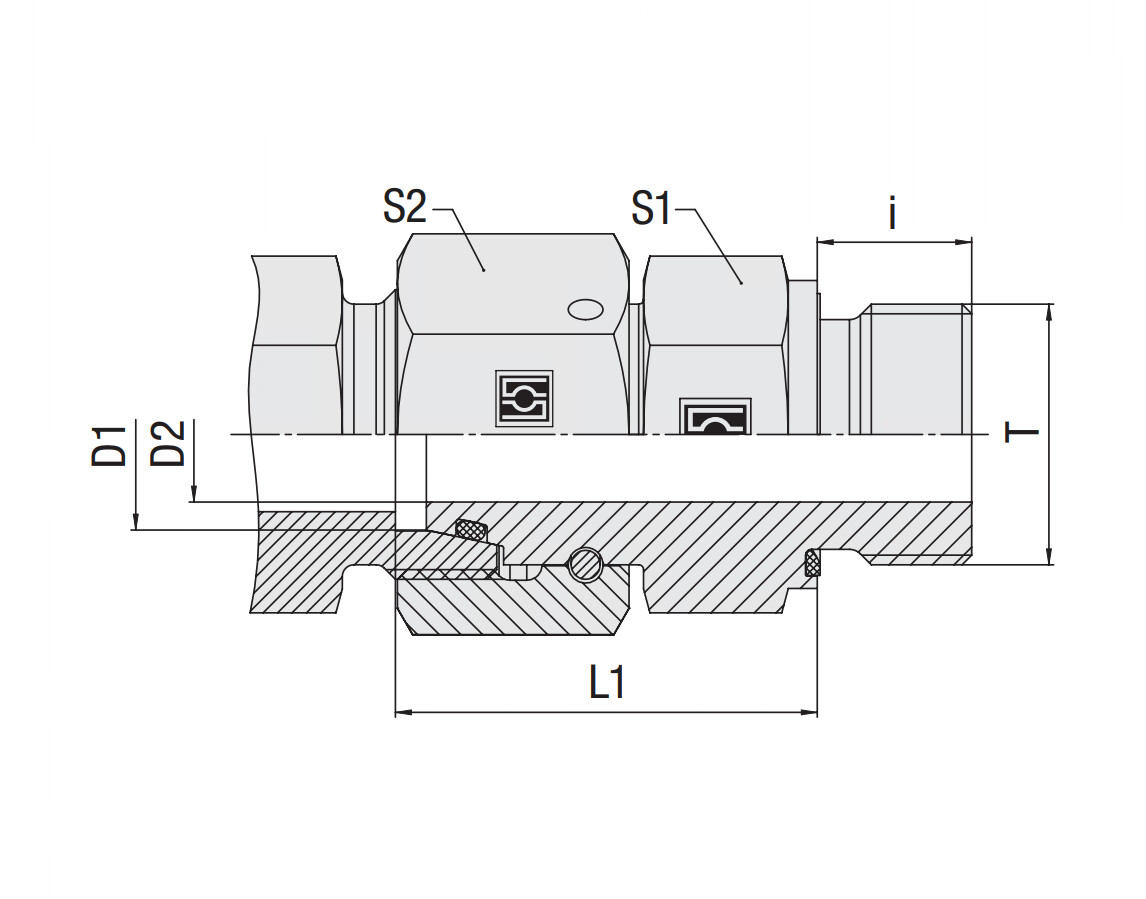

Dimension D1
28 mm
Dimension D2
22 mm
Dimension L1
35 mm
Dimension S1
41 mm
Dimension S2
41 mm
Dimension i
18 mm
Gevind indvendig metrisk
M36x2
Gevind udvendig
G 1 BSP
Materiale
Steel
Model kode
FI-EGED-28LR-WD-BV-W3-DKO
Mærke navn
Stauff
Overfladebehandling
Zinc-Nickel plated
REACH compliant
Yes
RoHs compliant
Yes
Serie
L
Sikkerhedsfaktor
4
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Thread T
G 1 BSP
Tilspændingsmoment
310 Nm
Tryk maks.
250 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334707769
Gross weight
0,29 Kg
Net weight
0,29 Kg
Country of origin
DEU
Intrastat code
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
