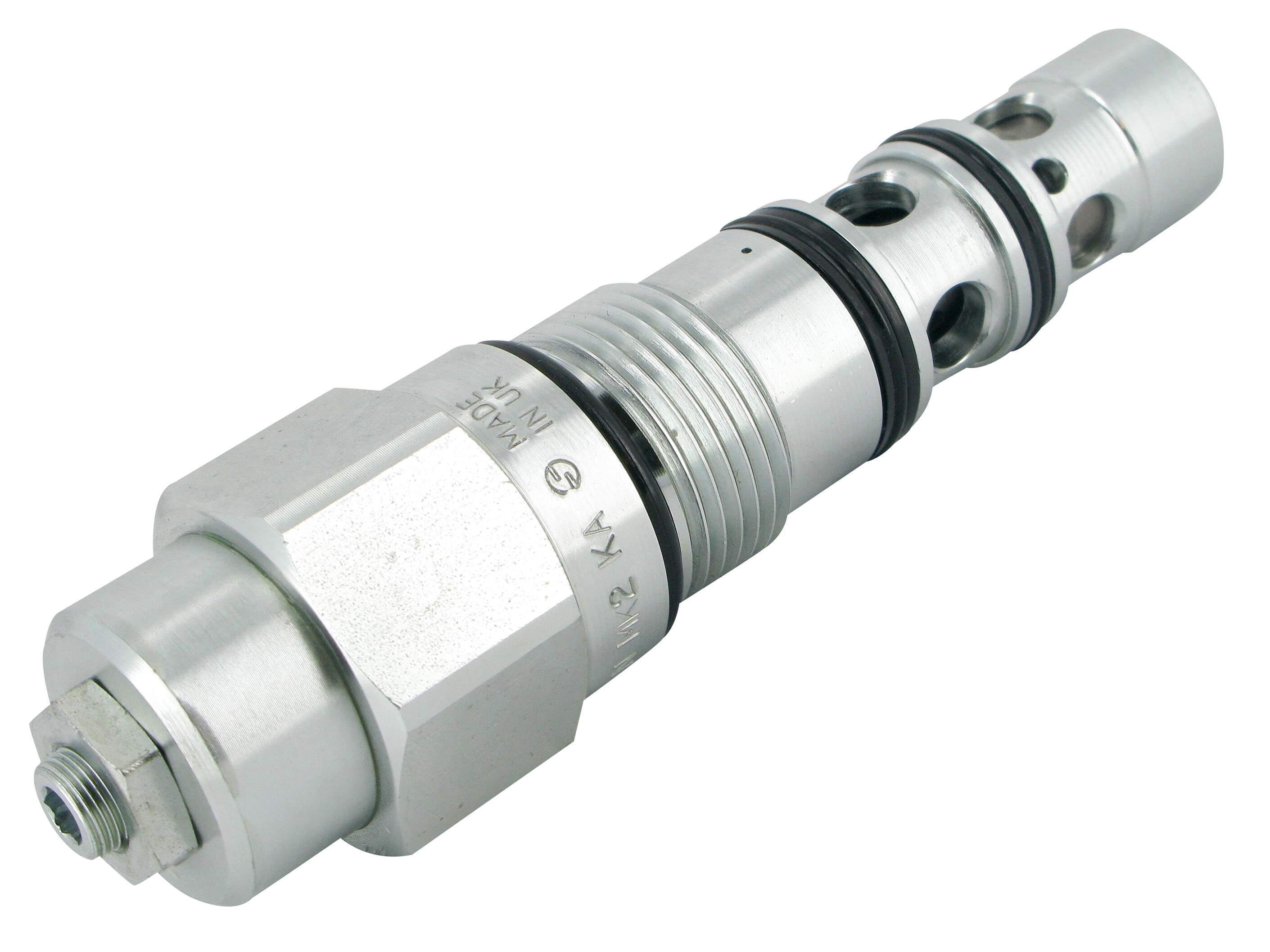

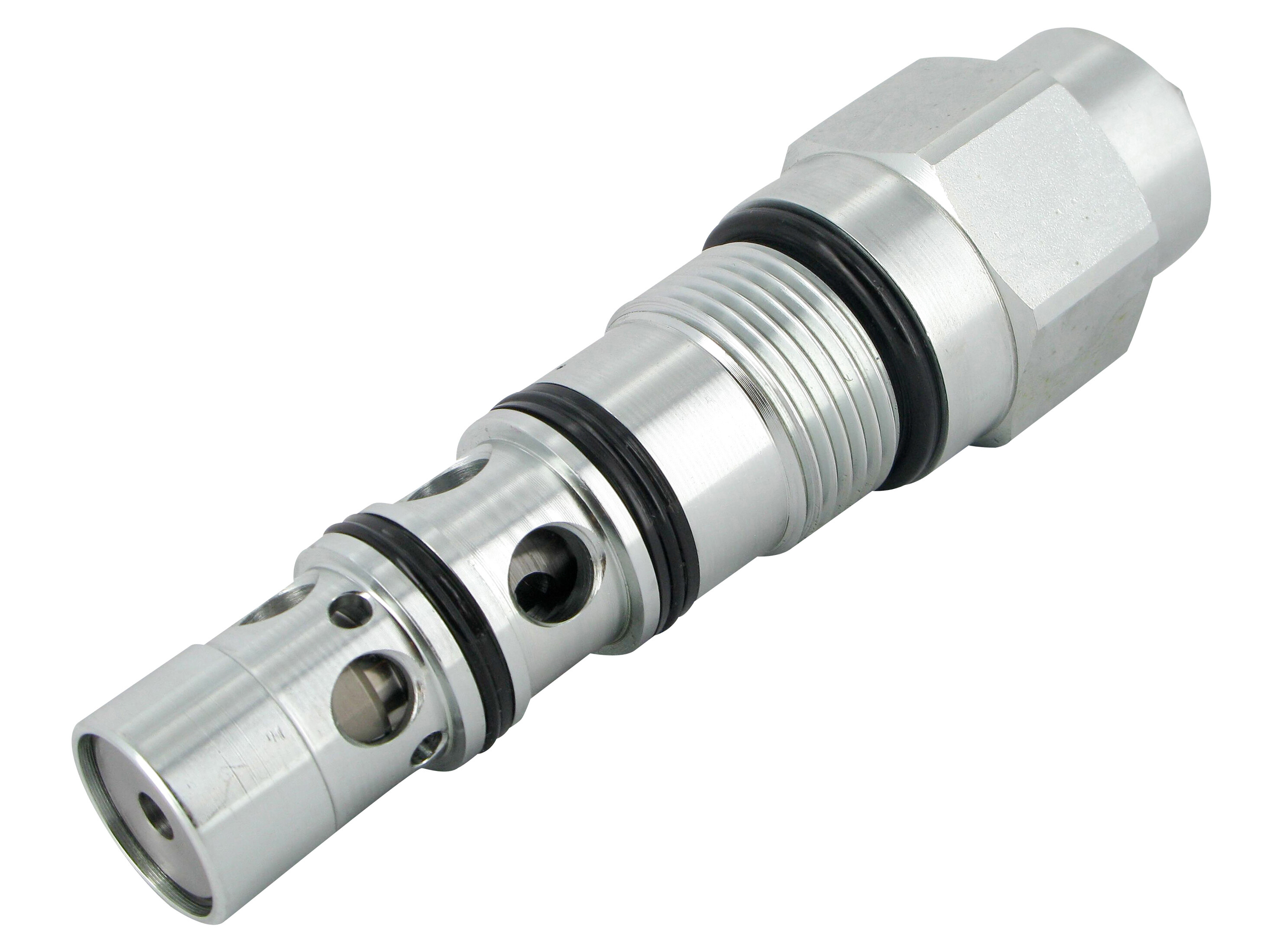

Load control valve, Sterling

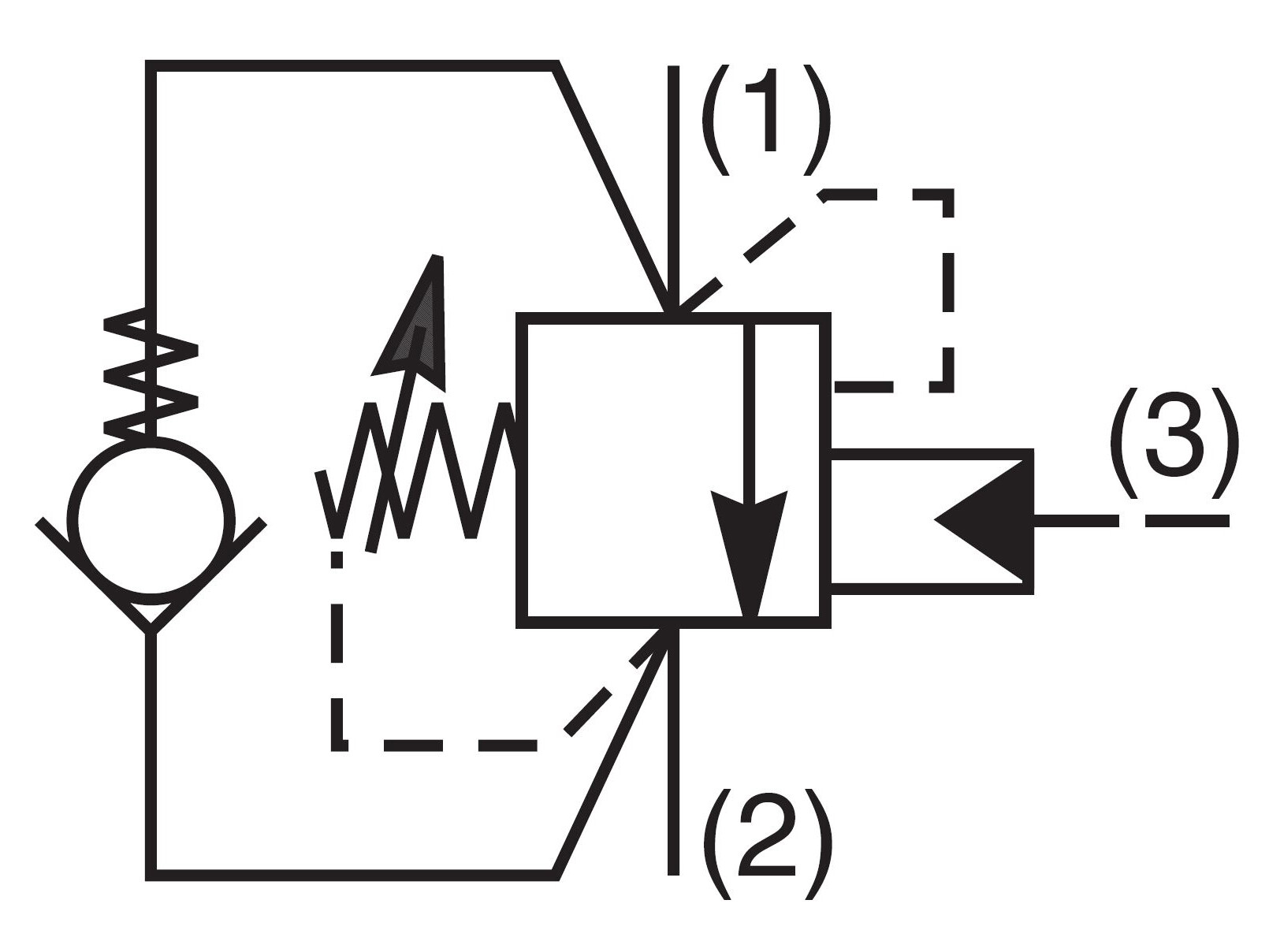

Cartridge Style Counterbalance Valve. Pilot assisted, designed for motion control applications.
Features
- Poppet construction for minimal leakage.
- Incorporates direct acting relief valve for overload protection.
- Includes reverse check valve within body, saving space and minimizing installation cost.
- Excellent control and very good stability.
- Hardened working parts for maximum durability.
- All external parts zinc plated.
Partnumber:
E2H60ZN
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Hydraspecma
Cavity
3C
Flow rate nominal LMin
120 lpm
Oil viscocity recommended
15 - 50 cSt
Pilot ratio
1,75:1
Pressure max.
350 bar
Pressure setting max.
350 bar
Pressure setting min.
50 bar
Sealing material
NBR
Torque tightening
85 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704295028637
Bruttovikt
0,57 Kg
Nettovikt
0,57 Kg
Ursprungsland
GBR
Intrastat artikelkod
84812010
Cartridge Style Counterbalance Valve. Pilot assisted, designed for motion control applications.
Features
- Poppet construction for minimal leakage.
- Incorporates direct acting relief valve for overload protection.
- Includes reverse check valve within body, saving space and minimizing installation cost.
- Excellent control and very good stability.
- Hardened working parts for maximum durability.
- All external parts zinc plated.
