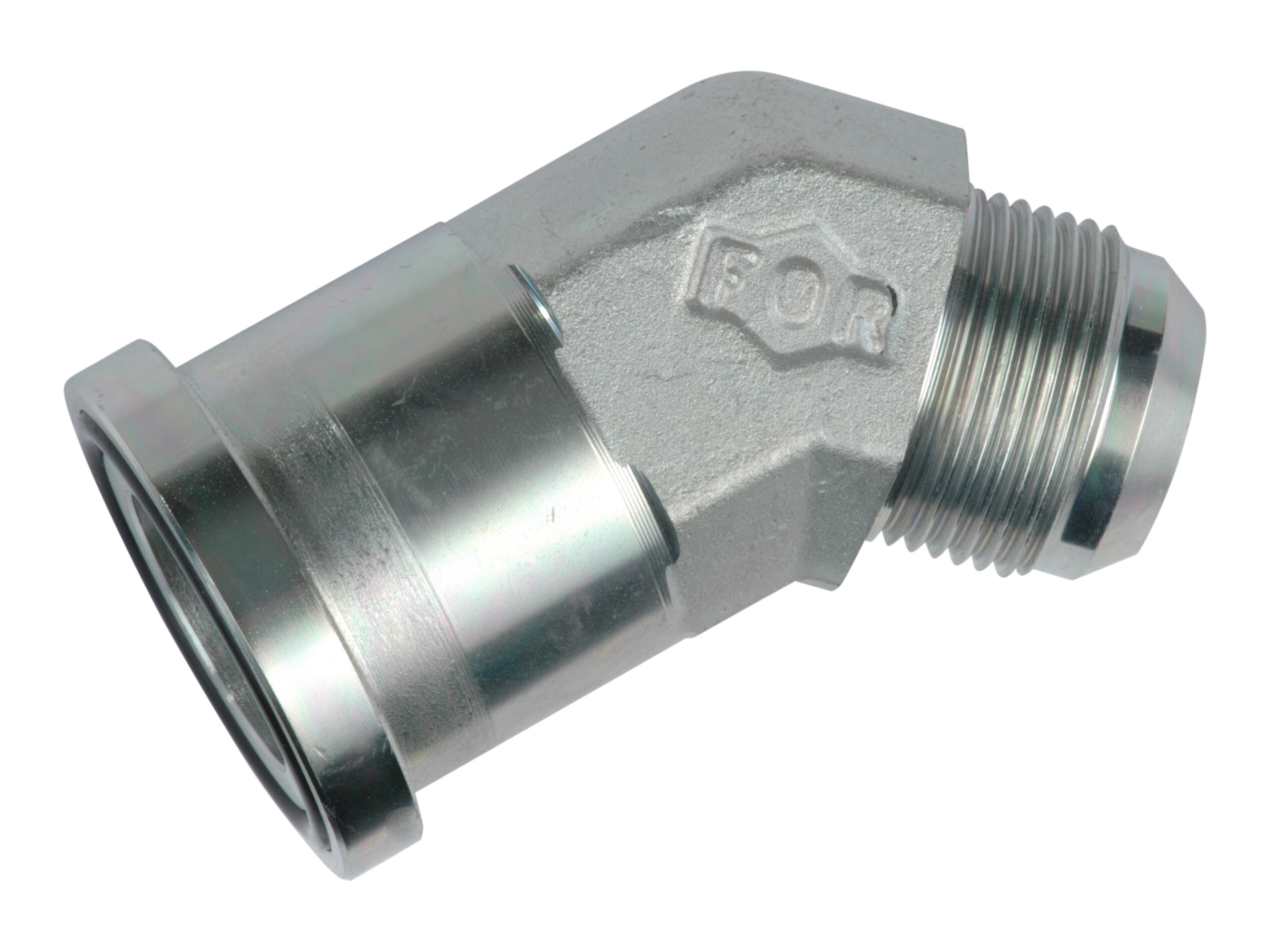

Elbow1.5/16 JICx1.1/4 flange 45 °
Elbow1.5/16 JICx1.1/4 flange 45 °
Partnumber:
26PA1620
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension A
58.72 mm
Dimension B
30.18 mm
Dimension I
42 mm
Dimension T
25 mm
Dimension l1
37 mm
Flange
1.1/4 "
Flange SAE/DIN
3000 PSI
Material
Steel
Pressure max.
276 bar
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Electro zinc plated
Thread outer
1.5/16-12 JIC
Package size
0 pcs
Barcode
5704295991320
Gross weight
0,37 Kg
Net weight
0,37 Kg
Country of origin
ITA
Intrastat code
73071110
Elbow1.5/16 JICx1.1/4 flange 45 °
