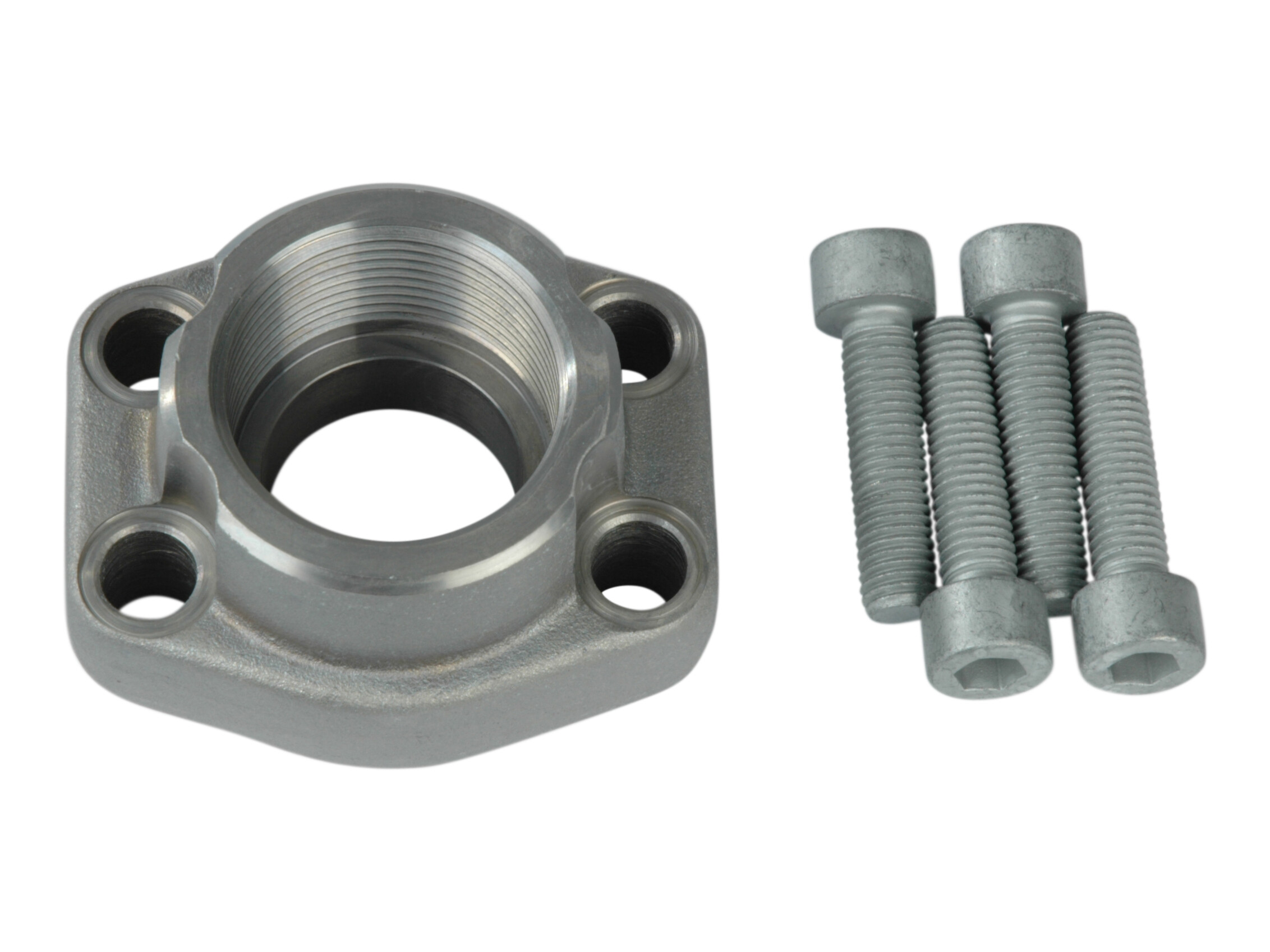

Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP - complete
Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP - complete
Varenummer:
AFS104GM
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
G 1.1/4 BSP
Angle
0 °
B
32 mm
Bolt dimension
M10x40 mm
Brand Name
Havit
C
58,7 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
79 mm
Diameter flange
50.8 mm
E
30,2 mm
F
68 mm
Flange
1.1/4 "
Flange SAE/DIN
3000 PSI
G
41 mm
H
21 mm
I
22 mm
L
11,5 mm
M
M10x40
Material
Steel
Number of bolts
4
O-ring
37,69X3,53 mm
Pressure max.
280 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Förpackningsstorlek
0 pcs
Streckkod
5704295921129
Bruttovikt
0,66 Kg
Nettovikt
0,66 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP - complete
