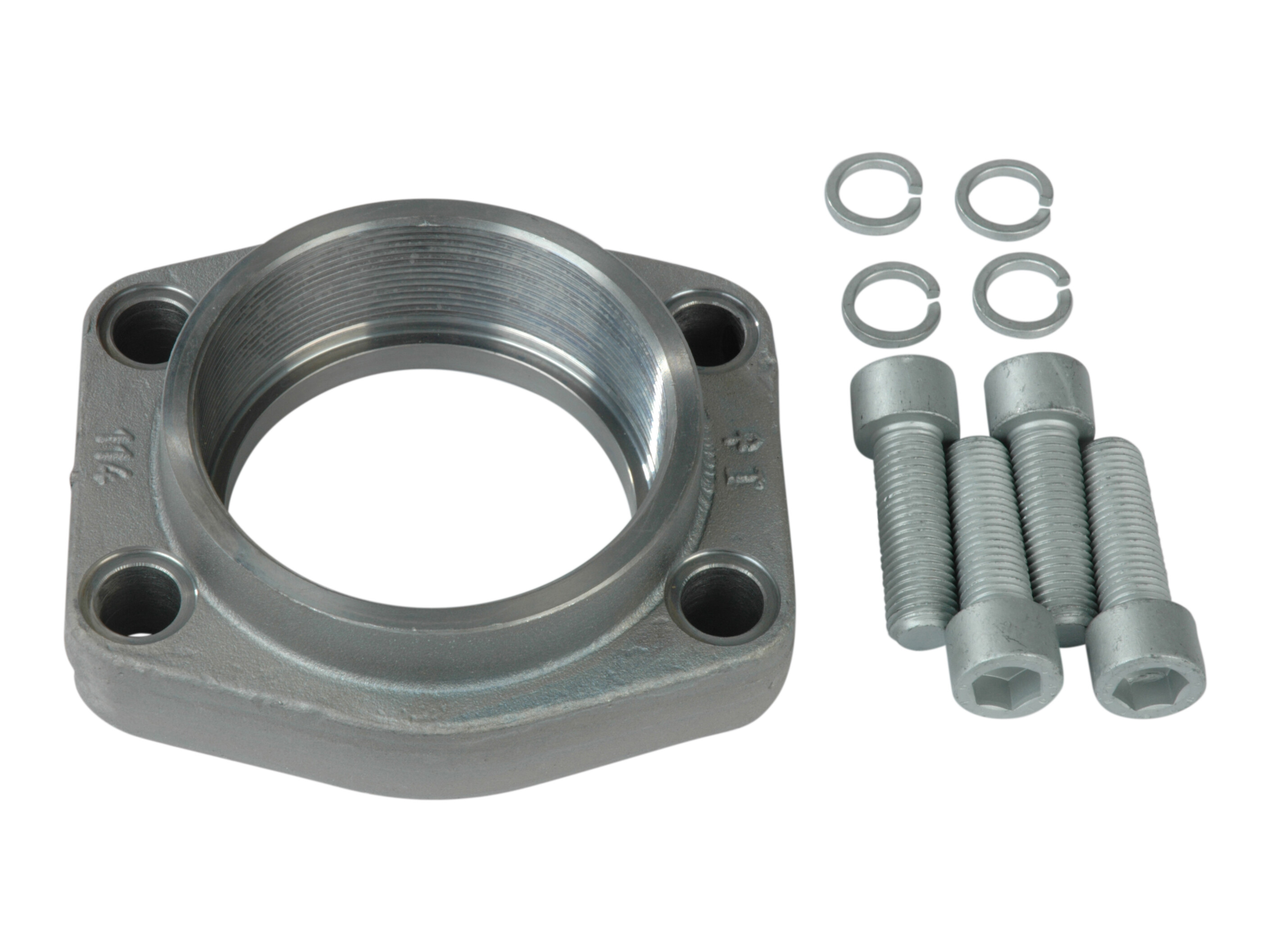

Threaded flange 4" SAE3000 x 4" BSP - complete

Gevindflange 4" SAE3000 x 4" BSP - komplet

Varenummer:

AFS116GM

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Spare parts (2)

O-ring 90S

Partnumber: 110.72X3.53S

Bolts (4) for SAE flanges - 10.9 ZiNi - UNC 5/8" x 2"

Partnumber: UNC58-2ZN

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M16x50 mm

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

127 mm

Dimension C

130.2 mm

Dimension E

77.8 mm

Flange

4 "

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

O-ring

110.72X3.53 mm

Pressure max.

35 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread inner

G 4 BSP

Package size

0 pcs

Barcode

5704295921303

Gross weight

2,78 Kg

Net weight

2,78 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Gevindflange 4" SAE3000 x 4" BSP - komplet
