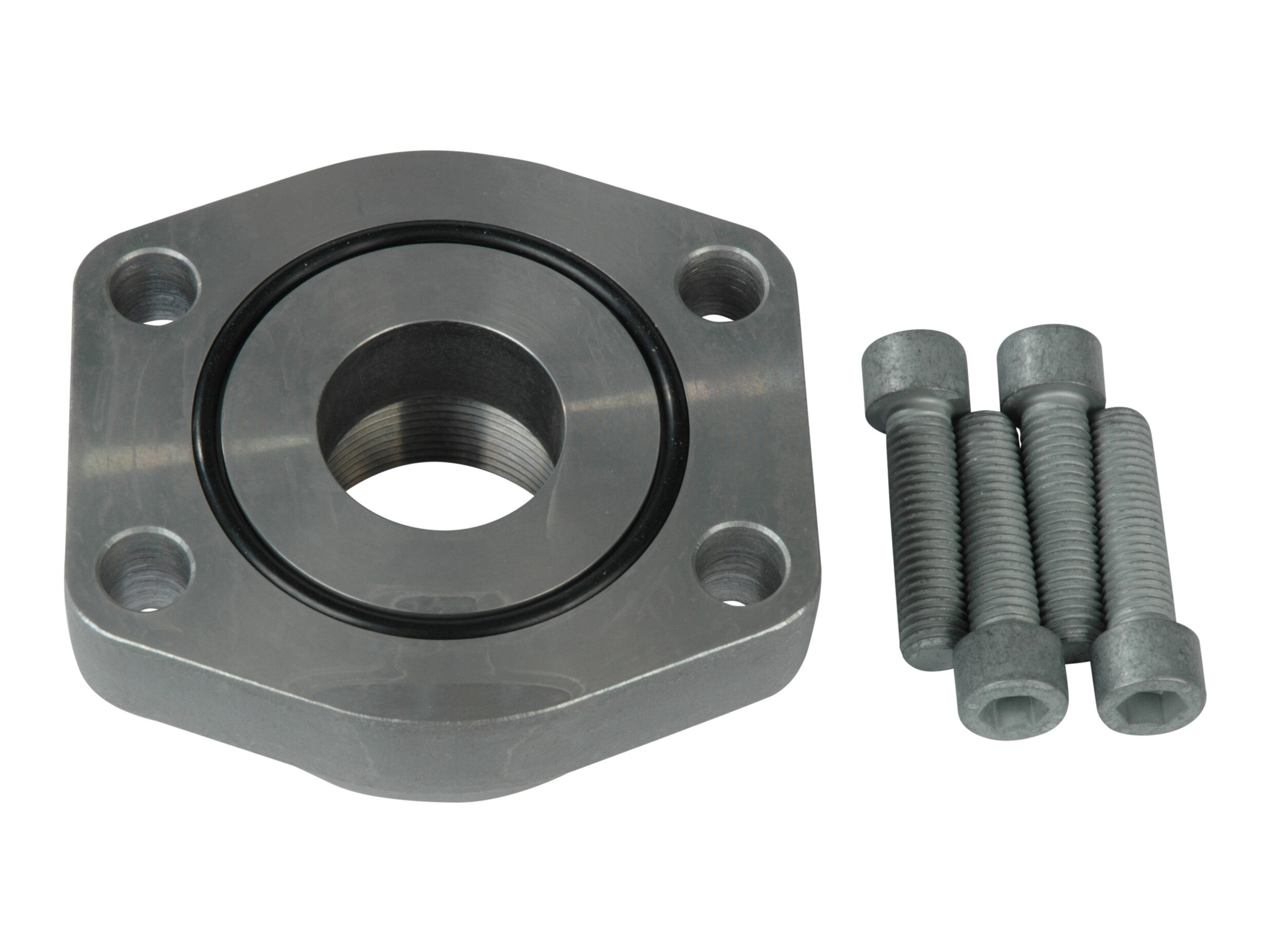

Threaded flange 2.1/2" SAE3000 x 1.1/2" BSP - complete

Threaded flange 2.1/2" SAE3000 x 1.1/2" BSP - complete

Gevindflange 2.1/2" SAE3000 x 1.1/2" BSP - komplet

Varenummer:

AFS110G-112M

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Reservedele (2)

O-ring 90S

Partnumber: 69.44X3.53S

UNC12-134ZN - Boltsæt (4) for SAE flanger - 10.9 ZiNi - UNC 1/2" x 1.3/4"

Partnumber: UNC12-134ZN

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M12x45 mm

Brand Name

Havit

88,9 mm

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

84.1 mm

50,8 mm

Flange

2.1/2 "

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

O-ring

69.44X3.53 mm

Pressure max.

175 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread inner

G 1.1/2 BSP

Package size

0 pcs

Barcode

5704334250043

Gross weight

2,13 Kg

Net weight

2,13 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Gevindflange 2.1/2" SAE3000 x 1.1/2" BSP - komplet
