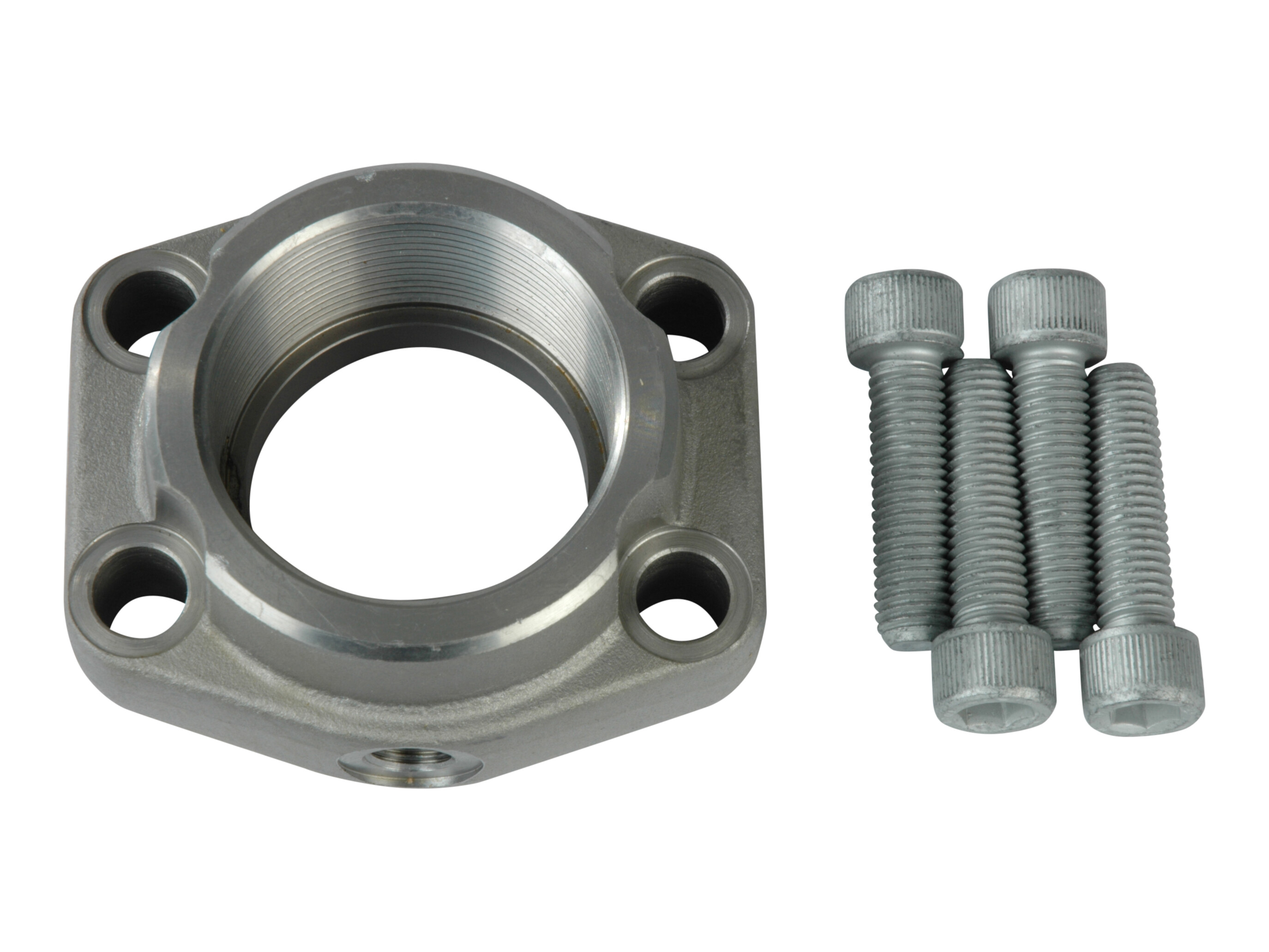

Threaded flange 2" SAE3000 x 2" BSP - 1/4" test
Threaded flange 2" SAE3000 x 2" BSP - 1/4" test
Partnumber:
AFS108G-G14M
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
G 2 BSP
Angle
0 °
B
51 mm
Bolt dimension
M12x45 mm
Brand Name
Havit
C
77,8 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
102 mm
Diameter flange
71.4 mm
E
42,9 mm
F
90 mm
Flange
2 "
Flange SAE/DIN
3000 PSI
G
45 mm
H
25 mm
I
30 mm
L
13,5 mm
M
M12x45
Material
Steel
Number of bolts
4
O-ring
56,75X3,53 mm
Pressure max.
210 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704295921204
Gross weight
1,17 Kg
Net weight
1,17 Kg
Country of origin
DEU
Intrastat code
73079100
