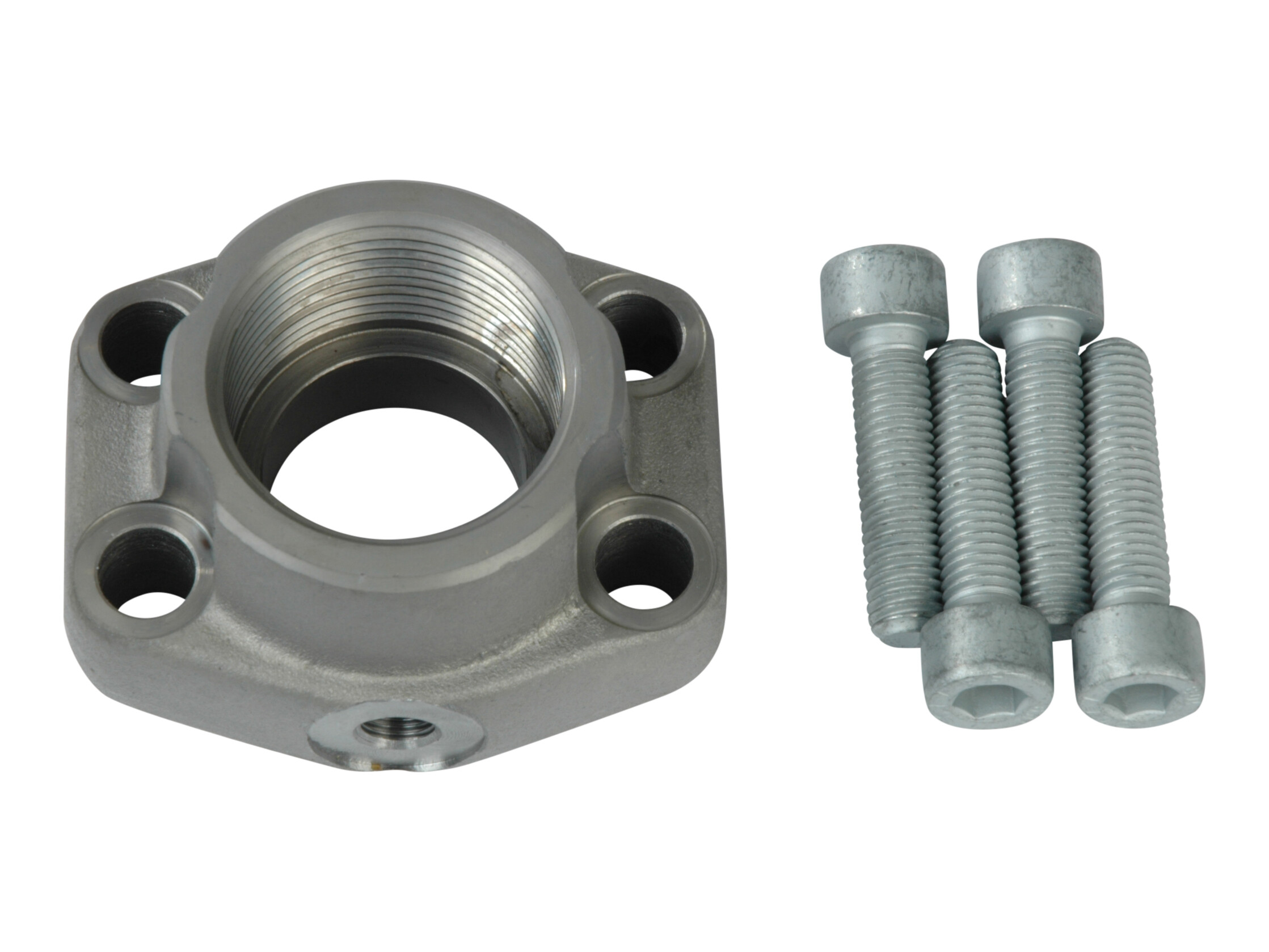

Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP - 1/8" test
Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP - 1/8" test
Partnumber:
AFS104G-G18M
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Bolt dimension
M10x40 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
50.8 mm
Dimension C
58.7 mm
Dimension E
30.2 mm
Flange
1.1/4 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
37.69X3.53 mm
Pressure max.
280 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1.1/4, G 1/8 BSP
Package size
0 pcs
Barcode
5704295988023
Gross weight
0,66 Kg
Net weight
0,66 Kg
Country of origin
DEU
Intrastat code
73079100
