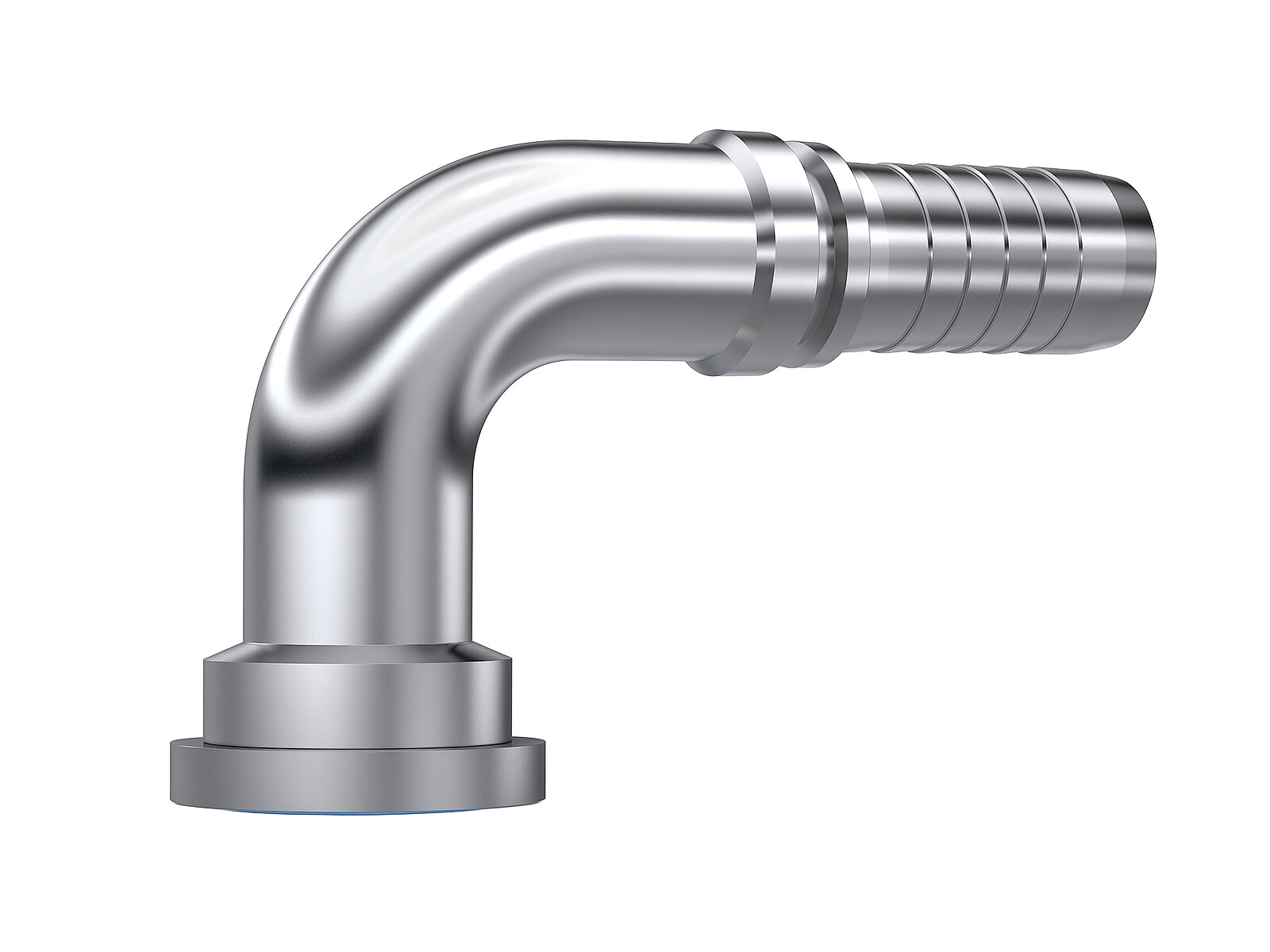

1/2" Indstik - 1/2" SAE3000 - 90° - AISI316

Anvendes i forbindelse med halvflanger.

Partnumber:

R0808PA90

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (4)

O-ring 90S

Partnumber: 18.64X3.53S

Splitflange 1/2" SAE3000 - Rustfri AISI316L

Partnumber: AFX301

Afdækning 1/2" SAE3000 flange

Partnumber: PFS308

Profil ring t.1/2" SAE-flange 17x25,5x2,85

Partnumber: WD1/2PH

Specifications
Dimensions and shipping

Byggehøjde

43 mm

Diameter flange

30.2 mm

Dimension L

72 mm

Dimension L1

29.5 mm

Dimension L2

42 mm

Flange

1/2 "

Flange SAE/DIN

3000 PSI

Materiale

Syrefast Stål

Materialekvalitet

1.4571 / AISI316Ti

Model kode

841830808

Mærke navn

Hydraspecma

O-ring

18,64X3,53 mm

Shore

Slangekoblingstype

Til løs kappe

Slangestørrelse

1/2 "

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Tryk maks.

350 bar

Vinkel

90 °

Package size

0 pcs

Barcode

5704295472621

Gross weight

0,12 Kg

Net weight

0,12 Kg

Country of origin

ESP

Intrastat code

73269098

Product information
Measure sketch

Anvendes i forbindelse med halvflanger.

Produkt datablad
