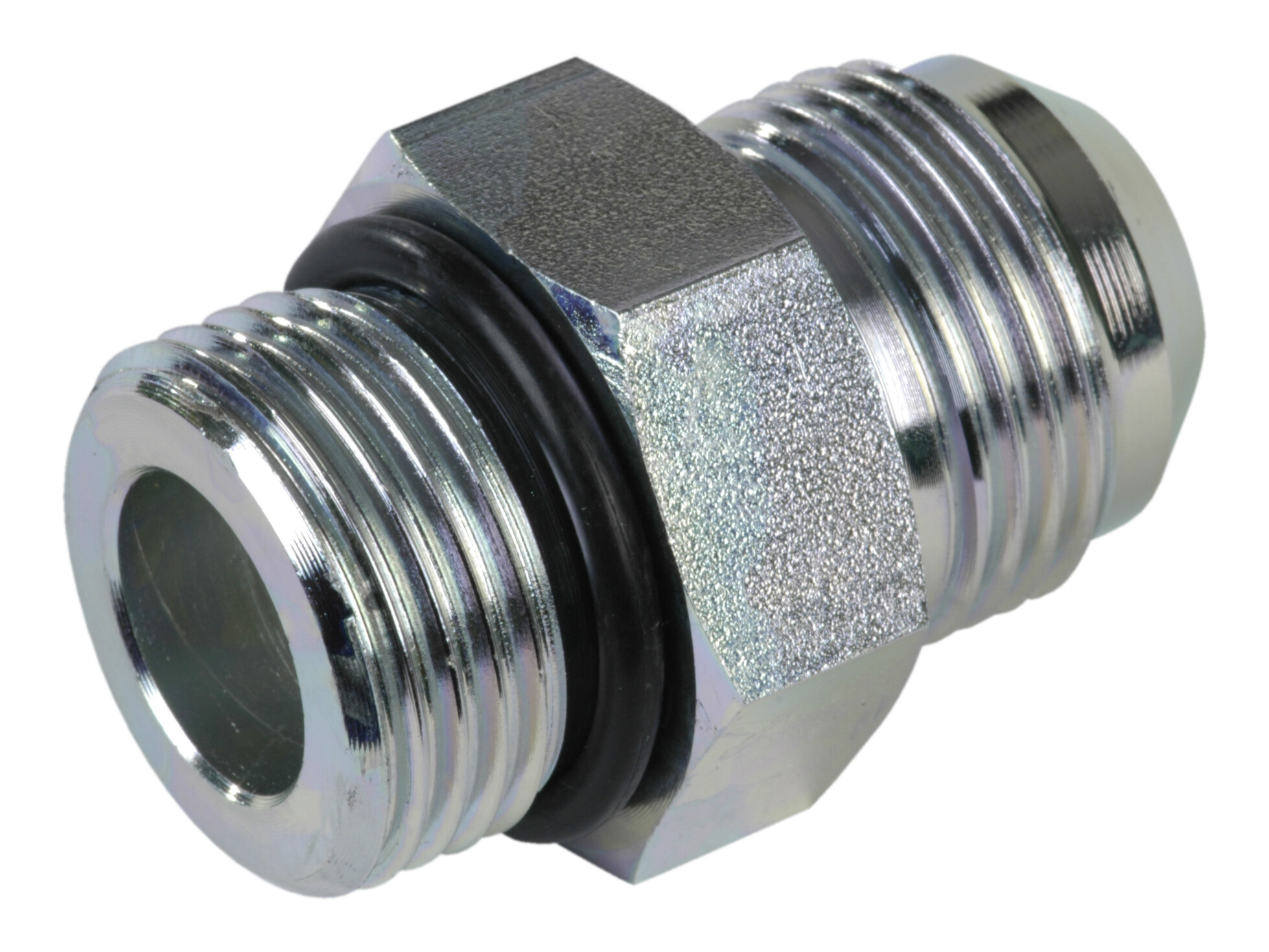

Indskruning 1.1/16-12 JIC udv x 1.1/16-12 UNF udv
Indskruning 1.1/16-12 JIC udv x 1.1/16-12 UNF udv
Partnumber:
M-20-1.1/16
Package size:
0 stk
Min. order quantity is:
1 stk
A
50 mm
Angle
0 °
B
22 mm
Brand Name
FOR
CH
32 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
15 mm
Diameter pipe
20 mm
F
1.1/16-12 UNF
J
1.1/16-12 JIC
Material
Stål
Pressure max.
300 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.1/16-12 JIC
Thread outer
1.1/16-12 UNF
Package size
0 stk
Barcode
5704334394945
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1.1/16-12 JIC udv x 1.1/16-12 UNF udv
Note: Opening 3D files requires a program that supports the file format
