Strypbackventil SUN T-5A

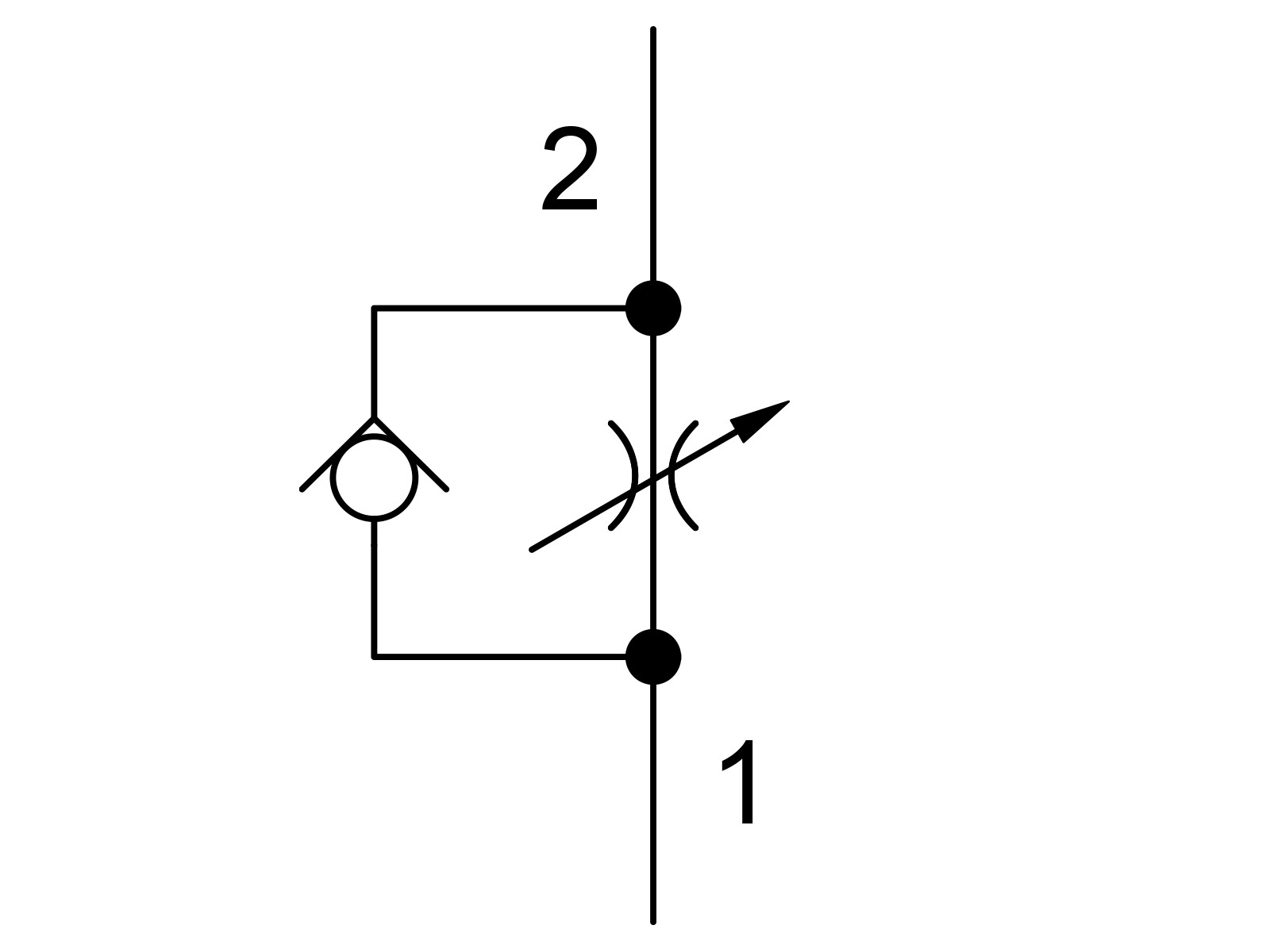

This needle valve with reverse-flow check has fully adjustable orifice used to regulate flow. It is infinitely adjustable from fully closed up to the maximum orifice diameter. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. The valve is not pressure compensated.

Partnumber:
NCEB-LAN

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Sun Hydraulics

Cavity
T-5A

Contamination level max.
19/17/14 - ISO 4406

Flow rate nominal LMin
45 lpm

Material
Steel

Oil viscocity recommended
2,8 - 380 cSt

Pressure compensated
No

Pressure max.
350 bar

Sealing material
NBR

Temperature max.
+110 °C

Temperature min.
-30 °C

Torque tightening
61 - 68 Nm

Valve type
Throttle/checkvalve
Package size
1 st

Barcode
241066

Gross weight
Kg

Net weight
Kg

Country of origin
usa

This needle valve with reverse-flow check has fully adjustable orifice used to regulate flow. It is infinitely adjustable from fully closed up to the maximum orifice diameter. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. The valve is not pressure compensated.
