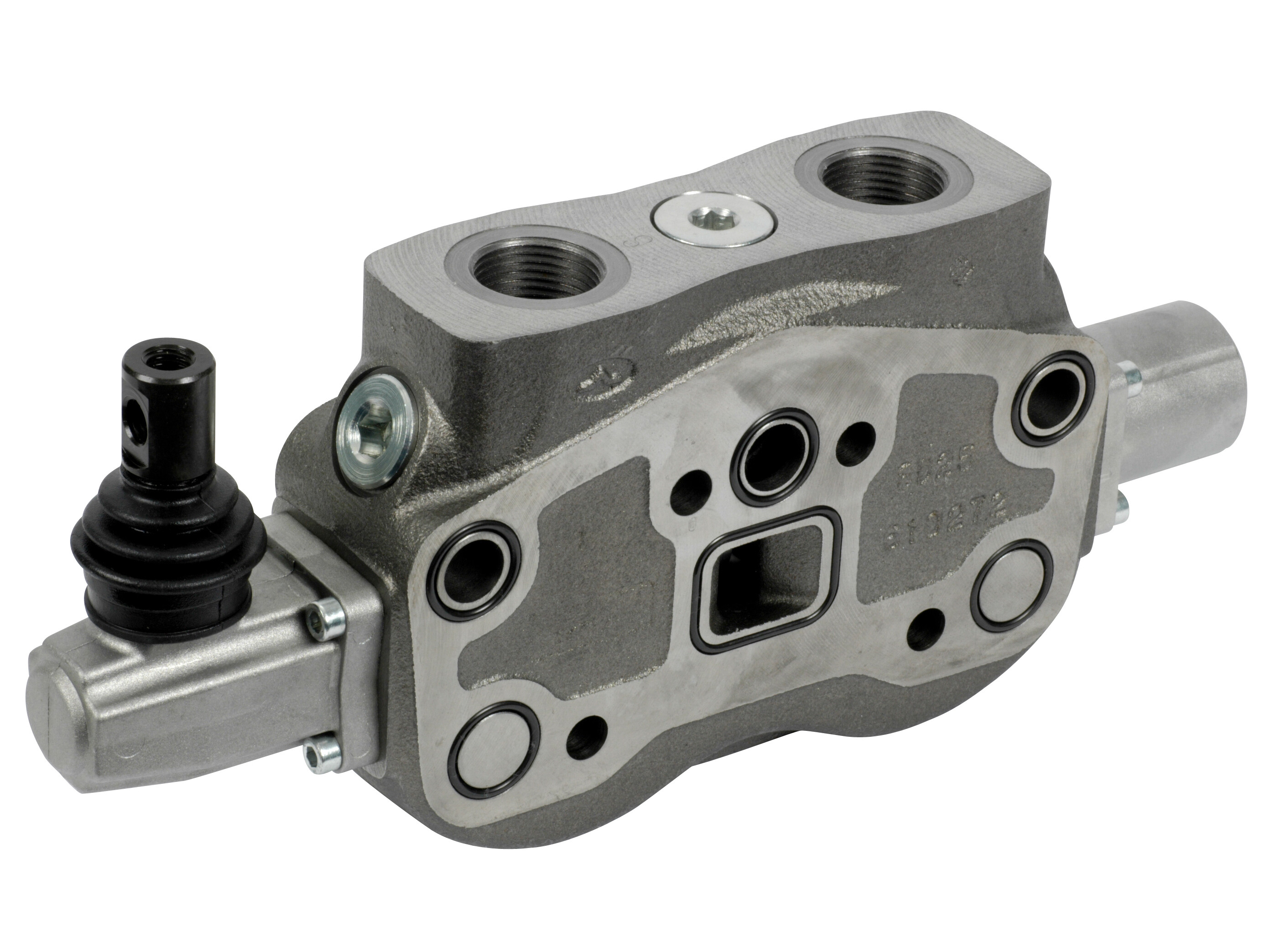

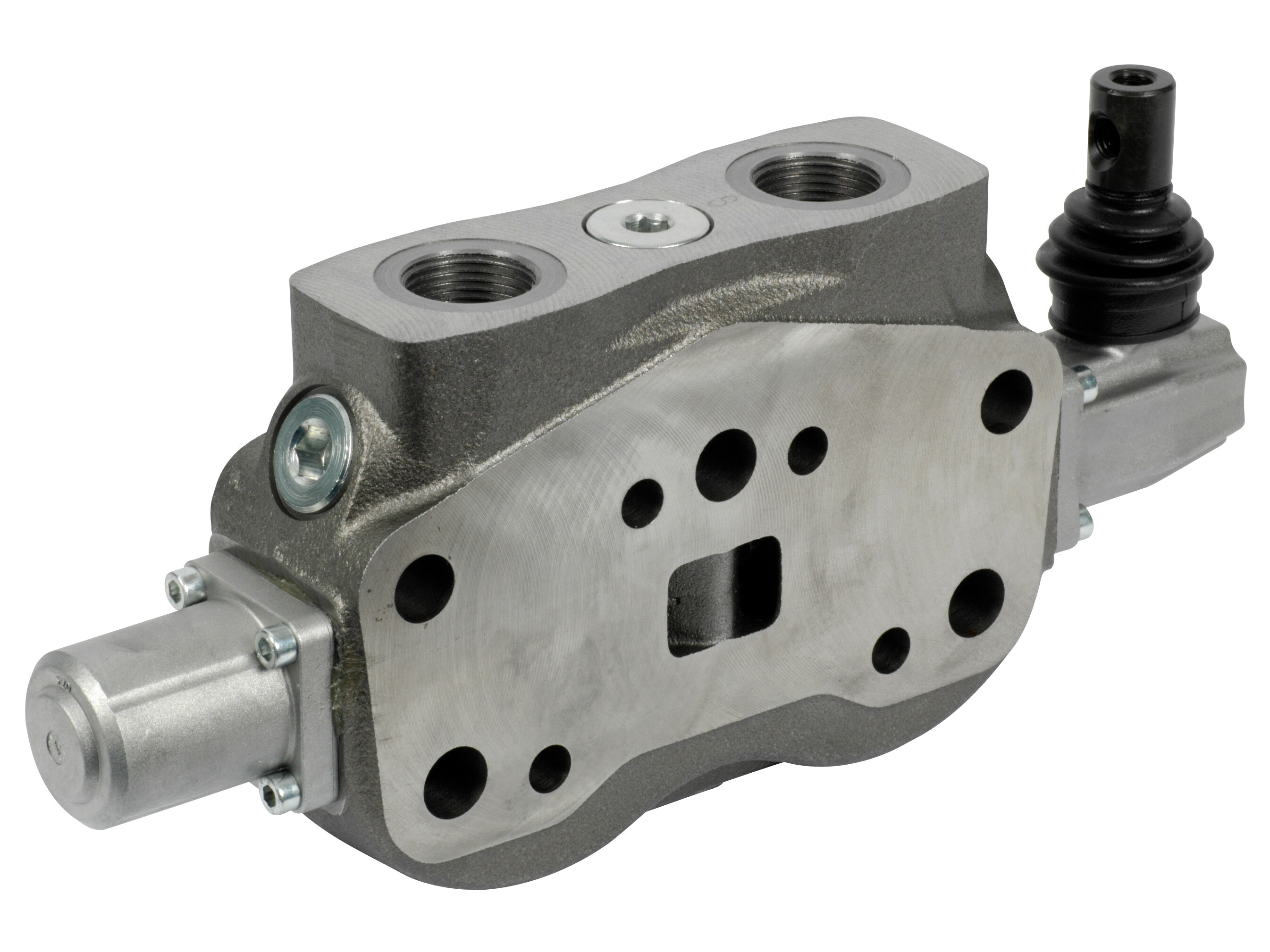

SD25/S-18L working section

Complete series-circuit SD25 valve section with: double acting spool, A+B closed in neutral position, spring centered.

Standard handlever. Must be ordered separately.

Partnumber:
617111001

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
240 lpm

Lever
Exclusive

Model code
SD25/S-18L

Oil viscocity recommended
12 - 400 cSt

Pressure max.
210 bar

Temperature ambient max.
+60 °C

Temperature ambient min.
-40 °C
Package size
1 st

Barcode
467722

Gross weight
11,43 Kg

Net weight
11,43 Kg

Country of origin
ITA

Intrastat code
84812010

Complete series-circuit SD25 valve section with: double acting spool, A+B closed in neutral position, spring centered.

Standard handlever. Must be ordered separately.
