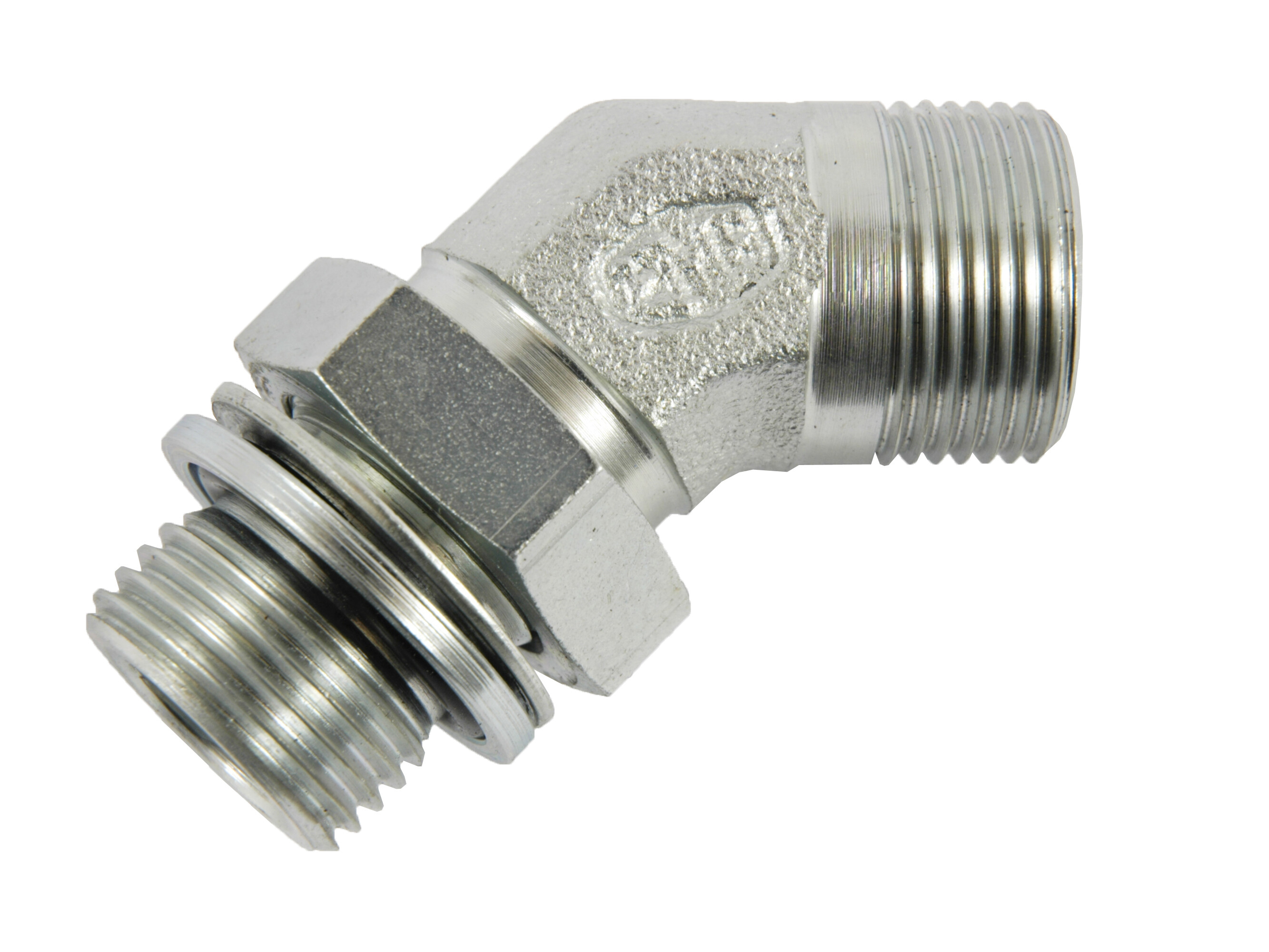

Elbow fitting 45° - L-series - MM male 24° x BSP male addjustable with counter nut adjustable

SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Thread outer metric
BFE08RL/OAX Stud elbow adjustable 45° - ø8L x 1/4" BSP 8 mm G 1/4 BSP 315 bar M14x1,5
BFE10RL/OAX Stud elbow adjustable 45° - ø10L x 1/4" BSP 10 mm G 1/4 BSP 315 bar M16x1,5
BFE12RL/OAX Stud elbow adjustable 45° - ø12L x 3/8" BSP 12 mm G 3/8 BSP 250 bar M18x1,5
BFE15RL/OAX Stud elbow adjustable 45° - ø15L x 1/2" BSP 15 mm G 1/2 BSP 250 bar M22x1,5
BFE18RL/OAX Stud elbow adjustable 45° - ø18L x 1/2" BSP 18 mm G 1/2 BSP 250 bar M26x1,5
BFE22RL/OAX Stud elbow adjustable 45° - ø22L x 3/4" BSP 22 mm G 3/4 BSP 160 bar M30x2
BFE28RL/OAX Stud elbow adjustable 45° - ø28L x 1" BSP 28 mm G 1 BSP 160 bar M36x2
FXVEE06LR18OK Stud elbow adjustable 45° - ø6L x 1/8" BSP 6 mm G 1/8 BSP 315 bar M12x1,5
FXVEE08LR14OK Stud elbow adjustable 45° - ø8L x 1/4" BSP 8 mm
FXVEE10LR14OK Stud elbow adjustable 45° - ø10L x 1/4" BSP 10 mm
FXVEE12LR38OK Stud elbow adjustable 45° - ø12L x 3/8" BSP 12 mm G 3/8 BSP 250 bar M18x1,5
FXVEE15LR12OK Stud elbow adjustable 45° - ø15L x 1/2" BSP 15 mm
FXVEE18LR12OK Stud elbow adjustable 45° - ø18L x 1/2" BSP 18 mm G 1/2 BSP 250 bar M26x1,5
FXVEE22LR34OK Stud elbow adjustable 45° - ø22L x 3/4" BSP 22 mm G 3/4 BSP 160 bar M30x2
FXVEE28LR1OK Stud elbow adjustable 45° - ø28L x 1" BSP 28 mm
FXVEE35LR114OK Stud elbow adjustable 45° - ø35L x 1.1/4" BSP 35 mm G 1.1/4 BSP 160 bar M45x2
FXVEE42LR112OK Stud elbow adjustable 45° - ø42L x 1.1/2" BSP 42 mm G 1.1/2 BSP 160 bar M52x2
Angle
45

Material
Steel

Safety factor
4

Sealing material
NBR

Series
L

Temperature max.
+100

Temperature min.
-35
